Modern Flames SPS-50B Instruction Manual

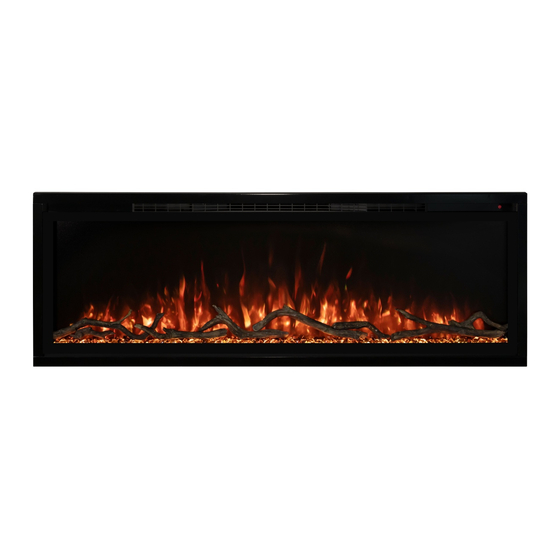

Spectrum slimline wall mount/recessed electric fireplace
Hide thumbs
Table of Contents

Advertisement

Quick Links

SPECTRUM SLIMLINE WALL MOUNT/RECESSED ELECTRIC FIREPLACE
Model# :
WARNING
CAUTION
AFFIX SERIAL NUMBER LABEL HERE
FOR FUTURE REFERENCE
SPS-50B
OWNER'S MANUAL
AC 120V 60Hz 1465W (5000BTUs)
Read and understand this entire owner's manual, including all safety
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
product away, make sure this manual accompanies this product.
SPS-60B
SPS-74B
SPS-100B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPS-50B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Modern Flames SPS-50B

Summary of Contents for Modern Flames SPS-50B

  • Page 1 SPECTRUM SLIMLINE WALL MOUNT/RECESSED ELECTRIC FIREPLACE Model# : SPS-50B SPS-60B SPS-74B SPS-100B OWNER’S MANUAL AC 120V 60Hz 1465W (5000BTUs) Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could WARNING result in fire, electric shock, or serious personal injury.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION! WARNING  Read all instructions before installing or using this heater.  This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater, and keep them away from the sides and rear.
  • Page 3  NEVER leave this heater unattended. ALWAYS unplug this heater when not in use.  ALWAYS store this heater in a dry location. NEVER use the fireplace if it has become wet.  NEVER plug this heater into an outlet that is old, cracked, or has any loose wires or connections.

  • Page 4: Parts And Hardware

    For wall recessed purpose Specification and Dimension PRODUCT DIMENSIONS Model Number 49-3/4" 17" 4- 5/8" 48- 7/16" 15- 5/8" 4" 46" 12" SPS-50B [1262mm] [430mm] [117mm] [1230mm] [397mm] [101mm] [1168mm] [306mm] 59-3/4" 17" 4- 5/8" 58- 7/16" 15- 5/8" 4"...

  • Page 5: Installation And Assembly

    Installation and Assembly Your appliance is a wall-mounted, recessed, and/or mantel installed appliance. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic areas. NOTE: Follow all National and local electrical codes. MINIMUM CLEARANCE TO COMBUSTIBLES Measurements are taken from the glass front.
  • Page 6 Front glass removal / installation A. With one hand on the front glass to prevent it from falling, remove the two screws (1 per side) from the side of the appliance (Fig. 1-1). Set the screws aside. B. Carefully lift the front glass up and away from the appliance (Fig. 1-2 ). Place it face down on a soft, non-abrasive surface.
  • Page 7 B. Measure the appliance and create a rough-in frame with electrical (see below “framing”). C. Remove the front glass (see “front glass removal / installation” section). D. Hold the appliance up to ensure it will fit into the framing. Framing Hole Size Model Number SPS-50B 48- 3/4" [1238mm] 16" [406mm] 3-7/8”(98mm) SPS-60B 58- 3/4"...
  • Page 8 Fully recessed installation A. Remove power cord and complete hardwiring (see “hardwiring installation” section). Mark location for the screws according to the dimensions as below. (Figure 2-1) Figure 2-1 C. Fix the two metal brackets (1per side), with 4 screws (supplied) through wood stud. (Figure 2-2) Wood Stud Figure 2-2...
  • Page 9 D. Remove the four screws (2 per side) from the side of the appliance and remove the brackets (Fig. 2-3). Set the screw/brackets aside. Figure 2-3 E. Insert the appliance into the rough-in frame and then secure it by installing 4 screws and two brackets (supplied) through the side holes (Fig.

  • Page 10: Wall Mounted Installation

    E. With the wall mounting bracket installed have two people lift the appliance up and insert the two hooks on the bracket into the two slots on the back of the appliance. F. Check the appliance for stability ensuring that the bracket will not pull free from the wall SPS-50B Wall Bracket Illustrated...
  • Page 11 SPS-60/74/100B Wall Bracket Illustrated “L” Shape bracket installation A.Remove the silver screw at the bottom of the appliance. (Fig 3-1). Set the screw aside. Fig 3-1 Fig 3-2 B.Using the screw previously removed, attached the L-bracket (supplied) to the bottom of the fireplace box.(Fig 3-2) Fig 3-3 C.Install the plastic anchor into the dry wall, then install the screw B (supplied) into the...

  • Page 12: Hard Wiring Installation

    Hard wiring installation WARNING TURN OFF THE APPLIANCE COMPLETELY AND LET COOL BEFORE SERVICING. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE. HARD WIRING CONNECTION If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection, and wire the appliance directly to the household wiring.
  • Page 13 Driftwood Logs and Glacier Crystal installation Glass front must be removed and the appliance must be mounted in its final location before the driftwood logs and glacier crystals are installed. B. Photo below shows the recommended log placement, but the logs may be arranged to the customers liking.

  • Page 14: Operation

    Operation Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death. Power Plug the power cord into a dedicated 110~120 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3).
  • Page 15 FLAME button: Changes flame color. 1. Press once: Flame color illuminates. NOTE: color effect stays on until power 2. Press again until desired color is button is turned off. reached. In total, ten colors for flame and one fade mode From 01-02-03-04-05-06- NOTE: this fireplace has memory function FLAME 07-08-09-10-11.
  • Page 16 Remote Control Operation BUTTON FUNCTION ACTION & INDICATION ON: Enables control panel functions and 1. Press once: Indicator light turns on. remote control. Turns on flame. Power turns on. All functions enabled. OFF: Disables control panel functions and 2. Press again. Flame turns off. Unit goes POWER remote control.
  • Page 17 1. Press once: Touch panel indicator becomes active. 2. Press again until desired temperature is reached. Digital display shows settings 0-10. Table below shows corresponding temperatures: TEMP NOTE: Press the button for 5 seconds to switch between °C and °F MEDIA BED button: Turns on media bed and changes color.

  • Page 18: Care And Maintenance

    NEVER dispose of batteries in fire. Failure to observe this precaution may result in an explosion. Dispose of batteries at your local hazardous material processing center. Care and Maintenance Cleaning ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace.
  • Page 19 DO NOT RETURN TO STORE! CALL US FIRST For immediate help with installation, product information or if your product arrives damaged, please call our toll free number at: 1-877-246-9353 (Monday - Friday, 8:00AM - 5:00PM, AZ Mountain Time) Or email us at: customerservice@modernflames.com OUR STAFF IS READY TO PROVIDE ASSISTANCE...
