A qualified electrician must wire this fireplace to a dedicated 220~240 volt, 13 amp, circuit.
NOTE: A dedicated 13 Amp (EU) or 10 Amp (AU/NZ) breaker is required.
The appliance must be electrically connected and grounded in accordance with local codes.
220-240 Volt Power
Note:
There are 3 wires from the appliance junction box: white (neutral), black (power L1), and green/bare (ground)
that are connected to 220-240V power source (circuit breaker panel).
Ensure power from the circuit breaker is off.
Remove the 2 securing screws from the junction box cover plate, located on the top left-hand, back-
side of the appliance (Fig. 5-1).
From the power supply wire, connect the yellow/green/bare copper wire to ground (G), the light blue
wire to neutral (N), and the brown wire to Line1 (L1) (Fig. 5-2).
Resecure the junction box cover plate using the 2 screws previously removed.

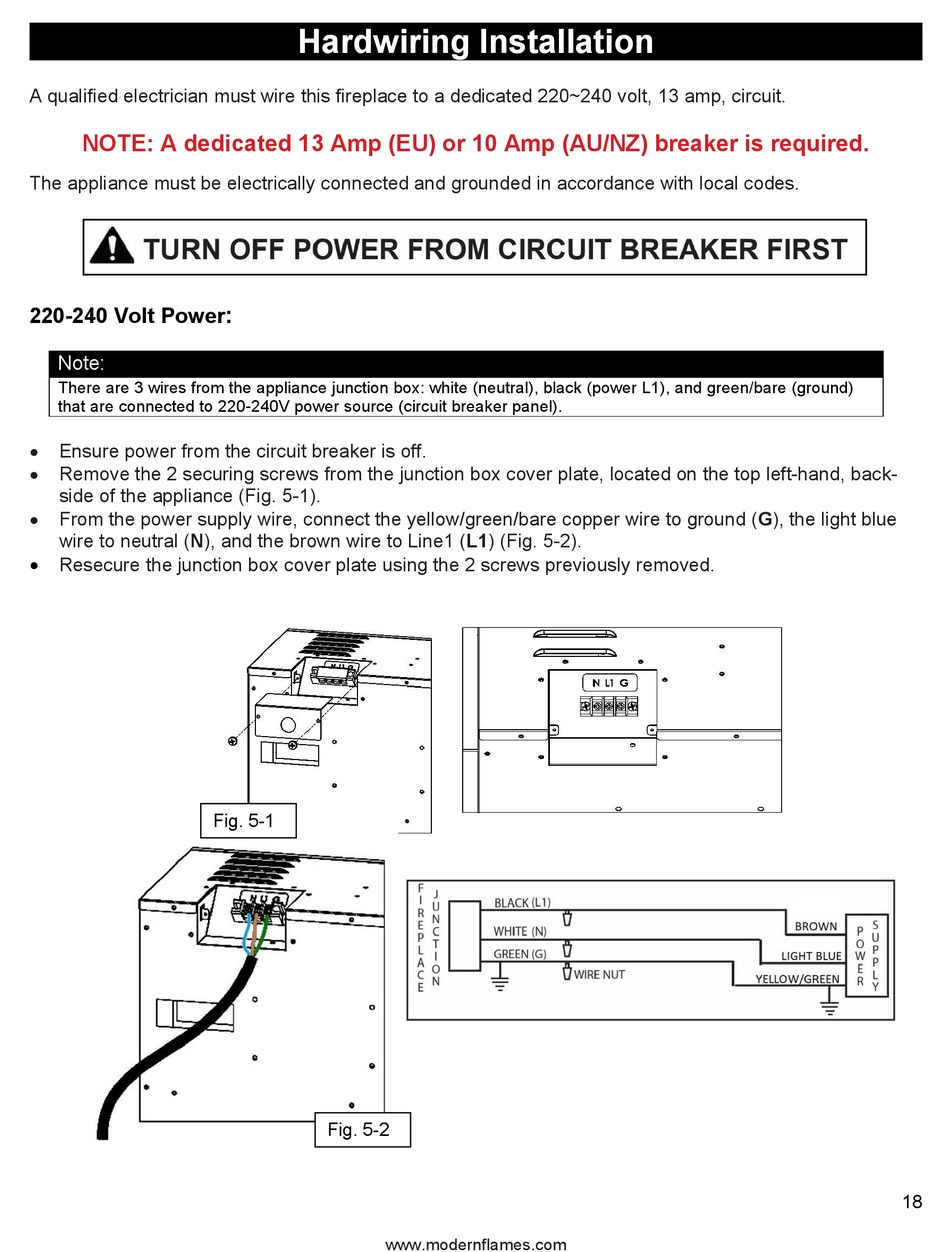

Hardwiring Installation
:
Fig. 5-1
Fig. 5-2
