Modern Flames OR30-MULTI-INT Owner's Manual page 16

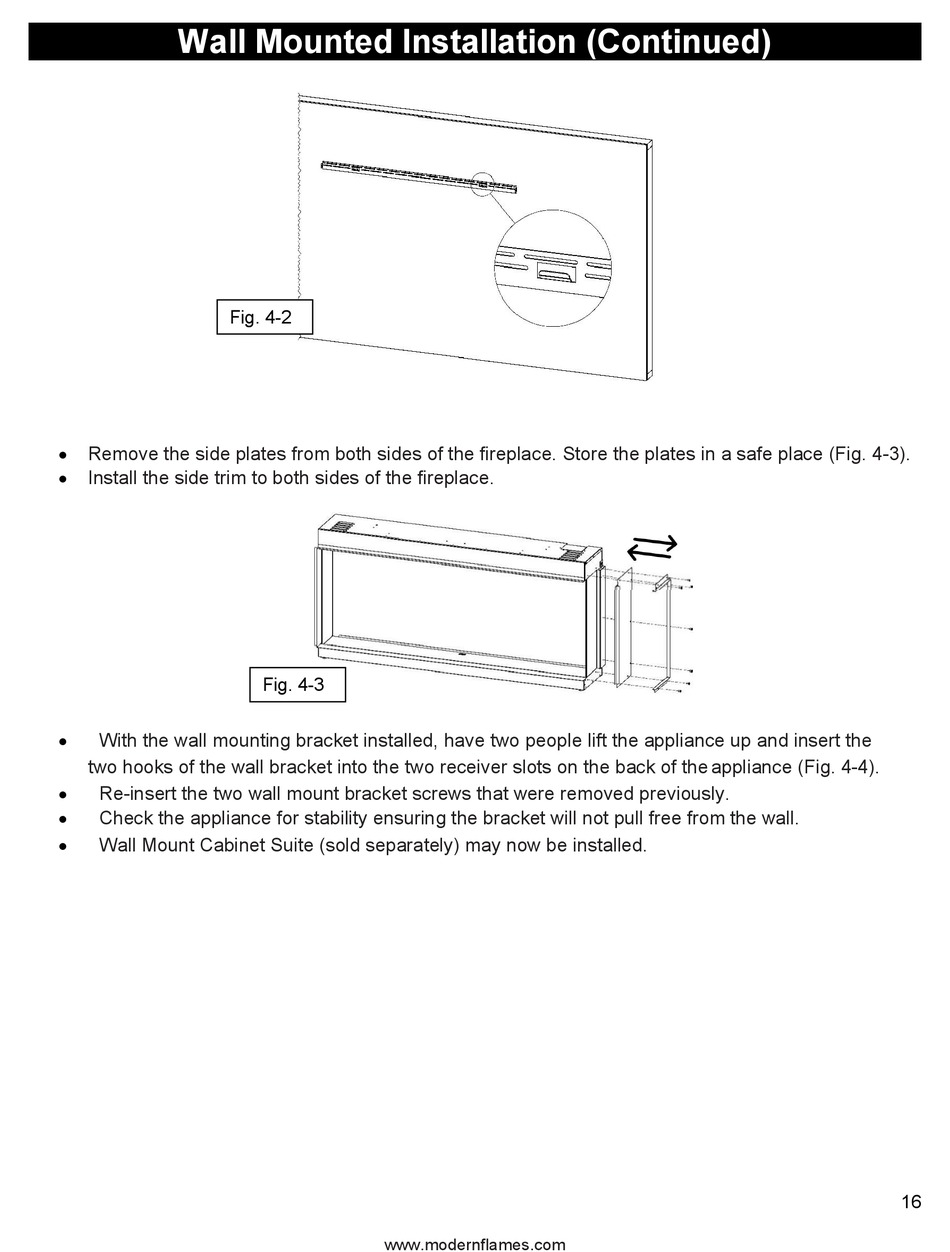

Wall Mounted Installation (Continued)
Fig. 4-2
Remove the side plates from both sides of the fireplace. Store the plates in a safe place (Fig. 4-3).

Install the side trim to both sides of the fireplace.

 With the wall mounting bracket installed, have two people lift the appliance up and insert the
two hooks of the wall bracket into the two receiver slots on the back of the appliance (Fig. 4-4).
 Re-insert the two wall mount bracket screws that were removed previously.
Check the appliance for stability ensuring the bracket will not pull free from the wall.

Wall Mount Cabinet Suite (sold separately) may now be installed.

Fig. 4-3
www.modernflames.com
16
