Summary of Contents for Modern Flames AL45CLX

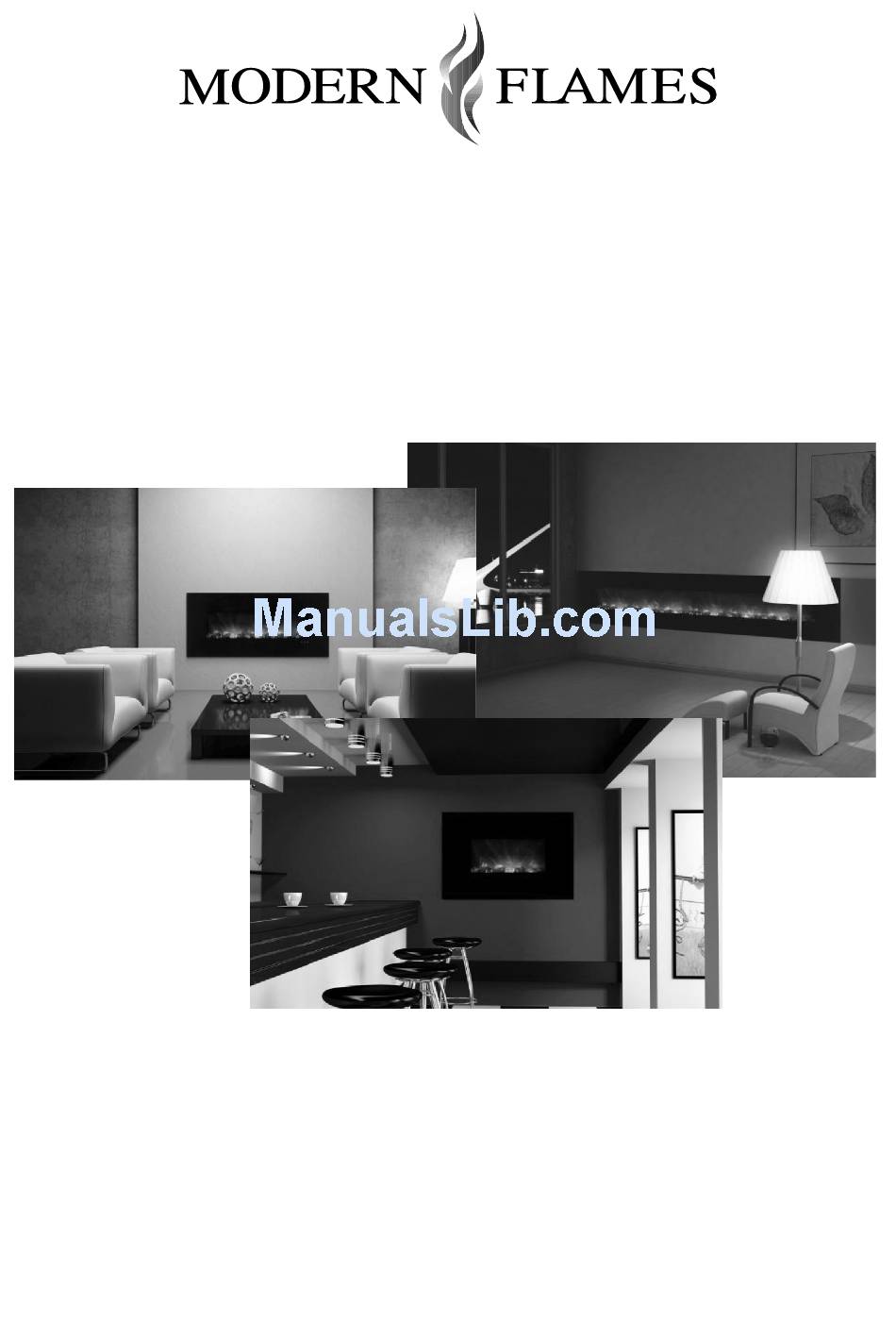

- Page 1 Ambiance CLX Electric Series AL45CLX • AL60CLX • AL80CLX • AL100CLX • AL144CLX INSTALLATION/SERVICE INSTRUCTIONS FOR USE IN UNITED STATES AND CANDA...
- Page 2 Read these instructions completely before beginning installation. Failure to follow them could cause a heater malfunction resulting in serious injury and/or property damage. WARNING: All electric heaters have hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are or are stored. This fireplace meets the construction and safety standards of H.U.D.
-
Page 3: Table Of Contents
USER INSTRUCTIONS TABLE OF CONTENTS Important Instructions ........3 Operation ........... 10 Power Data ..........4 Service Parts ..........12 Product Dimensions ........4 Frequently Asked Questions ...... 13 Box Contents ..........5 Troubleshooting ......... 14 Unpacking and Testing ........ 6 Cleaning and Maintenance Instructions .. -
Page 4: Power Data
USER INSTRUCTIONS IMPORTANT INSTRUCTIONS the heater off and inspect for any objects on locations. Never locate heater where it may or adjacent to the heater that may have fall into a bathtub or other water container. blocked the airflow or otherwise caused high 14. -
Page 5: Box Contents
USER INSTRUCTIONS Model Viewing Area Face Dimensions Firebox Dimensions AL45CLX 27” W x 10” H 45” W x 25 1/2” H 29 1/4” W x 19 1/4” H x 5 1/2” D AL60CLX 42” W x 10” H 60” W x 25 1/2” H 44 1/4”... -
Page 6: Unpacking And Testing
USER INSTRUCTIONS UNPACKING AND TESTING This heater is for use on 120 volts. The cord has a plug as shown at A. An adapter as shown at C is available for connecting three- blade grounding-type plugs to two-slot recep- tacles. The green grounding lug extending from the adapter must be connected to a per- manent ground such as a properly grounded outlet box. -
Page 7: Installation
INSTALLATION INSTALLATION WARNING - RISK OF FIRE! WARNING: If the information in these in- The power cord must not be pinched or structions is not followed exactly, a fire against a sharp edge. Secure cord to or explosion may result causing property avoid tripping or snagging to reduce the damage, personal injury or death. - Page 8 Fascia will cover the plug and outlet. Power cord 4. Hang the face on the fire unit. Make certain AL45CLX 30” W x 19 3/4” H x 4” D that the hooks from the on the backside of the AL60CLX 45”...
- Page 9 Use the chart below to see proper distance between the screws used to hold the mount- ing bracket. Power cord AL45CLX 27 3/4 inches AL60CLX 29 3/4 inches AL80CLX 49 3/4 inches 5. Hang the glass face on the fire unit. Make...
-
Page 10: Operation
OPERATION OPERATION On the bottom of the unit is a main power switch. Switch this to the on position to begin using the fireplace. Directly below the flame, on the right hand side are 3 small LED status lights, as well as function controls and a digital temperature readout. - Page 11 OPERATION Remote operation: Power To turn on the remote control, long press the Power button until the display turns on Home (long pressing the Power button while the remote is on will turn off the remote). Battery Indicator Powering on the remote will bring you to the home screen (pictured on the right).
-
Page 12: Service Parts
MAINTENANCE AL CLX SERVICE PARTS ITEM PHOTO COMMENTS PRINTED CIRCUIT BOARD CONTROLS LOW MFPCB1 VOLTAGE AND HIGH VOLTAGE FUNCTIONS MFTC2 LCD TOUCH CONTROL MFTTC2 LCD TEMPERATURE TOUCH CONTROL MFRR1 REMOTE CONTROL IR RECEIVER MF12VT1 TRANSFORMER MFHF12015 HEATER FAN 120 V 1500 WATTS MFPHF AL HEATER 120 V 1500 WATTS MFSM120... -
Page 13: Frequently Asked Questions
MAINTENANCE AL45WMB WALL MOUNT BRACKET AL45 AL60WMB WALL MOUNT BRACKET AL60 AL80WMB WALL MOUNT BRACKET AL80 AL100WMB WALL MOUNT BRACKET AL100 AL144WMB WALL MOUNT BRACKET AL144 ALGLS45 GLASS FACE AL45 ALGLS60 GLASS FACE AL60 ALGLS80 GLASS FACE AL80 ALGLS100 GLASS FACE AL100 ALGLS144 GLASS FACE AL144 FREQUENTLY ASKED QUESTIONS... -
Page 14: Troubleshooting
MAINTENANCE A. 1/2” or 5/8”. Q. How often do the batteries in the remote need to be replaced? A. Annually, possibly more with heavy use. Q. Is there a remote receiver in the fireplace that requires batteries? A. No, only the actual remote requires batteries. The rest of the fireplace runs entirely off of the main power supply. - Page 15 MAINTENANCE PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION A. Fireplace is not plugged in to an A. Check plug electrical outlet B. Breaker tripped or outlet has no B. Reset breaker, test outlet for power power C. Turn main power switch to the C.
-
Page 16: Cleaning And Maintenance Instructions
MAINTENANCE CLEANING AND MAINTENANCE INSTRUCTIONS There is very little maintenance involved with your electric fireplace. Please follow the few points be- low: On a semi-annual basis unplug the machine from it’s power source, wait for the heating element to cool and dust the fire unit with a dry cloth. Be careful not to brush any wires that may be ex- posed as you do this. - Page 17 MAINTENANCE NOTES...
- Page 18 MAINTENANCE NOTES...
- Page 19 MAINTENANCE NOTES...
- Page 20 © 2015 www.modernflames.com Please dispose of properly.
