In addition, the Teldat M2 router family is equipped with two status LEDs
LEDs
LED
PWR
WLAN

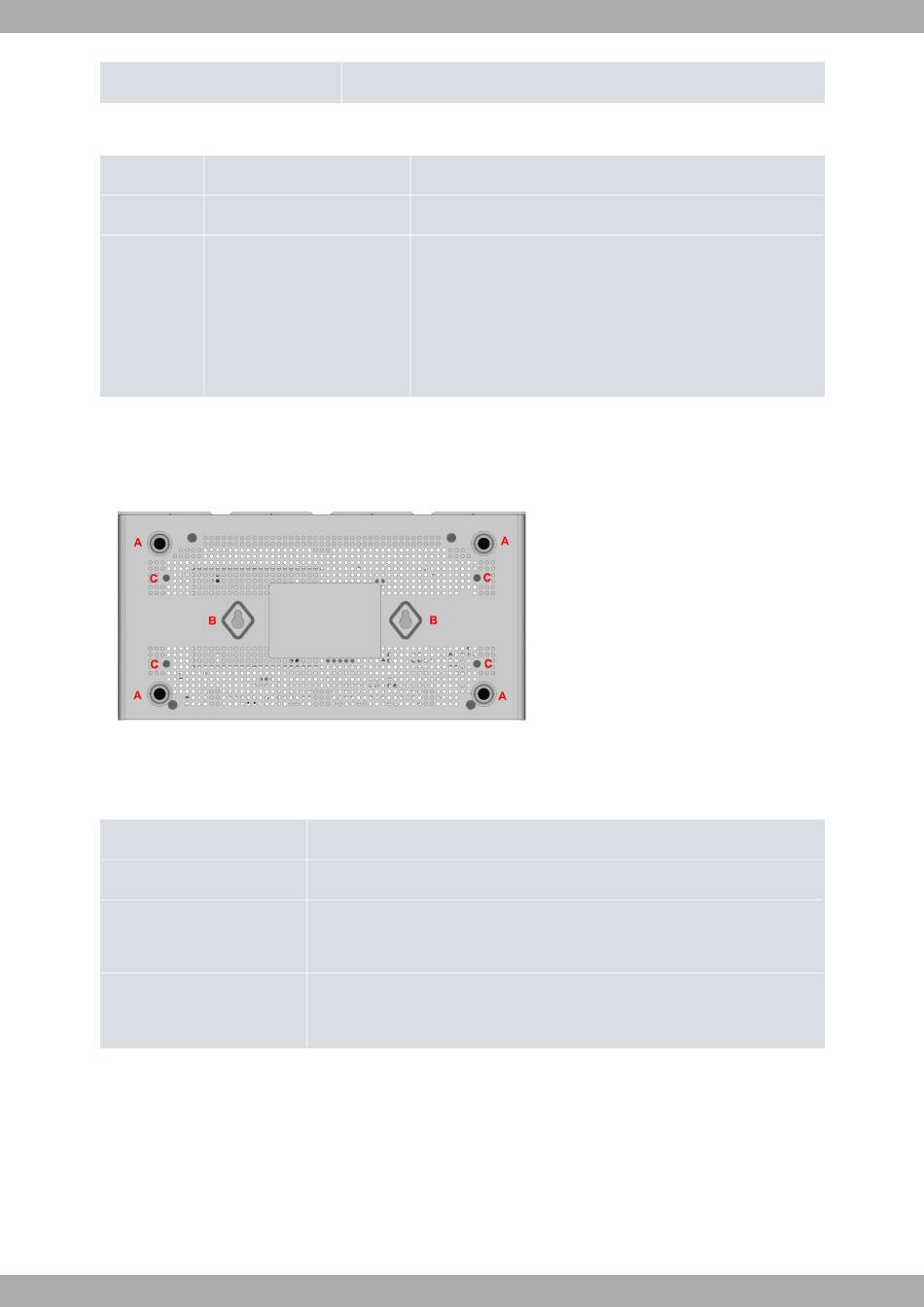

3.1.2 Underside panel

The following elements can be found on the underside panel:
Underside panel
Fig. 6:
The following table contains details on the relevant elements found on the underside panel.
Underside panel elements table
Item
A
B
C

3.2 Mounting an anti-theft security cable

Teldat M2router family has been equipped with a standard Kensington security slot to which a security cable can be
attached. The T-bar lock of the security cable allows the device to be attached to an anchor point, thus preventing
potential thefts.
The security slot is located on the front panel of the housing, as shown in the following figure:
Teldat M2/M2L
The interface is either unavailable, not installed or not registered.
Status
Monochrome green
Tricolor
Description
Rubber feet.
Slots for wall mounting.
For further information, please see
Holes for rack mounting.
For further information, please see
Description
Green -> Device powered.
Green -> Some client connected and registered in one of two ra-
dios. Blinking: Transferring data.
Amber -> Interface enabled.
Red -> Interface down.
Off -> Interface off or disabled.
Wall mounting
19'' Rack installation
3 Components and Power Supply
on page 8.
on page 9.
7
