3 Components and Power Supply
None

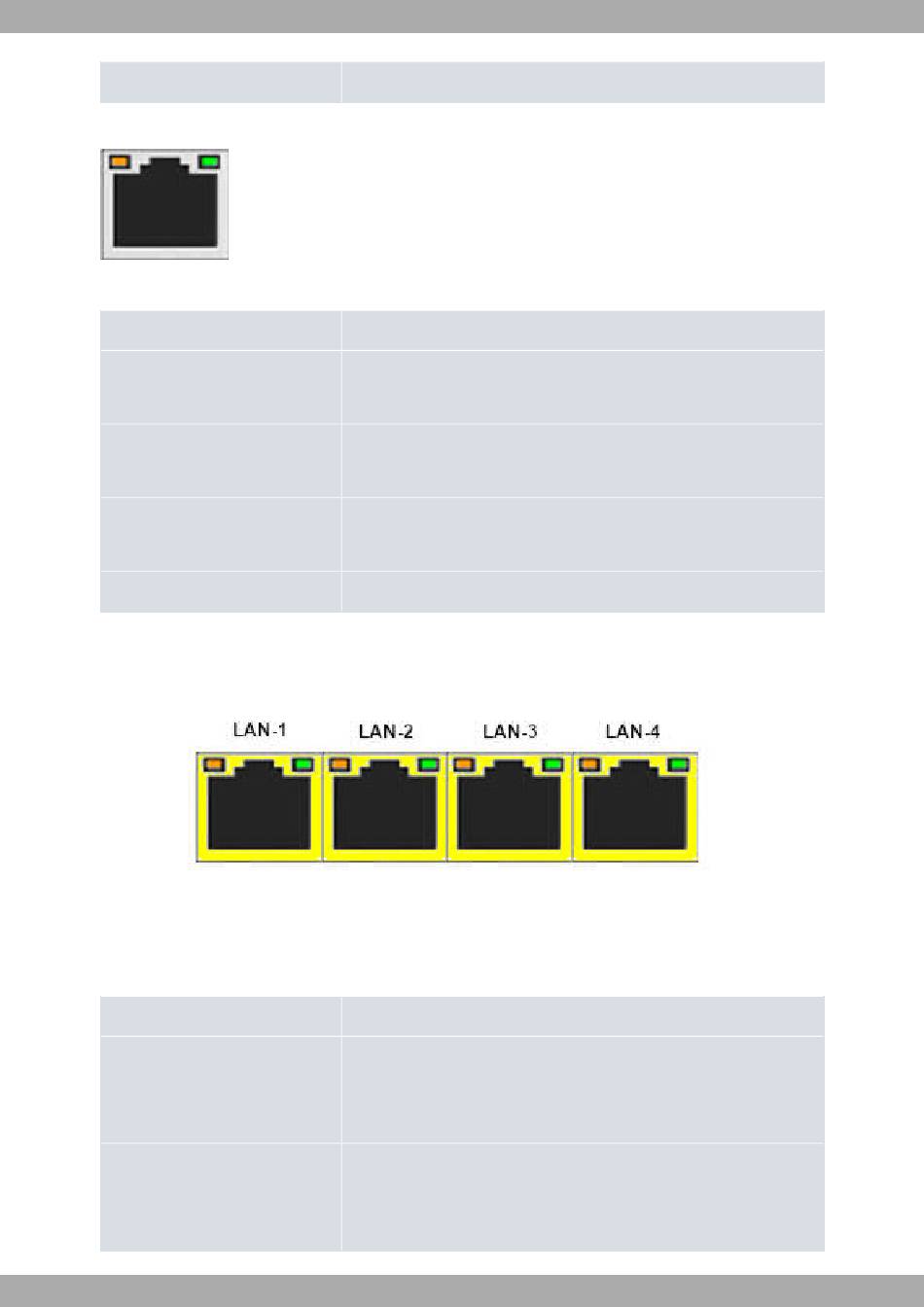

The following figure shows the router's WAN-2 LED indicators:
WAN-2 LEDs
Fig. 4:
WAN-2 2.5G Ethernet LED indicators
LED
Yellow
Yellow+Green
Green
None
The following figure shows the router's Ethernet switch LED indicators:
Switch LEDs
Fig. 5:
Switch LED indicators
LED
Yellow
Yellow + Green
6
Interface is either unavailable, not installed, or not registered.
Description
- Steady: 10/100M link established.
- Blinking: Transferring data.
- Steady: 1000M link established.
- Blinking: Transferring data
- Steady: 2.5G link established.
- Blinking: Transferring data
Interface is either unavailable, not installed, or not registered.
Description
Connected to 10/100 M:
- Steady: Not transferring data.
- Blinking: Transferring data.
Connected to 1000 M:
- Steady: Not transferring data.
- Blinking: Transferring data.
