In addition to the foregoing, the front panel also has LEDs linked to the LAN and WAN Ethernet interfaces.
3.1.1.1 LEDs

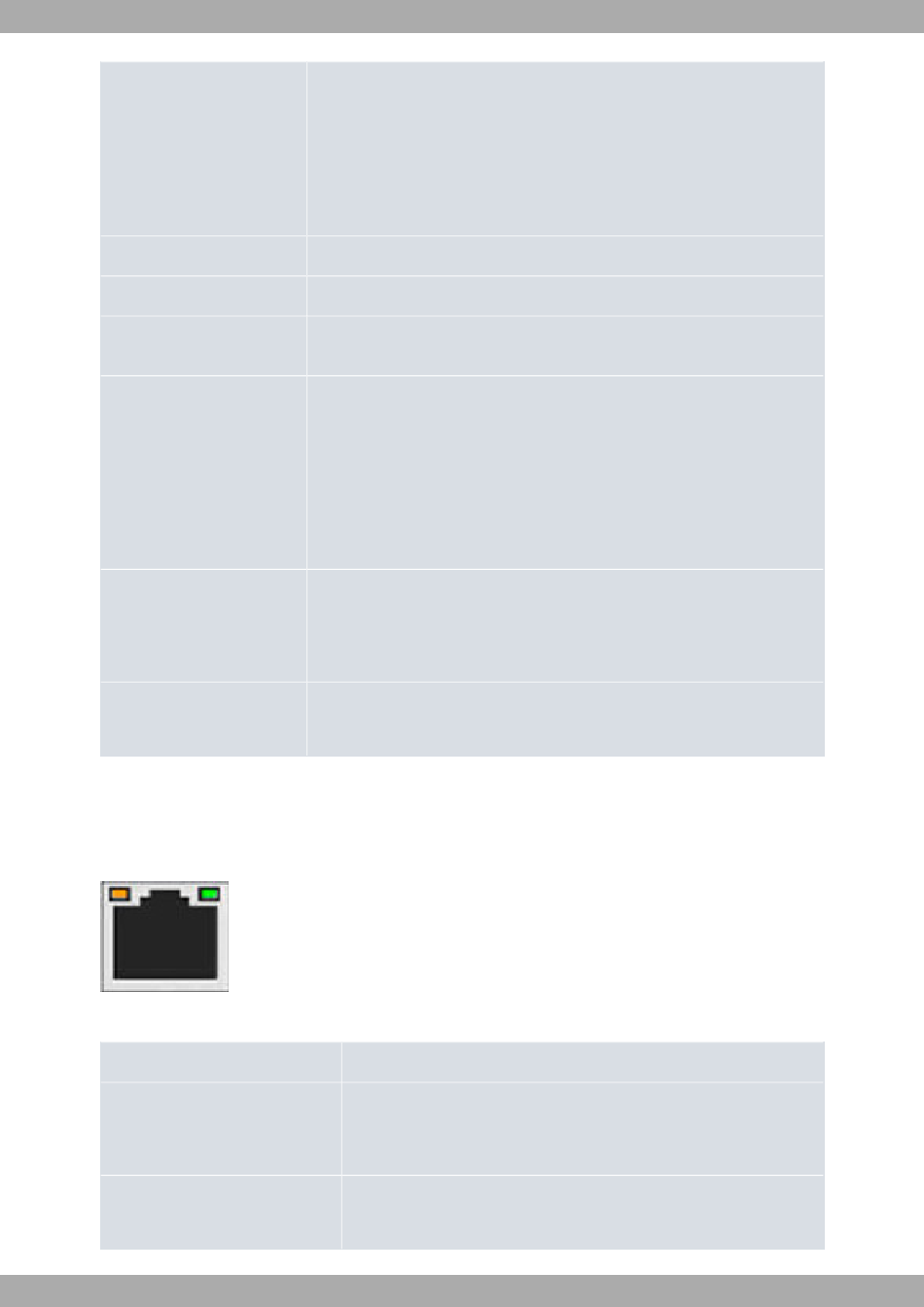

The following figure shows the router's WAN-1 LED indicators:
WAN-1 LEDs
Fig. 3:
WAN-1 Ethernet LED indicators
LED
Green
Yellow
Teldat M2/M2L
4-port Gigabit Ethernet Switch (LAN1 to LAN4).
For more information on the LAN interface, refer to:
- 4-port Ethernet switch connections
- LAN connectors on page 21
- LAN interface on page 23
LED PWR (Power). Refer to on page for more information.
LED WLAN (WLAN Status). Refer to
RST. Reset button. For further information on how the reset button works, please
see RST button on page 11.
Aux. Provides access to the Teldat M2 local console for configuration and monit-
oring purposes.
For more information on the Aux connector, refer to:
- Connecting for configuration
- Configuration connector on page 22
- Configuration interface on page 26
Power source connection (DC IN).
Refer to Power source on page 10 for more information on Power connection and
Power supply on page 26 for power specifications applicable to the Teldat M2
device.
Kensington security slot
For further information, please see on page
Description
Copper status
- Steady: 10/100/1000M link established.
- Blinking: Transferring data.
Fiber status:
- Steady: 1000M link established.
on page 12
LEDs on page 5 for more information.
on page 13
