3 Components and Power Supply

3.6 Connecting the data

The Teldat V router has the following data connections.

3.6.1 4-port Ethernet Switch

The Teldat V router incorporates a 4-port 10/100/1000 BaseT Switch with automatic MDI/MDIX to connect to a local
area network (LAN).
Please pay careful attention to the labeling so you do not mix this switch with other types of ports:

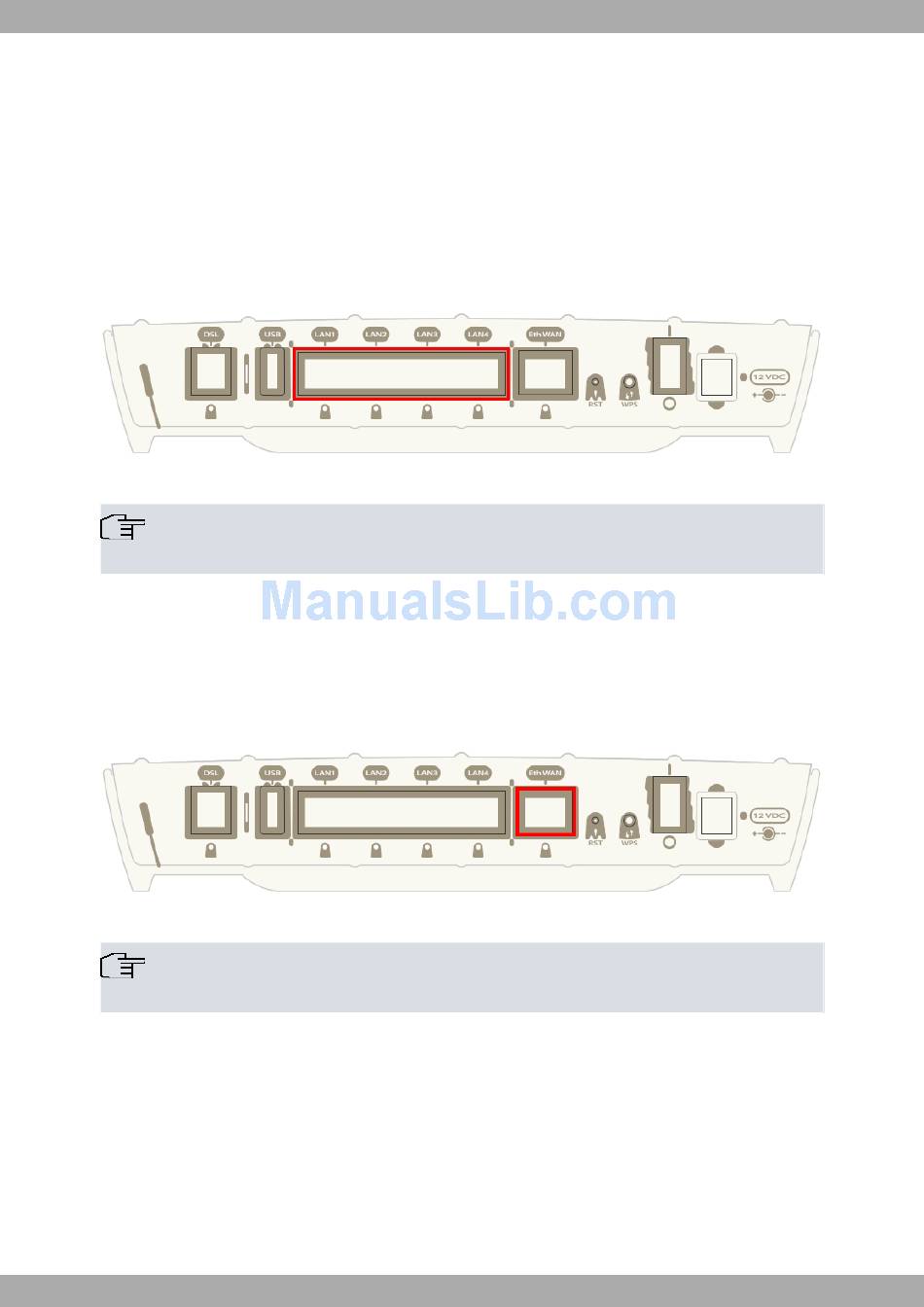

LAN switch Ports
Fig. 10:
Note
During booting and in BIOS mode, only the LAN 1 connector is available.

3.6.2 WAN Connection

The Teldat V incorporates an Ethernet WAN 10/100/1000 BaseT port with automatic MDI/MDIX.
The WAN port is independent from the Switch and is handled as just one more interface.
Please pay careful attention to the labeling so you do not mix this switch with other types of ports:
WAN Port
Fig. 11:
Note
During booting and in BIOS mode, the Eth WAN connector is not operative.

3.6.3 DSL Connection

The Teldat V has a DSL connector to connect to a VSDL2/ADSL network. This is a 4-wire female RJ11 connector
that uses the central pair for data transmission/reception.
For connection purposes, you can use the telephone cable with male RJ11 connectors (provided with the device).
