Installing M.2 Solid State Drives

The X12DPG-U6 can accommodate two M.2 solid state drives (SSDs). Each M.2 socket
supports NVMe PCIe 3.0 x2 (32 Gb/s) or SATA SSD cards in a 2280 or 22110 form factor.
The 22110 form factor is recommended because the appropriate standoff comes pre-installed
on the motherboard.
Caution: Use industry-standard anti-static equipment, such as gloves or wrist strap, and
follow precautions to avoid damage caused by ESD.
JPL4
LAN
CTRL
JUID1
PWR_
LED
CPU1
BMC
UID_LED
JCOM1
JL1
JVGA1
Chapter 3: Maintenance and Component Installation
JPL6
X12DPG-U6
BMC CODE
REV:1.01
BIOS LICENSE
BAR CODE
DESIGNED IN USA
JSD2
SATA5
JRK1
BT1
PCH
JCOMDBG1_JWD1
JBT1
JUSB2

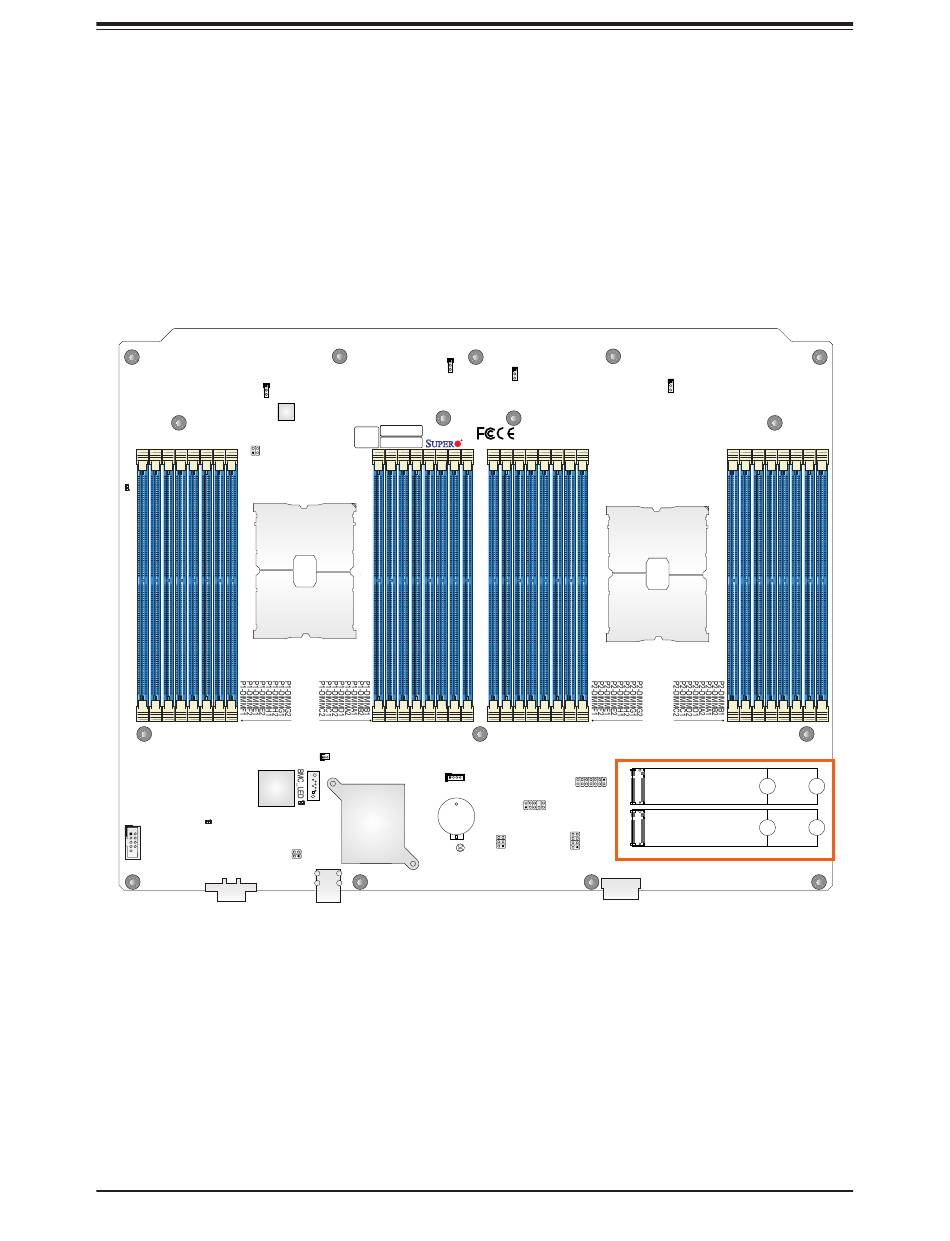

Figure 3-15. M.2 Slot Locations
60
JVRM2
JPL5
CPU2
JPRG1
M.2-HC1
JTPM1
M.2-HC2
JVRM1
JUSB3
2280 22110
2280 22110
