Removing the Processor from the Processor Carrier Assembly

Once you have removed the processor carrier assembly from the PHM, you are ready to
remove the processor from the processor carrier by following the steps below.

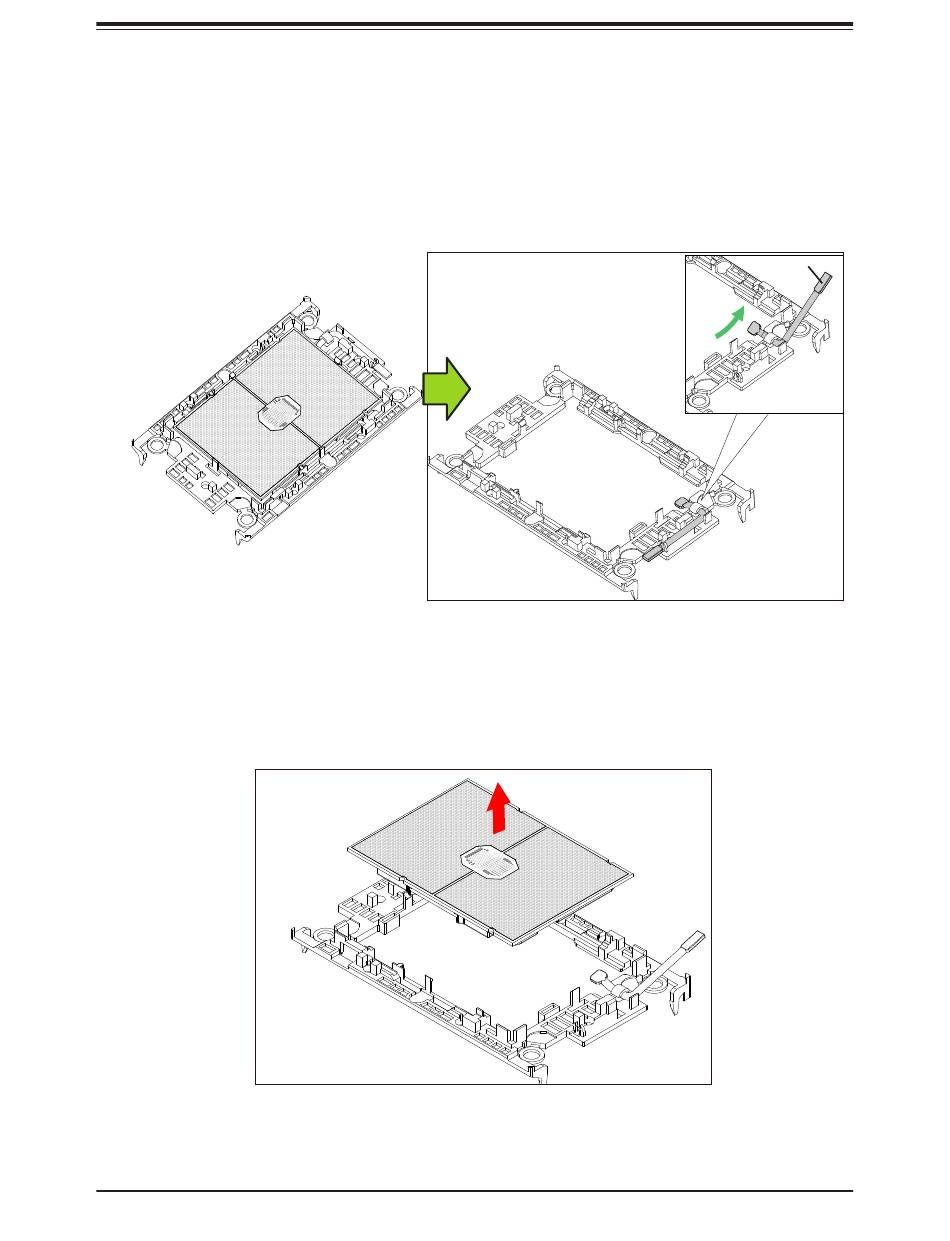

1. Unlock the lever from its locked position and push it upwards to disengage the
processor from the processor carrier as shown below right.
Processor Carrier Assembly
2. Once the processor has been loosened from the carrier, carefully remove the processor
from the carrier.
Note: Please handle the processor with care to avoid damaging it or its pins.
Chapter 3: Maintenance and Component Installation
40
Lever
