Chapter 3: Maintenance and Component Installation

Removing the Processor Carrier Assembly from the PHM

To remove the processor carrier assembly from the PHM, please follow the steps below:

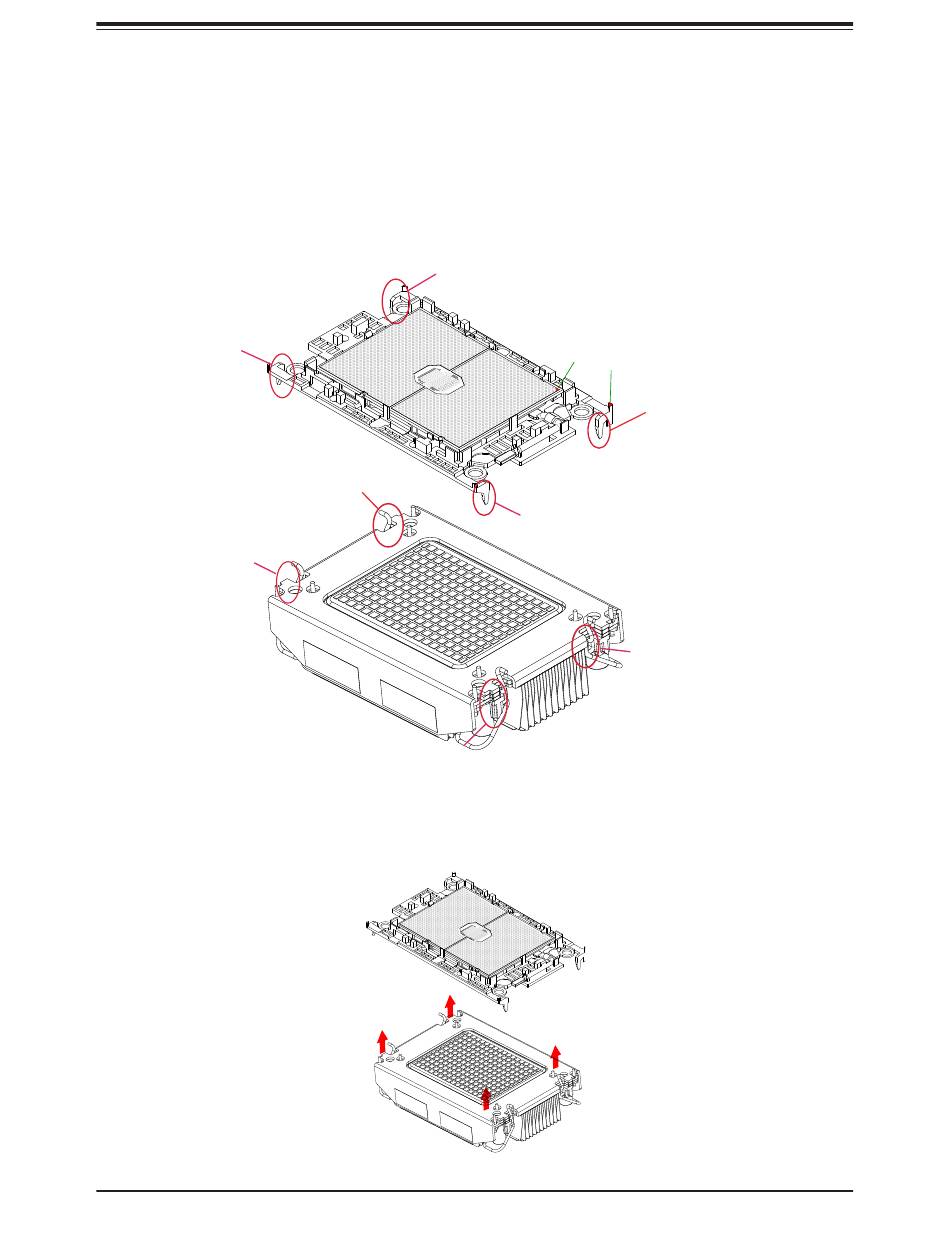

1. Detach the four plastic clips (marked a, b, c, d) on the processor carrier assembly from
the four corners of the heatsink (marked A, B, C, D) as shown below.
d
Processor Carrier Assembly
b
Pin 1
Pin 1
a
D
c
B
Heatsink
A
C
2. When all plastic clips have been detached from the heatsink, remove the processor
carrier assembly from the heatsink
39
