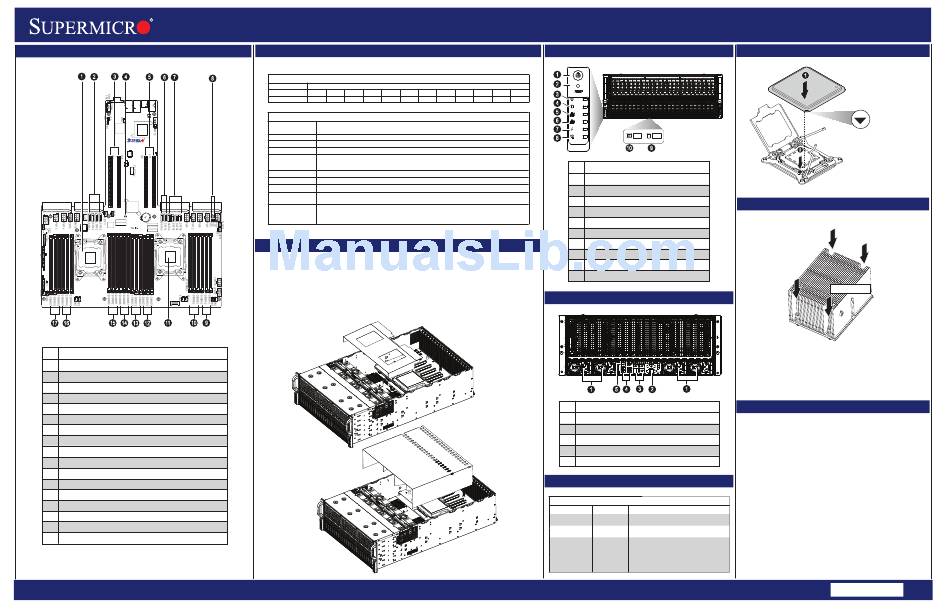

SuperServer 4027GR-TRT/TR Quick Reference Guide
Board Layout
1
2
3
4
5
6
7
8
VGA1
LAN2 LAN1
USB2/3
USB0/1
IPMI_LAN
LAN
BMC
CTRL
X9DRG-OF
X9DRG-O-PCIE
JPLD1
BIOS
JPW22
JPW21
JPW23
JPW24
PCH
BT1
DM1
JBT1
IPMI CODE
BIOS
BAR CODE
10G MAC CODE
T-SGPIO-S1
LICENSE
10G SAN MAC
1G MAC CODE
CPU1
CPU2
CLOSE 1st
JPB1
CLOSE 1st
JOH1
JL1
JPME2
JPME1
JWD1
OPEN 1st
OPEN 1st
JSPK1
JF1
JITP0
17
16
15
14
13
12
11
10
9
No.
Description
1
CPU2
2
S-SATA1~4: Intel SATA 2.0 Connectors 0~3 (from Intel SCU)
3
J33/J34 : Slots for Riser Cards (RSC-X9DRG-O) slot
4
JBT1= CMOS Clear
5
J32/J31 : Slots for Riser Cards (RSC-X9DRG-O) slot
6
I-SATA0~1: Intel SATA 3.0 Connectors 0/1 (from Intel AHCI)
7
I-SATA2~5: Intel SATA 2.0 Connectors 2/3/4/5 (from Intel AHCI)
8
JSD1/JSD2 = SATA DOM Power
9
P1-DIMMA1(Blue)/P1-DIMMA2/P1-DIMMA3 slot
10
P1-DIMMB1(Blue)/P1-DIMMB2/P1-DIMMB3 slot
11
CPU1 (Install CPU1 first)
12
P1-DIMMD1(Blue)/P1-DIMMD2/P1-DIMMD3 slot
13
P1-DIMMC1(Blue)/P1-DIMMC2/P1-DIMMC3 slot
14
P1-DIMME1(Blue)/P1-DIMME2/P1-DIMME3 slot
15
P1-DIMMF1(Blue)/P1-DIMMF2/P1-DIMMF3 slot
16
P1-DIMMH1(Blue)/P1-DIMMH2/P1-DIMMH3 slot
17
P1-DIMMG1(Blue)/P1-DIMMG2/P1-DIMMG3 slot
MEMORY
Processors and their Corresponding Memory Modules
Corresponding DIMM Modules
CPU#
CPU 1 P1-DIMM
A1
A2
A3
B1
B2
B3
C1
C2
CPU 2 P2-DIMM
E1
E2
E3
F1
F2
F3
G1
G2
Processors and Memory Module Population for Optimal Performance
CPU and Memory Population Configuration Table
Number of
(For memory to work properly, follow the instructions below)
CPUs + DIMMs
1 CPU & 2 DIMMs
CPU1 & P1-DIMMA1/P1-DIMMB1
1 CPU & 4 DIMMs
CPU1 & P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1
1 CPU & 5~8 DIMMs
CPU1 & P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1, P1-DIMMA2/P1-DIMMB2, P1-DIMMC2/P1-DIMMD2
CPU1/CPU
P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1, P1-DIMMA2/P1-DIMMB2, P1-DIMMC2/P1-DIMMD2
1 CPU & 9~12 DIMMs
P1-DIMMA3/P1-DIMMB3, P1-DIMMC3/P1-DIMMD3
2 CPUs & 4 DIMMs
CPU1 + CPU2 & P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1
2 CPUs & 6 DIMMs
CPU1 + CPU2 & P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1, P1-DIMMC1/P1-DIMMD1
2 CPUs & 8 DIMMs
CPU1 + CPU2 & P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1, P1-DIMMC1/P1-DIMMD1, P2-DIMMG1/P2-DIMMH1
CPU1/CPU2 & P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1, P1-DIMMC1/P1-DIMMD1, P2-DIMMG1/P2-DIMMH1
2 CPUs & 9~12 DIMMs
P1-DIMMA2/P1-DIMMB2, P2-DIMME2/P2-DIMMF2
2 CPUs & 13~24 DIMMs
CPU1/CPU & P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1, P1-DIMMC1/P1-DIMMD1, P2-DIMMG1/P2-DIMMH1,
P1-DIMMA2/P1-DIMMB2, P2-DIMME2/P2-DIMMF2, P1-DIMMC2/P1-DIMMD2, P2-DIMMG2/P2-DIMMH2,
P1-DIMMA3/P1-DIMMB3, P2-DIMME3/P2-DIMMF3, P1-DIMMC3/P1-DIMMD3, P2-DIMMG3/P2-DIMMH3
Air Shroud
Air shrouds concentrate airflow to maximize fan effeciency. Two air shrouds are included in the system:
one for the CPU and another for the PCI slots. These air shrouds do not require screws to set up.
Installing the Air Shroud
1. Confirm that all fans are in place and working properly.
2. Place the CPU air shroud into the chassis first. The air shroud sits behind the system fans.
CPU Air Shroud Placement
PCI Air Shroud Placement
Front view & Interface
1
2
3
C3
D1
D2
D3
G3
H1
H2
H3
4
5
6
7
8
10
No.
Description
1
Power Button
2
Reset Button
3
Power LED
4
Device Activity LED
5
LAN1 LED
6
LAN2 LED
7
Information LED
8
Power Failure Button
9
Hard Drive Signal
10
Hard Drive Fail
Rear View
5
4
3
1
No.
Description
Power Supplies
1
2
VGA Port
3
LAN1 & LAN2
(10GbE SFP+ Port/1G Port) (X9DRG-OTG/OF)
4
USB 0/1, 2/3 Ports
5
Dedicated LAN for IPMI
Beep Codes
BIOS Beep Codes
Beep Code/LED
Message
Description
1 beep
Refresh
Ready to boot
5 short beeps +
Memory
No memory detected in the system
1 long beep
Con-In: USB or PS/2 keyboard, PCI or
No Con-In or
Serial Console Redirection, IPMI KVM or SOL
5 long beeps
No Con-Out
devices
Con-Out: Video Controller, PCI or Serial
Console Redirection, IPMI SOL
http://www.supermicro.com
CPU Installation
9
Heatsink Installation
Screw #A
Screw #B
1. Place heatsink on top of installed CPU
2. Line up the four screws to socket
3. Push down heatsink and screw down as shown
(cross pattern, in order: A, B, C, D)
4. NOTE: Only use 6-8 lb/f of torque; otherwise, hand-tighten
2
1
each screw, to avoid damaging the system
Caution
!
SAFETY INFORMATION
IMPORTANT: See installation instructions and safety warning
before connecting system to power supply.
http://www.supermicro.com/about/policies/safety_information.cfm
!
WARNING:
To reduce risk of electric shock/damage to equipment,
disconnect power from server by disconnecting all power
cords from electrical outlets.
If any CPU socket empty, install protective plastic CPU cap
!
CAUTION:
Always be sure all power supplies for this system have
the same power output. If mixed power supplies are
installed, the system will not operate.
For more information go to :
http://www.supermicro.com/support
MNL-1582-QRG
Align CPU to socket;
install CPU straight down
!
NOTE:
Do not bend pin inside socket
Screw #D
Screw #C
