Chapter 3: Maintenance and Component Installation

CPU Tray

Removing and Installing the CPU Tray
1. Loosen the captive screw on the CPU chassis, pull both levers to pull the CPU tray out.
Screw
Lever

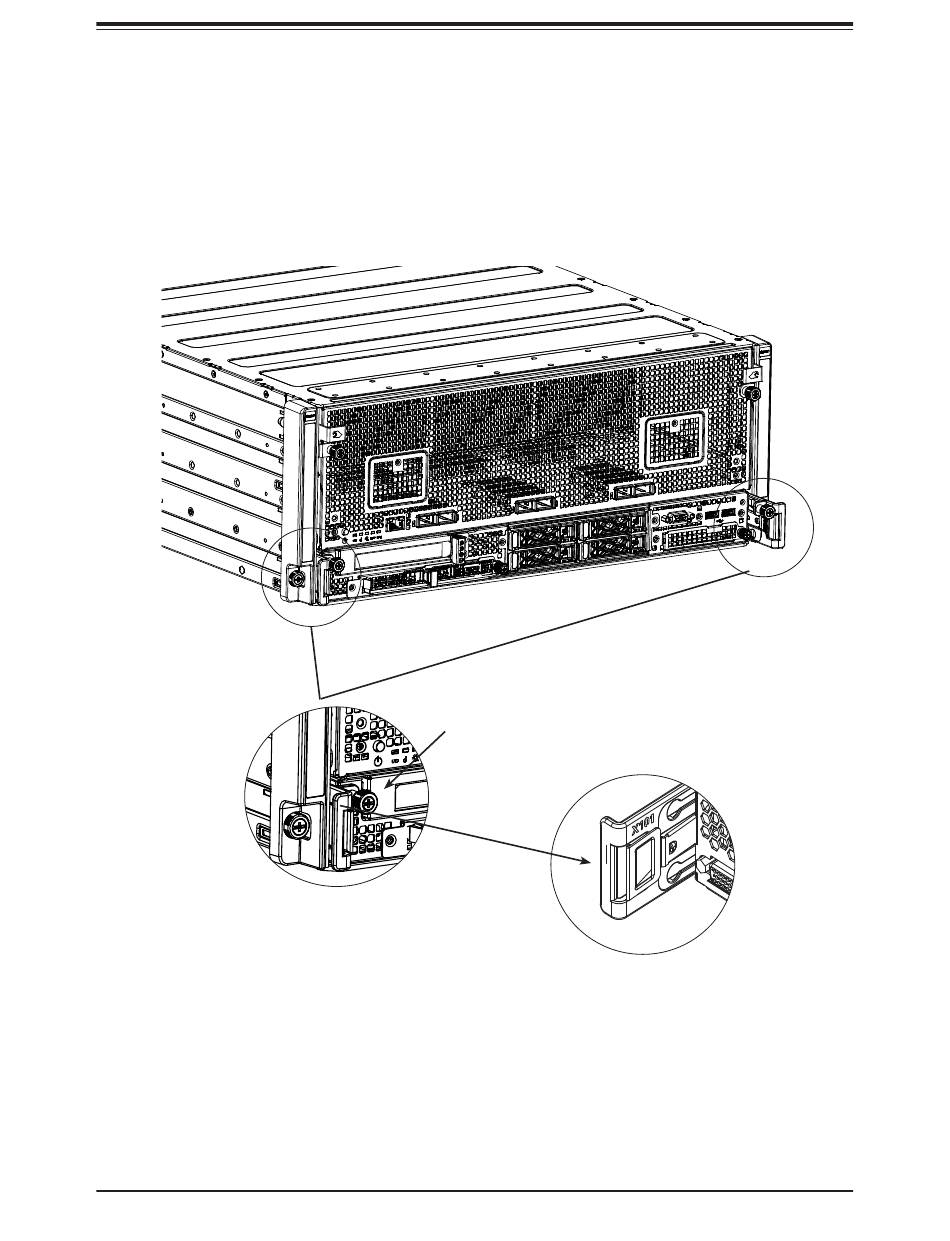

Figure 3-2. Removing the CPU Tray
2. To install it back, slide the tray into the chassis.
3. Push two levers back until they snap into place.
4. Secure each lever with a screw.
