4. Once all screws are loose, grasp the handle of the carrier board module and lift it up
and out. Be careful not to scratch the carrier board baseboard or your hands on the
chassis metal edges.

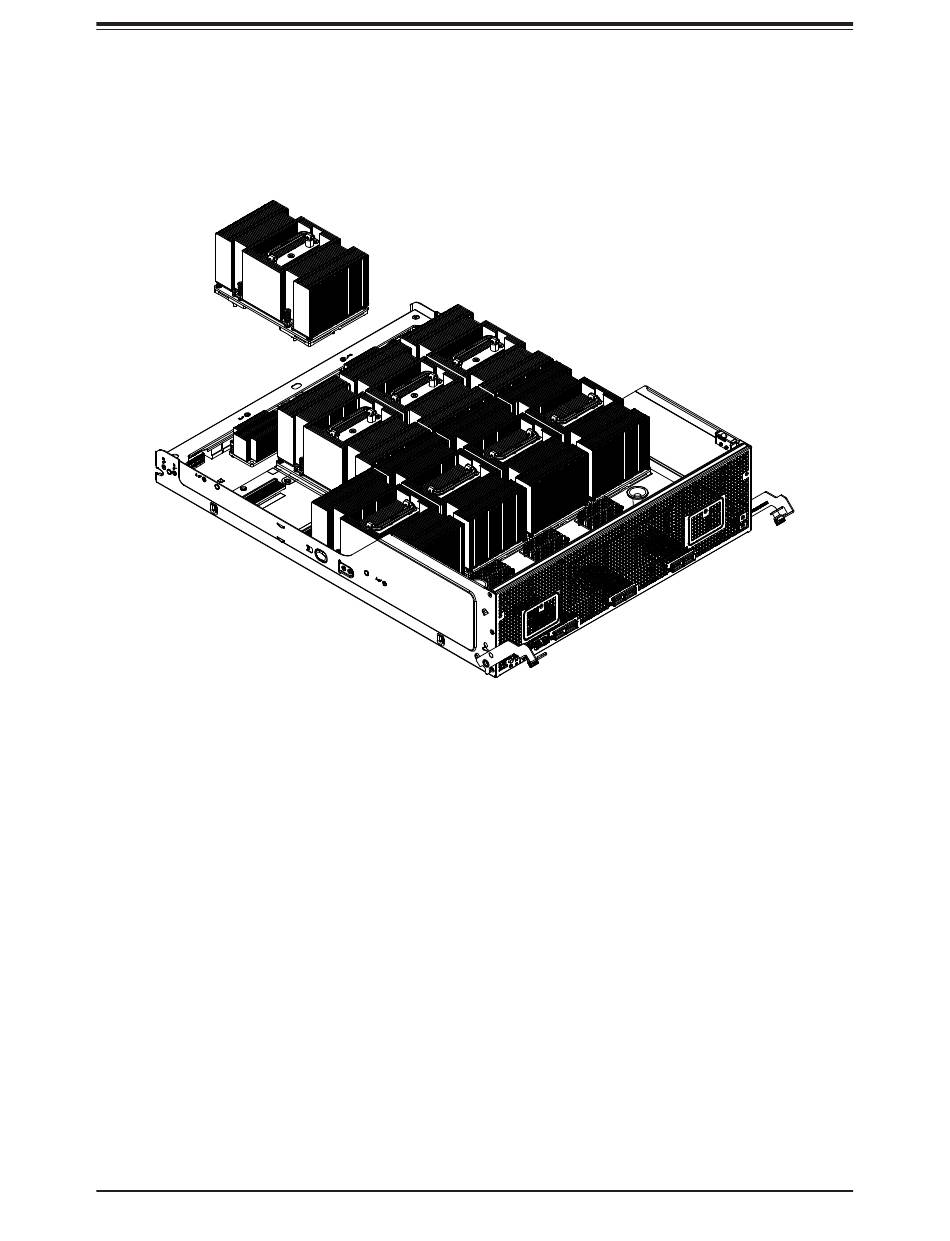

Figure 3-9. Removing a Gaudi OAM Module
To Install a Gaudi OAM Module
1. Align the guide pins and holes of both Gaudi OAM module and carrier board.
2. Placing the Gaudi OAM module on the carrier board and securing it with screws evenly
to 7 lbs-in torque in a diagonal pattern.
Chapter 3: Maintenance and Component Installation
53
