Removing/Installing Drives

Removing Drive Carriers from the Chassis
1. Slide the handle lever on the drive carrier up to unlock the carrier handle. This releases
and extends the drive carrier handle.
2. Rotate and use the handle to pull the carrier out.
Caution: Except for short periods of time (swapping drives), do not operate the server with
the drive carriers removed from the bays, regardless of how many drives are installed, for
proper airflow.
Chapter 3: Maintenance and Component Installation

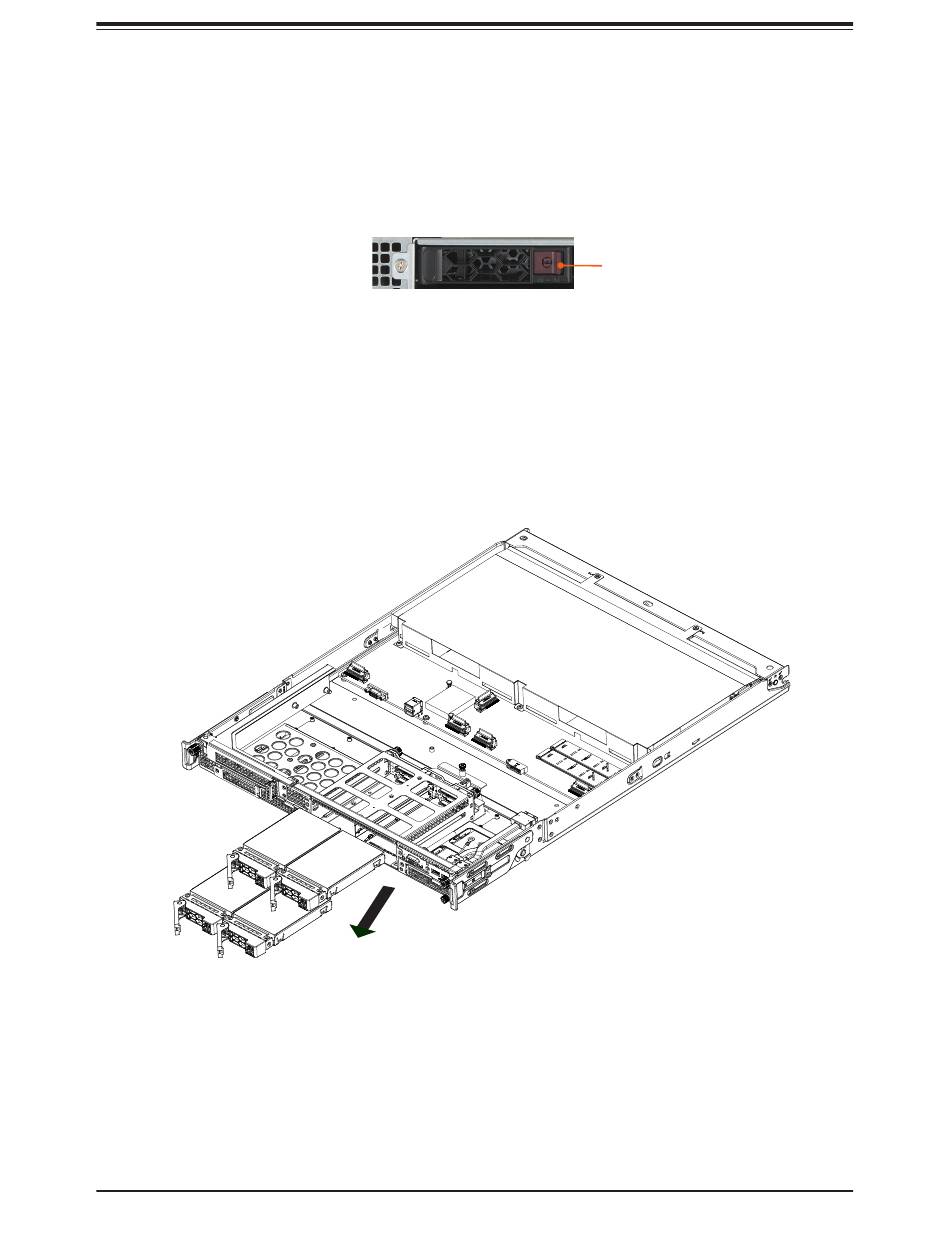

Figure 3-11. Unlocking Handle
Figure 3-12. Removing a Drive Carrier
56
Handle Lever
