Installing the PHM into the CPU Socket

After assembling the Processor Heatsink Module (PHM), you are ready to install it into the
CPU socket.

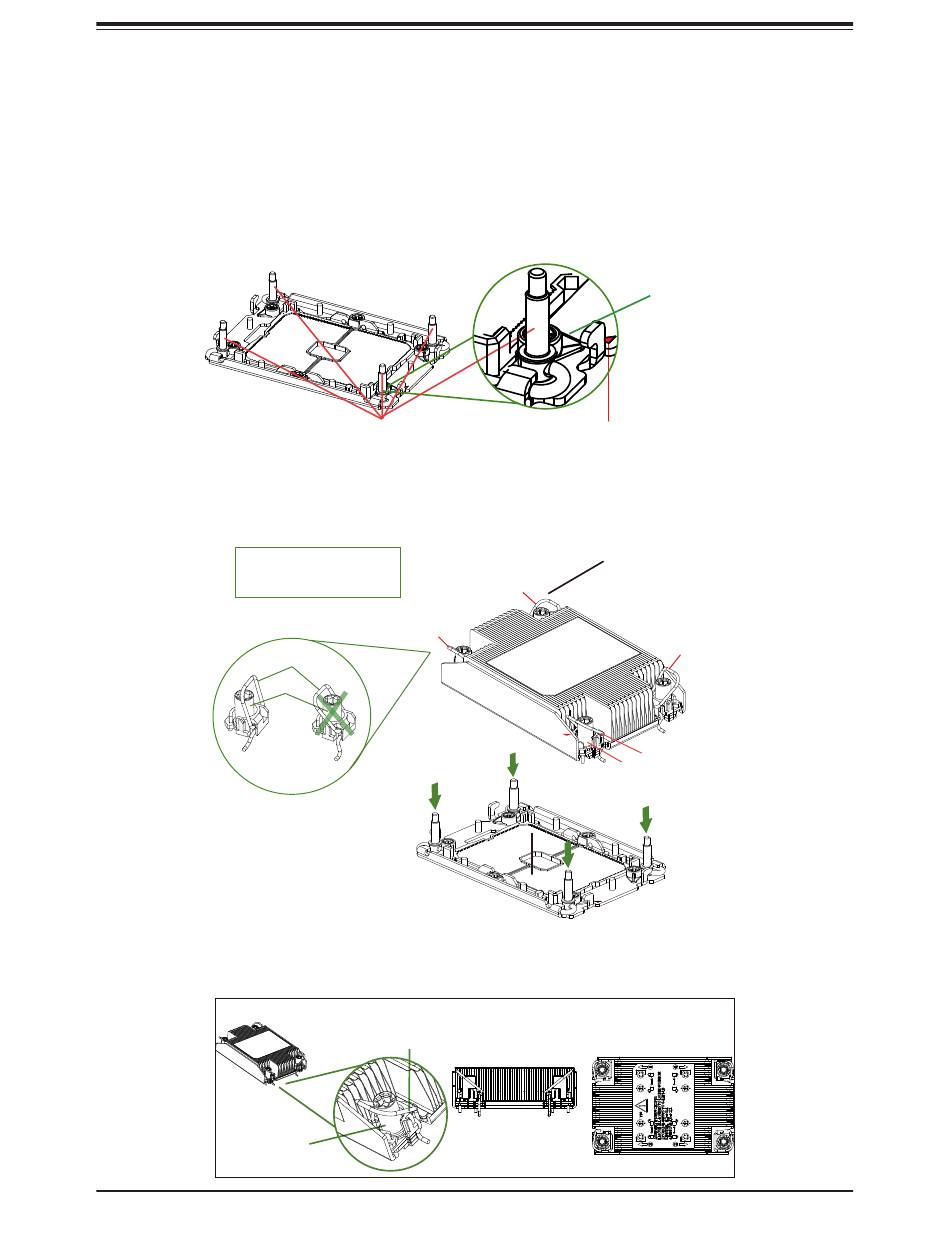

1. Locate four threaded fasteners (a, b, c, d) on the CPU socket.
b
d
(a, b, c, d: Threaded Fasteners)
2. Locate four peek nuts (A, B. C. D) and four rotating wires (1, 2, 3, 4) on the heatsink as
shown below.
A, B, C, D: Peek Nut
1, 2, 3, 4: Rotating Wire
a, b, c, d: Threaded Fastener
Rotating Wire
Peek Nut
(Unlatched)
3. Check the rotating wires (1, 2, 3, 4) to make sure that they are in the unlatched position
as shown.
Unlatched State
Peak Nut
