Installing a 2.5" Hard Drive
1. Place the hard drive carrier on a flat surface.
2. Orient the drive with the connector facing the bottom rear of the carrier. The drive can
be inserted from above the carrier and into the clips until a "click" is heard.
3. Use the open handle of the drive carrier to insert the carrier into the open drive bay.
4. Secure the drive carrier into the drive bay by closing the drive carrier handle.
5. Lock the handle with a flat-head screwdriver.

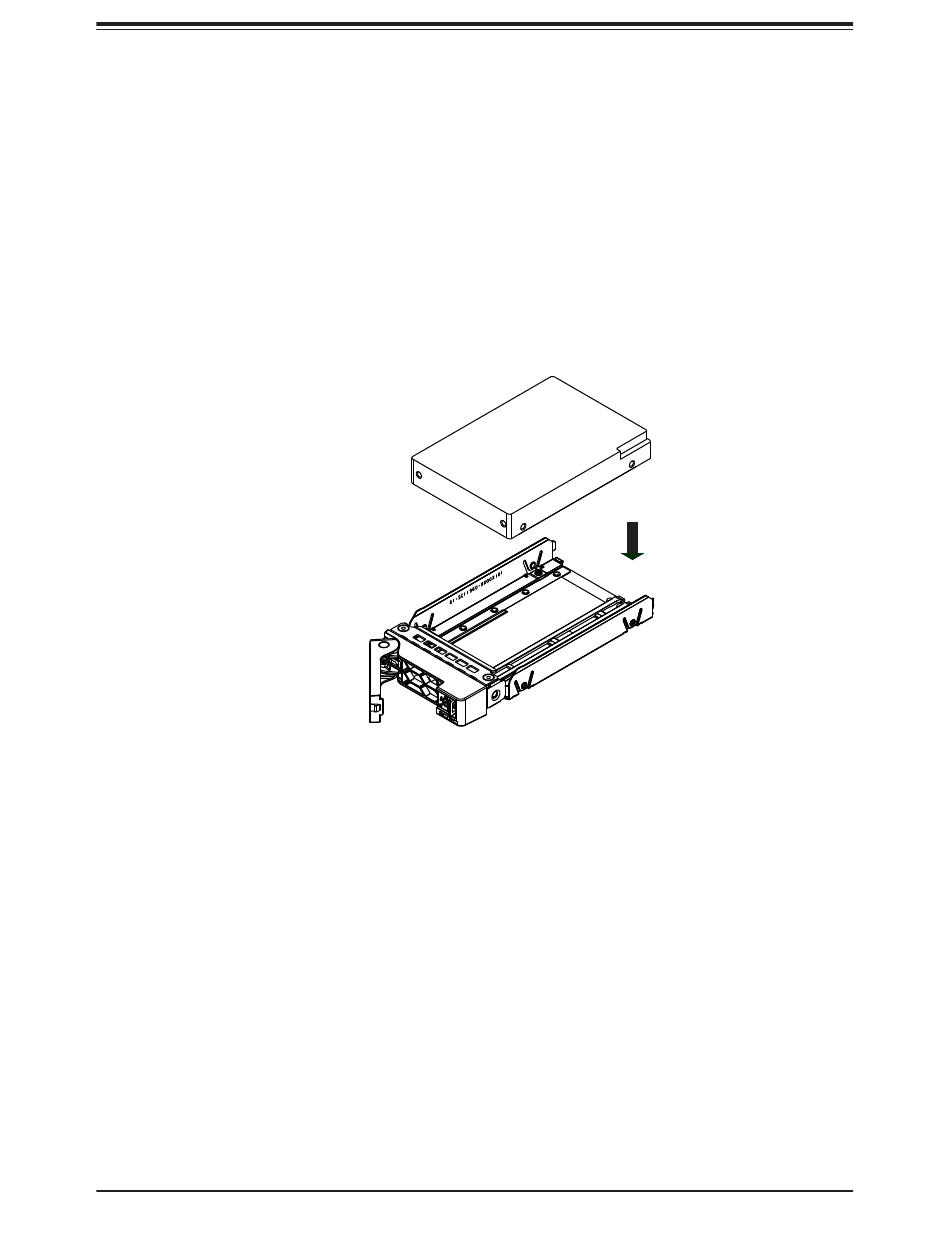

Figure 3-13. Installing Drive to Drive Carrier
Removing a 2.5" Hard Drive
1. After removing the carrier from the system, push up from the bottom of the drive to
remove it from the carrier.
2. Replace with a new drive and insert the carrier back into the open drive bay.
Chapter 3: Maintenance and Component Installation
57
Push down until click
