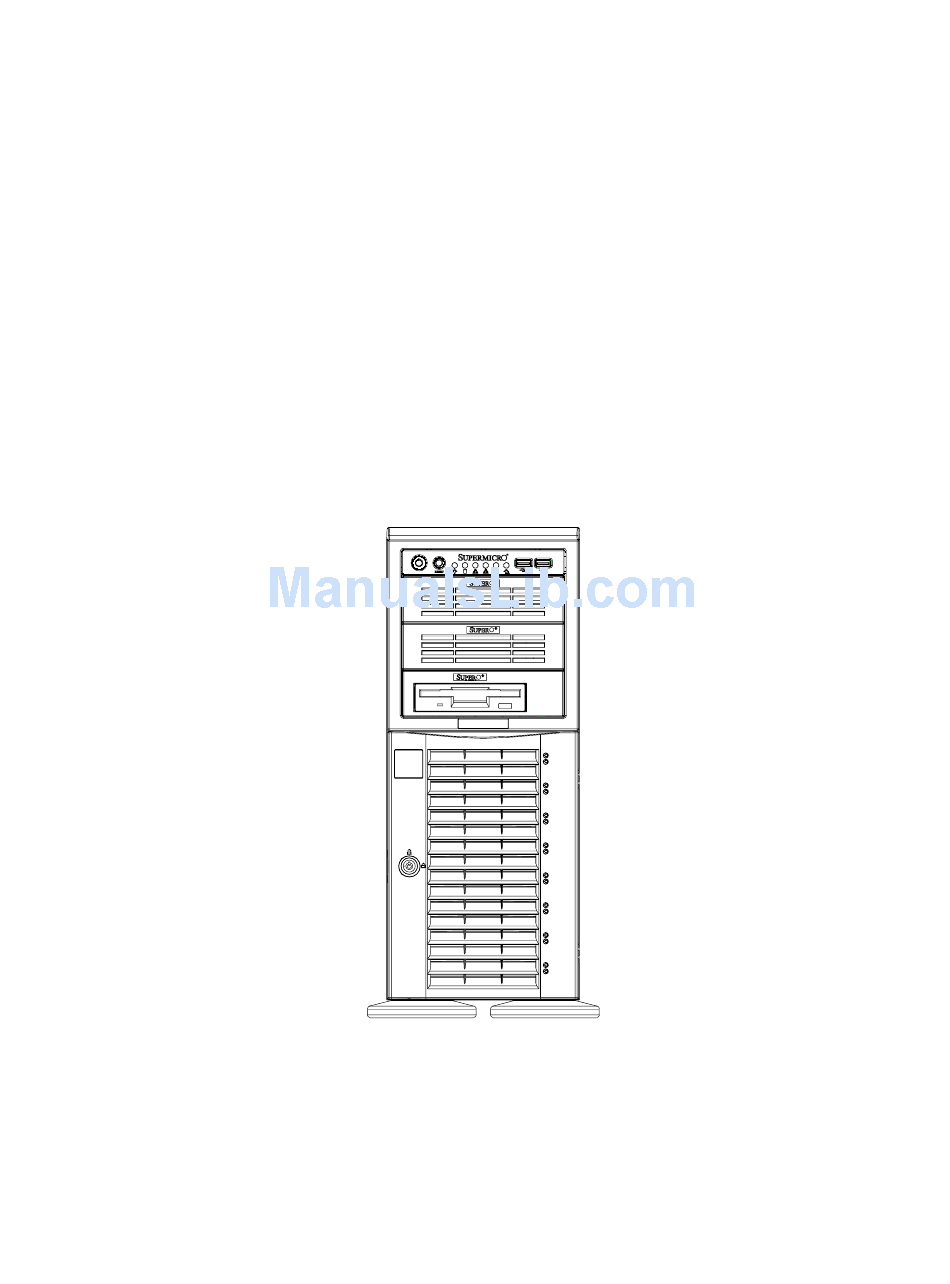

  • Page 1 A+ S 4020A-8R ERVER USER’S MANUAL...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any Please Note: For the most up-to-date version of person or organization of the updates.

  • Page 3: Preface

    About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the A+ Server 4020A-8R. Instal- lation and maintainance should be performed by experienced technicians only. The 4020A-8R is a high-end 2U rackmount server based on the SC743S1-R760 4U/rackmount server chassis and the H8DA8 serverboard, which supports single or dual AMD Opteron™...
  • Page 4 A+ Server 4020A-8R User's Manual Chapter 4: System Safety You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the 4020A-8R. Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the H8DA8 serverboard, including the locations and functions of connectors, headers and jumpers.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    A+ Server 4020A-8R User's Manual Table of Contents Preface About This Manual ... iii Manual Organization ... iii Chapter 1: Introduction Overview ... 1-1 Serverboard Features ... 1-2 Server Chassis Features ... 1-4 Chapter 2: Server Installation Overview ... 2-1 Unpacking the System ...
  • Page 7 Power Fail ... 3-3 SCSI Drive LEDs ... 3-3 LAN (Ethernet) Port LEDs ... 3-3 Chapter 4: System Safety Electrical Safety Precautions ... 4-1 General Safety Precautions ... 4-2 ESD Precautions ... 4-3 Operating Precautions ... 4-4 Disposing of Electronic Equipment ... 4-4 Chapter 5: Advanced Serverboard Setup Handling the Serverboard ...
  • Page 8 A+ Server 4020A-8R User's Manual Power Fail and Alarm Reset Header ... 5-16 Fan Headers ... 5-16 JLAN 1/2 (Ethernet Ports) ... 5-16 Extra USB Headers ... 5-17 Power LED/Speaker ... 5-17 ATX PS/2 Keyboard & Mouse Ports ... 5-17 Wake-On-LAN ...
  • Page 9 Power Supply Failure ... 6-10 Replacing the Power Supply ... 6-10 Chapter 7: BIOS Introduction ... 7-1 Main Setup ... 7-2 Advanced Setting Menu ... 7-2 PCI/PnP Menu ... 7-10 Boot Menu ... 7-11 Security Menu ... 7-13 Chipset Menu ... 7-14 Power Menu ...
  • Page 10 A+ Server 4020A-8R User's Manual Notes...

  • Page 11: Chapter 1: Introduction

    Overview The 4020A-8R is a high-end dual processor server featuring some of the most advanced technology currently available. The 4020A-8R is comprised of two main subsystems: the SC743S1-R760 tower/4U rackmount chassis and the H8DA8 dual processor serverboard. Please refer to our web site for information on operating systems that have been certifi...

  • Page 12: Serverboard Features

    A+ Server 4020A-8R User's Manual Serverboard Features At the heart of the 4020A-8R lies the H8DA8 a dual processor serverboard de- signed to provide maximum performance. Below are the main features of the H8DA8. See Figure 1-1 for a system block diagram of the chipset. Processors The H8DA8 supports single or dual 940-pin AMD Opteron refer to our web site for a complete listing of supported processors.

  • Page 13: Ati Graphics Controller

    ATI Graphics Controller An ATI video controller based on the Rage XL 8 MB graphics chip is integrated onboard the H8DA8. Rage XL fully supports sideband addressing and AGP texturing. This onboard graphics package can provide a bandwidth of up to 512 MB/sec over a 32-bit graphics memory bus.

  • Page 14: Server Chassis Features

    A+ Server 4020A-8R User's Manual Server Chassis Features The SC743S1-R760 is a scaleable server platform that may be deployed either in a tower or a 4U rackmount confi guration. The following is a general outline of the main features of the SC743S1-R760 chassis. System Power The SC743S1-R760 features a triple redundant 760W power supply that consists of three separate power supply modules.

  • Page 15: Cooling System

    Cooling System The The SC743S1-R760 chassis has an innovative cooling design that includes four 8-cm hot-plug system cooling fans located in the middle section of the chas- sis and two 8-cm hot-plug rear exhaust fans. Each power supply module also includes a cooling fan.
  • Page 16 A+ Server 4020A-8R User's Manual Notes...

  • Page 17: Chapter 2: Server Installation

    Server Installation 2-1 Overview This chapter provides a quick setup checklist to get your AS 4020A-8R server up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. This quick setup assumes that your system has come to you with the processors and memory preinstalled.

  • Page 18: Choosing A Setup Location

    Allow the hot plug SCSI drives and power supply units to cool before touching them. Always keep the rack's front door and all panels and components on the servers closed when not servicing to maintain proper cooling.

  • Page 19: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).

  • Page 20: Installing The System Into A Rack

    A+ Server 4020A-8R User's Manual Installing the System into a Rack This section provides information on installing the system into a rack unit. Rack installation requires the use of the optional rackmount kit [CSE-PT26(B)]. If the system has already been mounted into a rack or if you are using it as a tower, you can skip ahead to Sections 2-5 and 2-6.

  • Page 21: Installing The Chassis Rails

    Chapter 2: Server Installation Installing the Chassis Rails You will need to remove the top cover and the feet to add rack rails to the chassis. First, remove the top and right covers (top and left covers when standing as a tower chassis) by fi...

  • Page 22: Installing The Rack Rails

    A+ Server 4020A-8R User's Manual Figure 2-3. Installing the Rails to the Chassis Installing the Rack Rails Determine where you want to place the AS 4020A-8R in the rack. (See Rack and Server Precautions in Section 2-3.) Position the fi xed rack rail/sliding rail guide assemblies at the desired location in the rack, keeping the sliding rail guide facing the inside of the rack.

  • Page 23: Installing The Server Into The Rack

    Chapter 2: Server Installation Installing the Server into the Rack You should now have rails attached to both the chassis and the rack unit. The next step is to install the server into the rack. You should have two brackets in the rack mount kit.

  • Page 24: Checking The Serverboard Setup

    A+ Server 4020A-8R User's Manual Checking the Serverboard Setup After setting up the the system, you will need to open the unit to make sure the serverboard is properly installed and all the connections have been made. 1. Accessing the inside of the system (see Figure 2-5) [If rack mounted, fi...
  • Page 25 Chapter 2: Server Installation Figure 2-5. Accessing the Inside of the System (Rack Confi guration shown) The SCSI disk drives can be installed and removed from the front of the chassis without removing any chassis covers. 2. Installing components into the 5.25" drive bays To install components into the 5.25"...
  • Page 26 A+ Server 4020A-8R User's Manual 6. Supplying power to the system The last thing you must do is to provide input power to the system. Plug the power cord from the power supply unit into a high-quality power strip that offers protec- tion from electrical noise and power surges.

  • Page 27: Chapter 3: System Interface

    System Interface Overview The control panel on the AS 4020A-8R has several LEDs and two buttons. There are also two LEDs on each SCSI drive carrier and the Ethernet ports. These LEDs keep you constantly informed of the overall status of the system and the activity and health of specifi...

  • Page 28: Control Panel Leds

    A+ Server 4020A-8R User's Manual Control Panel LEDs The control panel located on the front of the SC743S1-R760 chassis has six LEDs that provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 29: Power Fail

    Power Fail: Indicates a power supply module has failed. This should be accompanied by an audible alarm. A backup power supply module will take the load and keep the system running but the failed module will need to be replaced. Refer to Chapter 6 for details on replacing the power supply.
  • Page 30 A+ Server 4020A-8R User's Manual Notes...

  • Page 31: Chapter 4: System Safety

    Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the 4020A-8R from damage: Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 32: General Safety Precautions

    A+ Server 4020A-8R User's Manual Serverboard Battery: CAUTION - There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarities (see Figure 4-1). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer.

  • Page 33: Esd Precautions

    ESD Precautions Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other. An electrical discharge is created to neutralize this difference, which can damage electronic com ponents and printed circuit boards. The following measures are generally suffi cient to neutralize this difference before contact is made to protect your equipment from ESD: Use a grounded wrist strap designed to prevent static discharge.

  • Page 34: Operating Precautions

    A+ Server 4020A-8R User's Manual Operating Precautions Care must be taken to assure that the chassis cover is in place when the 4020A-8R is operating to ensure proper cooling. Out of warranty damage to the 4020A-8R system can occur if this practice is not strictly followed. Figure 4-1.

  • Page 35: Chapter 5: Advanced Serverboard Setup

    Advanced Serverboard Setup This chapter covers the steps required to install processors and heatsinks to the H8DA8 serverboard, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are described and a layout and quick reference chart are included in this chapter. Remember to close the chas- sis completely when you have fi...

  • Page 36: Mounting The Serverboard Into A Chassis

    A+ Server 4020A-8R User's Manual Mounting the Serverboard into a Chassis All serverboards and motherboards have standard mounting holes to fi t different types of chassis. Make sure that the locations of all the mounting holes for both the serverboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the serverboard to the chassis.
  • Page 37 Chapter 5: Advanced Serverboard Setup 2. Use your thumb and your index fi n- ger to hold the CPU. Locate pin 1 on the CPU socket and pin 1 on the CPU. Triangles Both are marked with a triangle. 3. Align pin 1 of the CPU with pin 1 of the socket.
  • Page 38 A+ Server 4020A-8R User's Manual Installing the Heatsink We recommend the use of passive type heatsinks with the 4020A-8R server system). If you wish to install active heatsinks (those that include a fan), use the Fan7 header for the CPU1 fan and the Fan8 header for the CPU2 fan due to fan monitoring and wiring considerations.

  • Page 39: Connecting Cables

    Connecting Cables Now that the processors are installed, the next step is to connect the cables to the serverboard. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The ribbon cables used to transfer data from the peripheral devices have been carefully routed in preconfi...

  • Page 40: Connecting The Control Panel

    A+ Server 4020A-8R User's Manual Connecting the Control Panel JF1 contains header pins for various front control panel connectors. See Figure 5-2 for the pin locations of the various front control panel buttons and LED indica- tors and refer to section 5-9 for details. Note that even and odd numbered pins are on opposite sides of each header.

  • Page 41: I/O Ports

    I/O Ports The I/O ports are color coded in conformance with the PC 99 specifi cation. See Figure 5-3 below for the colors and locations of the various I/O ports. Figure 5-3. Rear Panel I/O Ports Mouse (Green) USB 0/1 Ports Keyboard COM1 Port (Purple)
  • Page 42 A+ Server 4020A-8R User's Manual Support The H8DA8 supports single or dual-channel, registered ECC DDR400/333/266 SDRAM. Both interleaved and non-interleaved memory are supported, so you may populate any number of DIMM slots (see note on previous page and charts on following page).
  • Page 43 Populating Memory Banks for Interleaved (128-bit) Operation CPU1 CPU1 CPU1 DIMM1A DIMM1B DIMM2A Notes: X indicates a populated DIMM slot. If adding four DIMMs (with two CPUs in- stalled), the confi guration in rows 2 and 6 (with DIMMs spread over both CPUs) will result in optimized performance.

  • Page 44: Adding Pci Cards

    A+ Server 4020A-8R User's Manual Adding PCI Cards 1. PCI slots: The H8DA8 has six PCI expansion slots, which includes two 64-bit 133 MHz PCI-X slots, two 64-bit 66 MHz PCI-X slots and two 32-bit 33 MHz PCI slots. (The 66 MHz PCI-X #3 slot supports Zero Channel RAID.) The SC743S1-R760 chassis allows all six slots to be populated with standard size (full height, full-length) PCI cards.

  • Page 45: Serverboard Details

    Serverboard Details Figure 5-5. H8DA8 Serverboard Layout ATX Power J101 FAN5 FAN6 FAN8 (CPU2 Fan) USB0/1 COM1 CPU2 JLAN1 CPU2 DIMM 2A CPU2 DIMM 2B JLAN2 CPU2 DIMM 1A CPU2 DIMM 1B LP IPMI PCI-X 133 MHz #6 Rage XL Graphics JPG1 PCI-X 133 MHz #5...

  • Page 46: H8Da8 Quick Reference

    A+ Server 4020A-8R User's Manual H8DA8 Quick Reference Jumpers Description 3rd Power Fail Signal En/Dis Open (Disabled) JBT1 CMOS Clear C1/2 C to PCI Enable/Disable JPA1 SCSI Controller En/Disable JPA2/3 SCSI CH A/B Term. En/Dis JPG1 VGA Enable/Disable JLAN1/JLAN2 En/Disable Watch Dog Connectors Description...

  • Page 47: Connector Defi Nitions

    Connector Defi nitions ATX Power Supply Connector The primary power supply connector (J1B4) on the H8DA8 meets the SSI (Superset ATX) 24-pin specifi cation. Refer to the table on the right for the pin defi nitions of the ATX 24-pin power connector.

  • Page 48: Hdd Led

    A+ Server 4020A-8R User's Manual HDD LED The HDD (IDE Hard Disk Drive) LED connection is located on pins 13 and 14 of JF1. Attach the IDE hard drive LED cable to display disk activity. Refer to the table on the right for pin defi...

  • Page 49: Reset Button

    Reset Button The Reset Button connection is lo- cated on pins 3 and 4 of JF1. Attach it to the hardware reset switch on the computer case. Refer to the table on the right for pin defi nitions. Power Button The Power Button connection is located on pins 1 and 2 of JF1.

  • Page 50: Serial Ports

    A+ Server 4020A-8R User's Manual Serial Ports The COM1 serial port is located be- side the VGA port. COM2 is a header on the serverboard located near the BIOS chip (see serverboard layout for location). See the table on the right for pin defi...

  • Page 51: Extra Usb Headers

    Extra USB Headers Three additional USB1.1 headers (USB2/3/4) are included on the serverboard. These may be con- nected to provide front side access. A USB cable (not included) is needed for the connection. See the table on the right for pin defi nitions. Power LED/Speaker On JD1, pins 1, 2, and 3 are for the power LED and pins 4 through 7 are...

  • Page 52: Wake-On-Lan

    A+ Server 4020A-8R User's Manual Wake-On-LAN The Wake-On-LAN header is desig- nated JWOL. See the table on the right for pin defi nitions. You must have a LAN card with a Wake-On-LAN connector and cable to use the Wake- On-LAN feature. Wake-On-Ring The Wake-On-Ring header is desig- nated JWOR.

  • Page 53: 5-10 Jumper Settings

    5-10 Jumper Settings Explanation of Jumpers To modi f y the operat ion of the serverboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identifi ed with a square solder pad on the printed circuit board.

  • Page 54: Jlan Enable/Disable

    A+ Server 4020A-8R User's Manual JLAN1/2 Enable/Disable Change the setting of jumper JPL to enable or disable the JLAN1 and JLAN2 Gb Ethernet ports. See the table on the right for jumper settings. The default setting is enabled VGA Enable/Disable JPG1 allows you to enable or disable the VGA port.

  • Page 55: Scsi Termination Enable/Disable

    SCSI Termination Enable/ Disable Jumper JPA2 and JPA3 are used to enable or disable termination for the SCSI Channel A and B connectors, re- spectively. The default setting for both is open to enable termination. See the table on right for pin defi nitions. Note: In order for the SCSI drives to function properly, please do not change the default setting (enabled) set by the...

  • Page 56: Onboard Speaker Enable/Disable

    A+ Server 4020A-8R User's Manual Onboard Speaker Enable/ Disable The JD1 header allows you to use either an external speaker or the internal (onboard) speaker. To use the internal (onboard) speaker, close pins 6 and 7 with a jumper. To use an external speaker, connect the speaker wires to pins 4 through 7 of JD1.

  • Page 57: 5-12 Floppy, Ide And Scsi Drive Connections

    5-12 Floppy, IDE and SCSI Drive Connections Use the following information to connect the fl oppy and hard disk drive cables. The fl oppy disk drive cable has seven twisted wires. A red mark on a wire typically designates the location of pin 1. A single fl...

  • Page 58: Ide Connectors

    A+ Server 4020A-8R User's Manual IDE Connectors There are no jumpers to con- figure the onboard JIDE#1 and JIDE#2 connectors. See the table on the right for pin defi nitions. IDE Drive Connectors Pin Defi nitions (JIDE#1/JIDE#2) Pin# Defi nition Pin # Defi...

  • Page 59: Scsi Connectors

    SCSI Connectors Refer to the table at right for pin defi nitions for the Ultra320 SCSI connectors located at JA1 and JB2. Chapter 5: Advanced Serverboard Setup Ultra320 SCSI Drive Connectors Pin Defi nitions (JA1/JB2) Pin# Defi nition Pin # Defi...
  • Page 60 A+ Server 4020A-8R User's Manual Notes 5-26...

  • Page 61: Chapter 6: Advanced Chassis Setup

    Advanced Chassis Setup This chapter covers the steps required to install components and perform simple maintenance on the SC743S1-R760 chassis. Following the component installation steps in the order given will eliminate most common problems. If some steps are unnecessary, skip ahead to the step that follows. Refer to Chapter 2 for instructions on installing the system as a 4U rackmount.
  • Page 62 A+ Server 4020A-8R User's Manual Figure 6-1. Chassis Front View System LEDs USB Ports Main Power System Reset 5.25" Drive Bays (2) Floppy Drive 8 SCSI Drive Bays (behind locking bezel)

  • Page 63: Front Control Panel

    Front Control Panel The front control panel must be connected to the JF1 connector on the serverboard to provide you with system status and alarm indications. A ribbon cable has bundled these wires together to simplify this connection. Connect the cable from JF1 on the serverboard (making sure the red wire plugs into pin 1) to the appropriate comnnec- tor on the front control panel PCB (printed circuit board).

  • Page 64: System Fans

    A+ Server 4020A-8R User's Manual System Fans Four 8-cm chassis cooling fans (located in the center of the chassis) provide cooling airfl ow while two 8-cm exhaust fans expel hot air from the chassis. The chassis is also fi tted with an air shroud to concentrate the fl ow of cooling air over the areas of highest generated heat.
  • Page 65 Chapter 6: Advanced Chassis Setup Figure 6-3. Removing a Chassis Fan Figure 6-4. Removing the Air Shroud...

  • Page 66: Drive Bay Installation

    A+ Server 4020A-8R User's Manual Drive Bay Installation SCSI Drives Eight SCSI drives may be housed in the SC743S1-R760 chassis. The SCSI drive IDs are preconfi gured as 0 through 7 in order from bottom to top (tower confi gura- tion) or from left to right (if rackmounted).
  • Page 67 Figure 6-5. Removing a SCSI Drive Carrier Figure 6-6. Mounting a SCSI Drive in a Carrier Important: Regardless of how many SCSI hard drives are in- stalled, all SCSI drive carriers must remain in the drive bays to promote proper airfl ow. 3.
  • Page 68 A+ Server 4020A-8R User's Manual Figure 6-7. SCSI Backplane Jumper Settings JP19: Buzzer Enable, Closed (On) Enabled (default), Open (Off): Disabled LEDs Drive Fail LEDs: Fail1, Fail2, Fail3, Fail4, Fail5, Fail6, Fail7, Fail8 Activity LEDs: ACT1, ACT2, ACT3, ACT4, ACT5, ACT6, ACT7, ACT8...

  • Page 69: Installing Components In The 5.25" Drive Bays

    Chapter 6: Advanced Chassis Setup Installing Components in the 5.25" Drive Bays 1. Drive bay confi guration The 4020A-8R has two 5.25" drive bays. Components such as an extra fl oppy drive, IDE hard drives or CD-ROM drives can be installed into these 5.25" drive bays. 2.

  • Page 70: Power Supply

    A+ Server 4020A-8R User's Manual Power Supply The AS 4020A-8R has a triple redundant 760 watt redundant cooling power sup- ply that consists of three 380W power modules. All three modules are active and share the load of the system (up to 760W max.). If any of the three modules fail, the other two will continue to provide up to 760W of power and allow the system to continue running without interruption.

  • Page 71: Chapter 7: Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMIBIOS™ Setup utility for the H8DA8. The AMI ROM BIOS is stored in a fl ash chip and can be easily upgraded using a fl oppy disk- based program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 72: Main Setup

    A+ Server 4020A-8R User's Manual Main Setup When you fi rst enter AMI BIOS Setup Utility, you will see the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main Setup screen provides you with a system overview, which includes the version, built date and ID of the AMIBIOS, the type, speed and number of the processors in the system and the amount of memory installed in the system.
  • Page 73 IDE Confi guration Onboard PCI IDE Controller The following options are available to set the IDE controller status: Disabled will dis- able the controller. Primary will enable the primary IDE controller only. Secondary will enable the secondary IDE controller only. Both will enable both the primary and the secondary IDE controllers.
  • Page 74 A+ Server 4020A-8R User's Manual data transfer rate of 3.3 MBs. Select 1 to allow AMI BIOS to use PIO mode 1 for a data transfer rate of 5.2 MBs. Select 2 to allow AMI BIOS to use PIO mode 2 for a data transfer rate of 8.3 MBs.
  • Page 75 Floppy Confi guration Floppy A Move the cursor to these fi elds via up and down <arrow> keys to select the fl oppy type. The options are Disabled, 360 KB 5 1/4", 1.2 MB 5 1/4", 720 KB 3½", 1.44 MB 3½”, and 2.88 MB 3½".
  • Page 76 A+ Server 4020A-8R User's Manual Parallel Port Address This option specifi es the I/O address used by the parallel port. Select Disabled to prevent the parallel port from accessing any system resources. When the value of this option is set to Disabled, the printer port becomes unavailable. Select 378 to allow the parallel port to use 378 as its I/O port address.
  • Page 77 BIOS --> AML ACPI Table When Enabled, BIOS-->AML exchange table pointer to be included in (X) REDT pointer list. Options are Enabled and Disabled. Headless Mode Select "Enabled" to activate the Headless Operation Mode through ACPI. The options are Enabled and Disabled. OS Console Redirection When "Enabled", BIOS provides additional options to select remote access type.
  • Page 78 A+ Server 4020A-8R User's Manual CPU0: CPU1 HT Link1 Width The HT link will run at the width specifi ed in this setting. Options are Auto, 2 bit, 4 bit, 8 bit and 16 bit. CPU0: PCI-X0 HT Link1 Speed The HT link will run at the speed specifi...

  • Page 79: System Health Monitor

    System Health Monitor CPU Overheat Temperature Use the "+" and "-" keys to set the CPU temperature threshold to between 65 and 90 C. When this threshold is exceeded, the overheat LED on the chassis will light up and an alarm will sound. The LED and alarm will turn off once the CPU temperature has dropped to 5 degrees below the threshold set.

  • Page 80: Pci/Pnp Menu

    A+ Server 4020A-8R User's Manual PCI/PnP Menu Plug & Play OS Select Yes to allow the OS to confi gure Plug & Play devices. (This is not required for system boot if your system has an OS that supports Plug & Play.) Select No to allow AMIBIOS to confi...

  • Page 81: Boot Menu

    Chapter 7: BIOS DMA Channel 0/Channel 1/Channel 3/Channel 5/Channel 6/Channel Select Available to indicate that a specifi c DMA channel is available to be used by a PCI/PnP device. Select Reserved if the DMA channel specifi ed is reserved for a Legacy ISA device.

  • Page 82: Boot Device Priority

    A+ Server 4020A-8R User's Manual Wait for ‘F1’ If Error Enable to activate the Wait for F1 if Error function. The options are Enabled and Disabled. Hit ‘DEL’ Message Display Enable to display the message telling the user to hit the DEL key to enter the setup utility.

  • Page 83: Security Menu

    Chapter 7: BIOS Floppy Drive and Disabled. CD/DVD Drives This feature allows the user to specify the boot sequence from available CDROM drives. 1st Drive Specifi es the boot sequence for the 1st Hard Drive. Security Menu AMI BIOS provides a Supervisor and a User password. If you use both passwords, the Supervisor password must be set fi...

  • Page 84: Chipset Menu

    A+ Server 4020A-8R User's Manual Chipset Menu North Bridge Confi guration Memory Confi guration Memclock Mode This setting determines how the memory clock is set. Auto has the memory clock set by the code and Limit allows the user to set a stan- dard value.
  • Page 85 ECC Confi guration DRAM ECC Enable DRAM ECC allows hardware to report and correct memory errors au- tomatically. Options are Enabled and Disabled. MCA DRAM ECC Logging When "Enabled", MCA DRAM ECC logging and reporting is enabled. Options are Enabled and Disabled. ECC Chipkill Allows the user to enabled ECC Chipkill.
  • Page 86 A+ Server 4020A-8R User's Manual South Bridge Confi guration 2.0 SMBus Controller Allows the user to Enable or Disable the SMBus controller. HT Link0 P-Comp Mode Allows user to set values for this mode. Options are Auto (hardware compensa- tion values), Data (allows user to override auto values with an absolute value), CalComp + Data (allows user to add to the generated value) and CalComp - Data (allows user to subtract from the generated value).
  • Page 87 Chapter 7: BIOS CalComp + Data (allows user to add to the generated value) and CalComp - Data (allows user to subtract from the generated value). HT Link0 RZ-Comp Mode Allows user to set values for this mode. Options are Auto (hardware compensa- tion values), Data (allows user to override auto values with an absolute value), CalComp + Data (allows user to add to the generated value) and CalComp - Data (allows user to subtract from the generated value).

  • Page 88: Power Menu

    A+ Server 4020A-8R User's Manual Power Menu Power Button Mode Allows the user to change the function of the power button. Options are Instant Off and 4-Sec. Delay. Restore on AC Power Loss This setting allows you to choose how the system will react when power returns after an unexpected loss of power.

  • Page 89: Exit Menu

    Chapter 7: BIOS Exit Menu Select the Exit tab from AMI BIOS Setup Utility screen to enter the Exit BIOS Setup screen. Save Changes and Exit When you have completed the system confi guration changes, select this option to leave BIOS Setup and reboot the computer, so the new system confi guration parameters can take effect.
  • Page 90 A+ Server 4020A-8R User's Manual Notes 7-20...

  • Page 91: Appendix A: Bios Error Beep Codes

    Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process. The error messages normally appear on the screen. Fatal errors are those which will not allow the system to continue the boot-up pro- cedure.
  • Page 92 A+ Server 4020A-8R User's Manual Notes...

  • Page 93: Appendix B: Bios Post Codes

    BIOS POST Codes When AMIBIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, diagnostic equipment can be attached to the computer to read I/O port 0080h. Uncompressed Initialization Codes The uncompressed initialization checkpoint codes are listed in order of execution: Checkpoint...
  • Page 94 A+ Server 4020A-8R User's Manual Bootblock Recovery Codes The bootblock recovery checkpoint codes are listed in order of execution: Checkpoint Code Description The onboard fl oppy controller if available is initialized. Next, beginning the base 512 KB memory test. Initializing the interrupt vector table next. Initializing the DMA and Interrupt controllers next.
  • Page 95 Uncompressed Initialization Codes The following runtime checkpoint codes are listed in order of execution. These codes are uncompressed in F0000h shadow RAM. Checkpoint Code Description The NMI is disabled. Next, checking for a soft reset or a power on condition. The BIOS stack has been built.
  • Page 96 A+ Server 4020A-8R User's Manual Checkpoint Code Description Interrupt vector initialization is done. Clearing the password if the POST DIAG switch is on. Any initialization before setting video mode will be done next. Initialization before setting the video mode is complete. Confi guring the mono- chrome mode and color mode settings next.
  • Page 97 Checkpoint Code Description The memory below 1 MB has been cleared via a soft reset. Clearing the memory above 1 MB next. The memory above 1 MB has been cleared via a soft reset. Saving the memory size next. Going to checkpoint 52h next. The memory test started, but not as the result of a soft reset.
  • Page 98 A+ Server 4020A-8R User's Manual Checkpoint Code Description The password was checked. Performing any required programming before WIN- BIOS Setup next. The programming before WINBIOS Setup has completed. Uncompressing the WINBIOS Setup code and executing the AMIBIOS Setup or WINBIOS Setup utility next.
  • Page 99 Checkpoint Code Description Returned from adaptor ROM at E000h control. Performing any initialization required after the E000 option ROM had control next. Initialization after E000 option ROM control has completed. Displaying the system confi guration next. Uncompressing the DMI data and executing DMI POST initialization next. The system confi...
  • Page 100 A+ Server 4020A-8R User's Manual Notes...

  • Page 101: Appendix C: System Specifi Cations

    Appendix C: System Specifi cations Appendix C System Specifi cations Processors Single or dual AMD Opteron™ 200 Series 64-bit processors in to 940-pin micro PGA ZIF sockets Chipset AMD 8131/8111 chipset BIOS 4 Mb AMIBIOS® Flash ROM Memory Capacity Eight 184-pin DIMM sockets supporting up to 32 GB of registered ECC DDR266 or up to 16 GB of registered ECC DDR400/333 SDRAM Note: Both interleaved and non-interleaved memory supported.
  • Page 102 A+ Server 4020A-8R User's Manual Serverboard Model: H8DA8 Form Factor: Extended ATX Dimensions: 12 x 13.05 in (305 x 332 mm) Chassis Model: SC743S1-R760 Form Factor: tower/4U rackmount Dimensions: (WxHxD as tower) 7 x 17.1 x 25.5 in. (178 x 434 x 648 mm) Weight Gross (Bare Bone): 70 lbs.
  • Page 103 Appendix C: System Specifi cations Regulatory Compliance Electromagnetic Emissions: FCC Class B, EN 55022 Class B, EN 61000-3-2/-3-3, CISPR 22 Class B Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Safety: EN 60950/IEC 60950-Compliant, UL Listed (USA), CUL Listed (Canada), TUV Certifi...
  • Page 104 A+ Server 4020A-8R User's Manual Notes...
