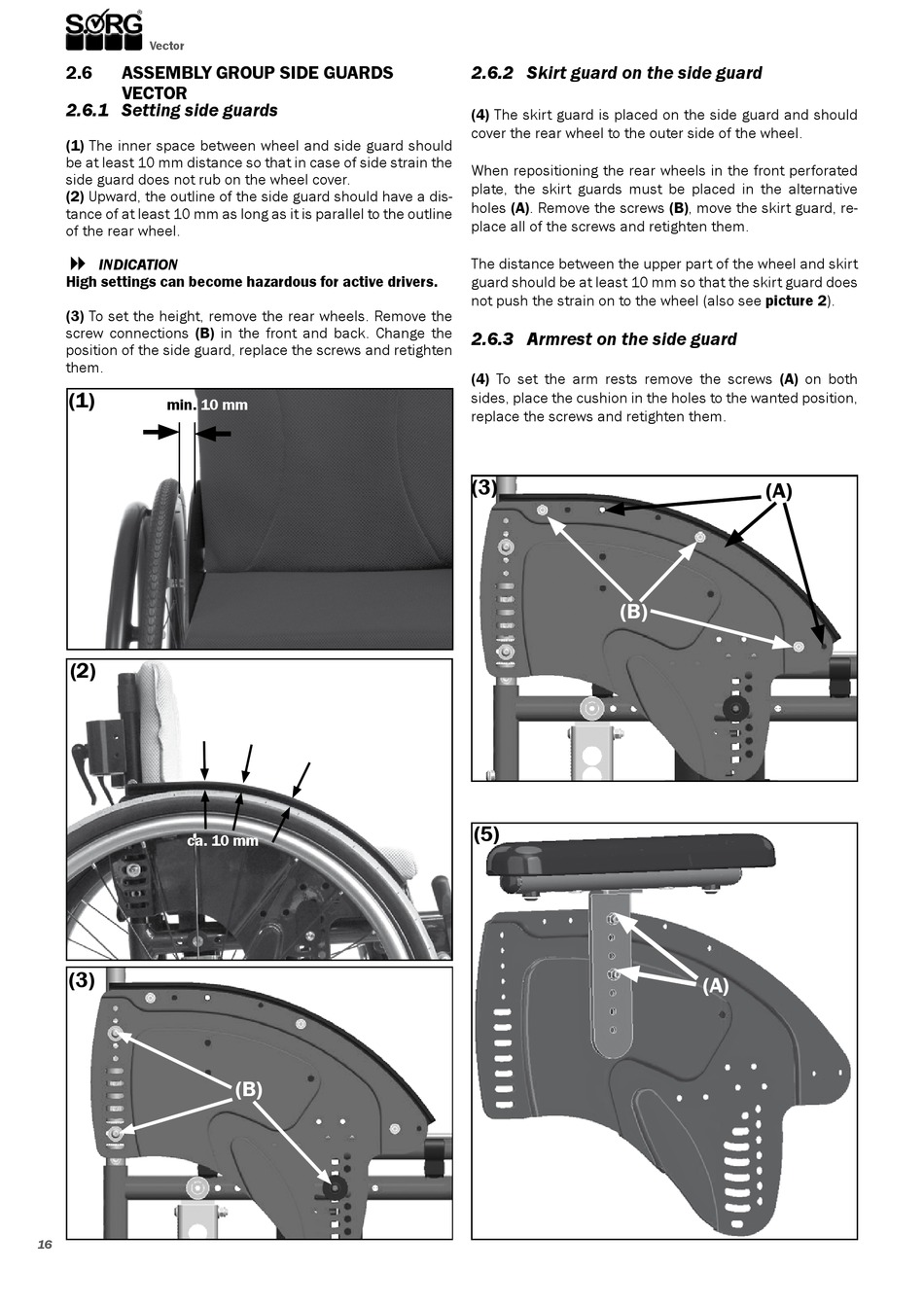

ASSEMBLY GROUP SIDE GUARDS

VECTOR

2.6.1 Setting side guards

(1) The inner space between wheel and side guard should
be at least 10 mm distance so that in case of side strain the
side guard does not rub on the wheel cover.
(2) Upward, the outline of the side guard should have a dis-
tance of at least 10 mm as long as it is parallel to the outline
of the rear wheel.
INDICATION
High settings can become hazardous for active drivers.
(3) To set the height, remove the rear wheels. Remove the
screw connections (B) in the front and back. Change the
position of the side guard, replace the screws and retighten
them.
(1)
min.
10 mm
(2)
ca. 10 mm
(3)
16
(B)

2.6.2 Skirt guard on the side guard

(4) The skirt guard is placed on the side guard and should
cover the rear wheel to the outer side of the wheel.
When repositioning the rear wheels in the front perforated
plate, the skirt guards must be placed in the alternative
holes (A). Remove the screws (B), move the skirt guard, re-
place all of the screws and retighten them.
The distance between the upper part of the wheel and skirt
guard should be at least 10 mm so that the skirt guard does
not push the strain on to the wheel (also see picture 2).

2.6.3 Armrest on the side guard

(4) To set the arm rests remove the screws (A) on both
sides, place the cushion in the holes to the wanted position,
replace the screws and retighten them.
(3)
(B)
(5)
(A)
(A)
