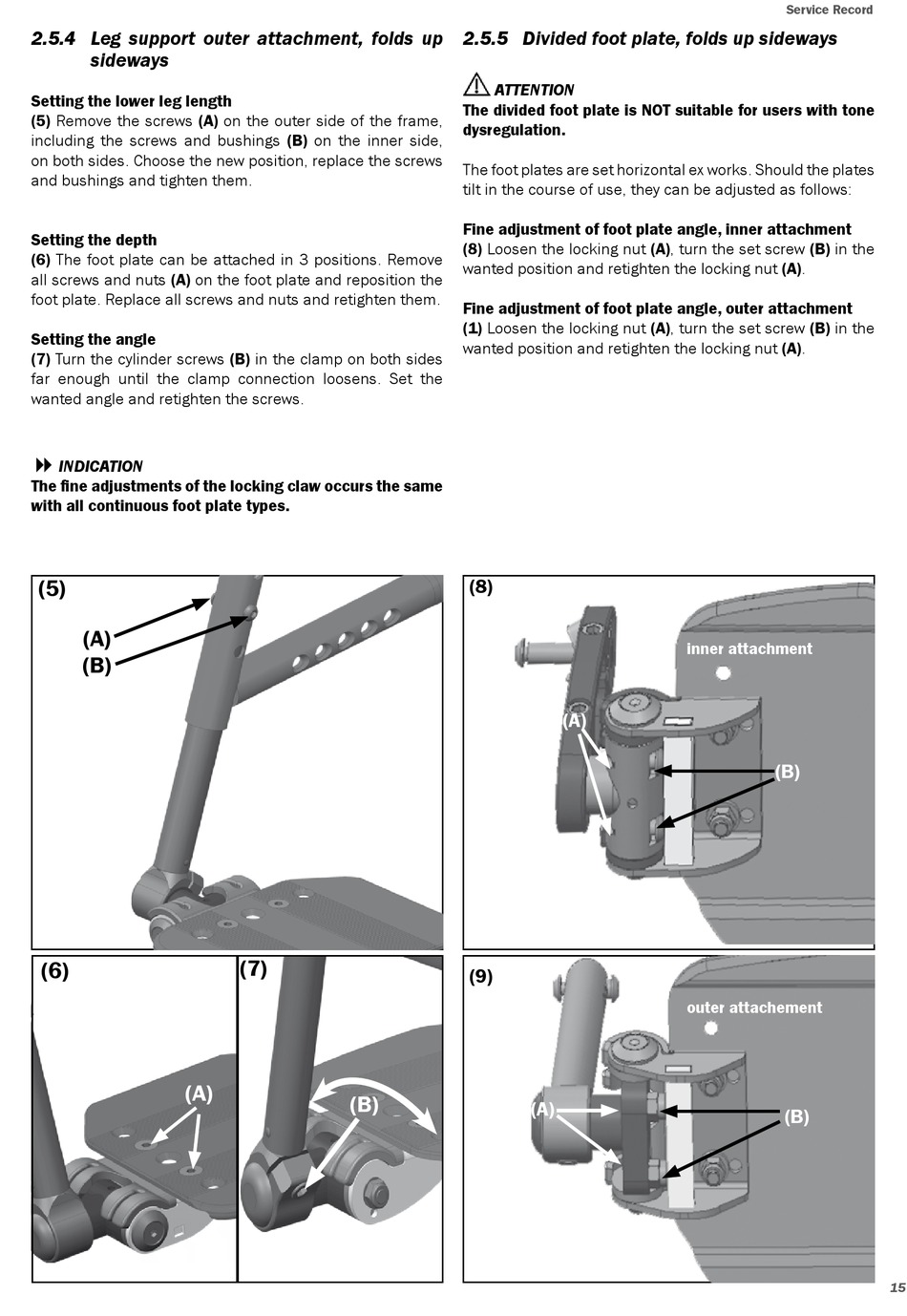

2.5.4 Leg support outer attachment, folds up
sideways
Setting the lower leg length
(5) Remove the screws (A) on the outer side of the frame,
including the screws and bushings (B) on the inner side,
on both sides. Choose the new position, replace the screws
and bushings and tighten them.
Setting the depth
(6) The foot plate can be attached in 3 positions. Remove
all screws and nuts (A) on the foot plate and reposition the
foot plate. Replace all screws and nuts and retighten them.
Setting the angle
(7) Turn the cylinder screws (B) in the clamp on both sides
far enough until the clamp connection loosens. Set the
wanted angle and retighten the screws.
�
INDICATION
The fine adjustments of the locking claw occurs the same
with all continuous foot plate types.
(5)
(A)
(B)
(6)
(A)
(7)
(B)

2.5.5 Divided foot plate, folds up sideways

ATTENTION
The divided foot plate is NOT suitable for users with tone
dysregulation.
The foot plates are set horizontal ex works. Should the plates
tilt in the course of use, they can be adjusted as follows:
Fine adjustment of foot plate angle, inner attachment
(8) Loosen the locking nut (A), turn the set screw (B) in the
wanted position and retighten the locking nut (A).
Fine adjustment of foot plate angle, outer attachment
(1) Loosen the locking nut (A), turn the set screw (B) in the
wanted position and retighten the locking nut (A).
(8)
(A)
(9)
(A)
Service Record
inner attachment
(B)
outer attachement
(B)
15
