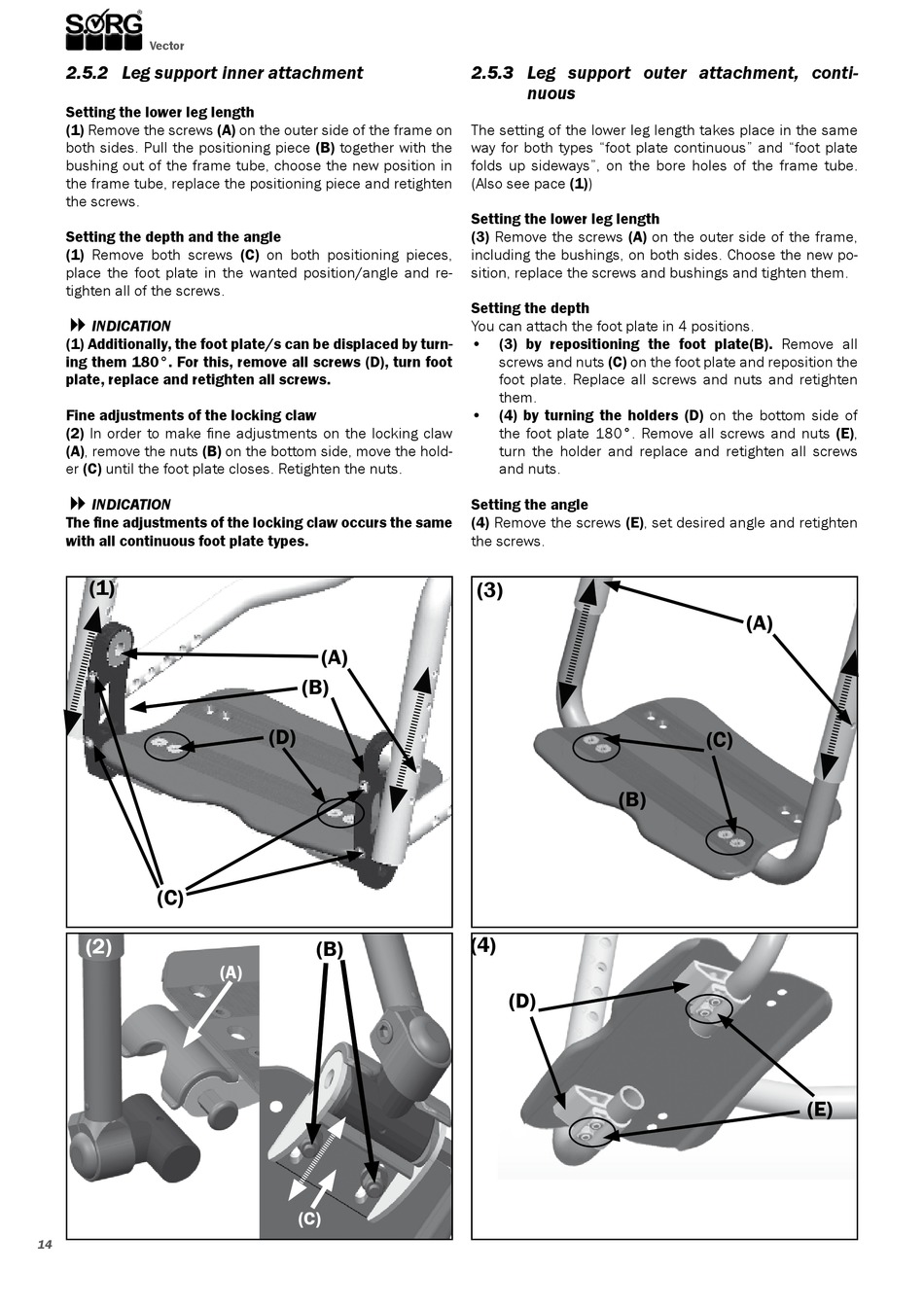

2.5.2 Leg support inner attachment

Setting the lower leg length
(1) Remove the screws (A) on the outer side of the frame on
both sides. Pull the positioning piece (B) together with the
bushing out of the frame tube, choose the new position in
the frame tube, replace the positioning piece and retighten
the screws.
Setting the depth and the angle
(1) Remove both screws (C) on both positioning pieces,
place the foot plate in the wanted position/angle and re-
tighten all of the screws.
INDICATION
(1) Additionally, the foot plate/s can be displaced by turn-
ing them 180°. For this, remove all screws (D), turn foot
plate, replace and retighten all screws.
Fine adjustments of the locking claw
(2) In order to make fine adjustments on the locking claw
(A), remove the nuts (B) on the bottom side, move the hold-
er (C) until the foot plate closes. Retighten the nuts.
INDICATION
The fine adjustments of the locking claw occurs the same
with all continuous foot plate types.
(1)
(C)
(2)
14
(A)
(B)
(D)
(B)
(A)
(C)
2.5.3 Leg support outer attachment, conti-
nuous
The setting of the lower leg length takes place in the same
way for both types "foot plate continuous" and "foot plate
folds up sideways", on the bore holes of the frame tube.
(Also see pace (1))
Setting the lower leg length
(3) Remove the screws (A) on the outer side of the frame,
including the bushings, on both sides. Choose the new po-
sition, replace the screws and bushings and tighten them.
Setting the depth
You can attach the foot plate in 4 positions.
(3) by repositioning the foot plate(B). Remove all
screws and nuts (C) on the foot plate and reposition the
foot plate. Replace all screws and nuts and retighten
them.
(4) by turning the holders (D) on the bottom side of
the foot plate 180°. Remove all screws and nuts (E),
turn the holder and replace and retighten all screws
and nuts.
Setting the angle
(4) Remove the screws (E), set desired angle and retighten
the screws.
(3)
(B)
(4)
(D)
(A)
(C)
(E)
