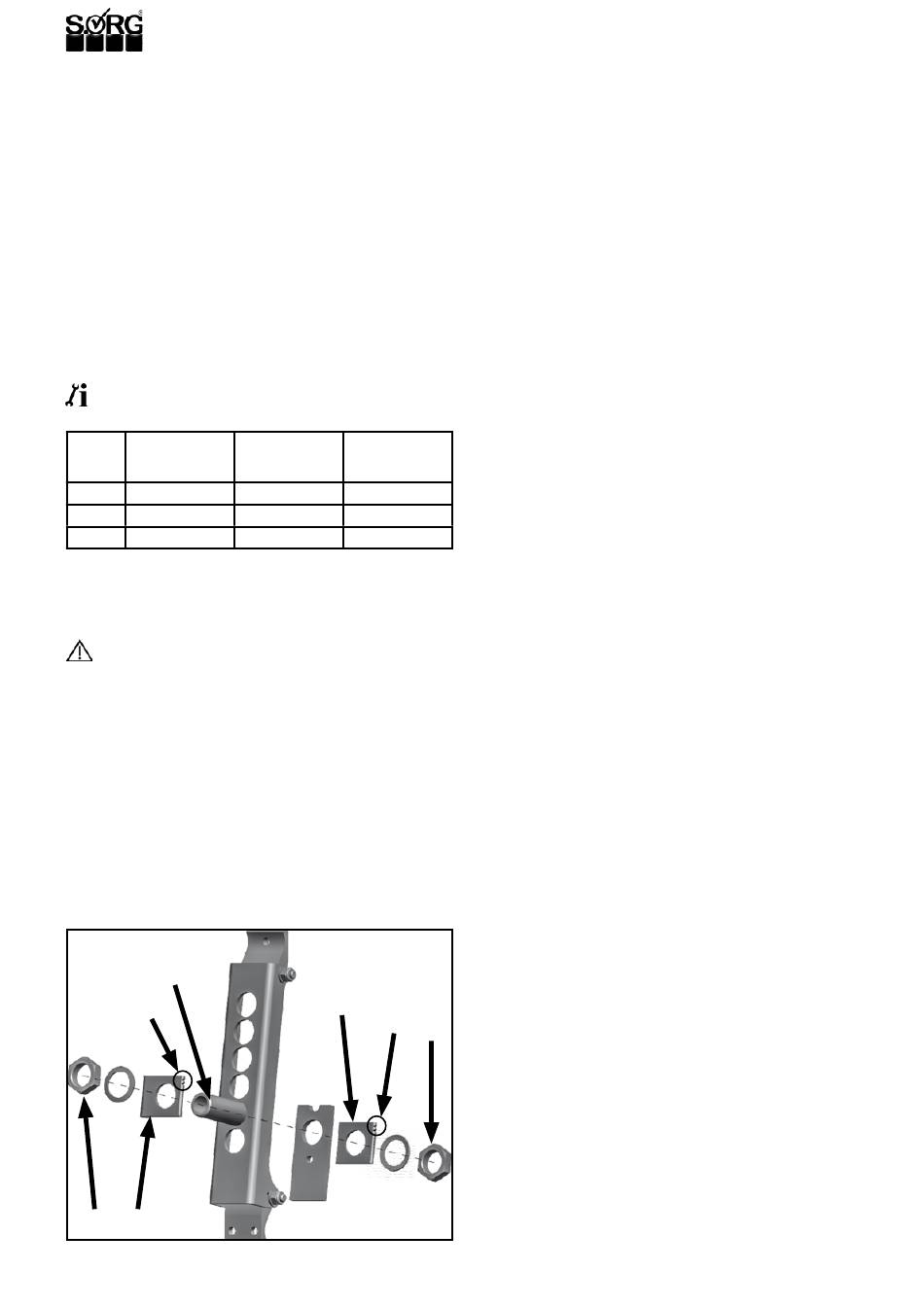

2.3.7 Rear wheel track balance

If you have to change the camber and/or the seat slant you
must, in order to avoid the so called "eraser effect", mount
appropriate wedge plates for the track balance.
To change/set the wedge plate;
• (1) remove the screws (A) of the quick-release axle
fittings (D) (also on the inside),
• apply the needed wedge plate/s (B),
• the mounting grooves (C) must point forward in
driving direction,
• replace all other washers
• and retighten the screws (A) of the quick-release
axle fittings (D) (also on the inside)
(turning point 35 Nm).
INFORMATION
Use the following chart the help you:
camber without seat slant
2° washer 0°
4°-8° washer 0°
11° washer 0°
**If necessary, apply 2 sets of plates (2 x inner plate mount-
ed on the inside, 1x outer plate+ 1x inner plate mounted on
the outside)
ATTENTION
You must check the functionality of the knee lever brake
and if necessary reset it.
(1)
(D)
(C)
(A) (B)
10
normal seat slant strong seat slant (>
(< 5°)* 5°)*
washer 0° wedge plate 0,5°
wedge plate0,5° wedge plate 1°
wedge plate 1° wedge plate 1°**
(B)
(C)
The picture shows in driving
direction the perforated plate
on the right.
(A)
