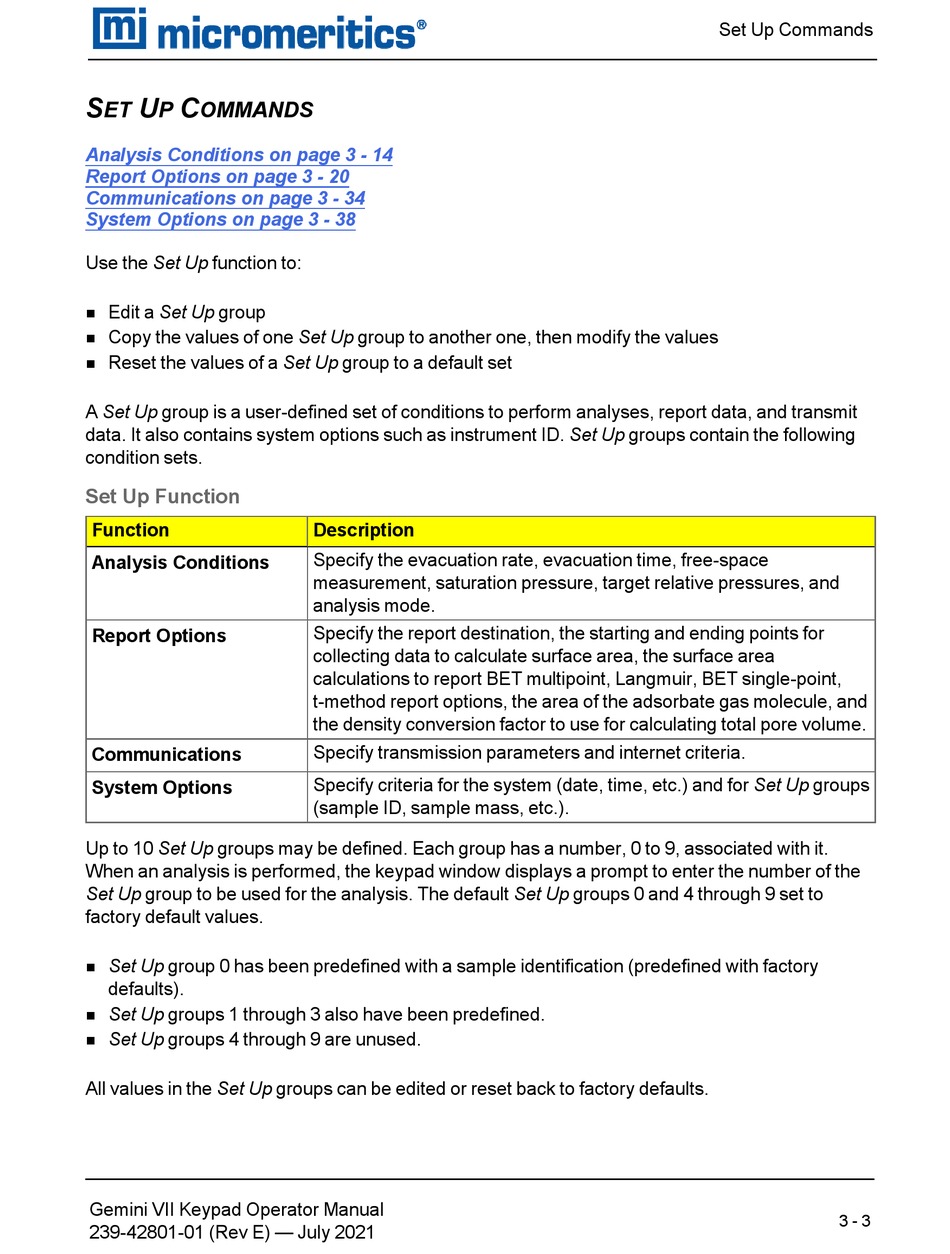

Set Up Commands - Micromeritics GEMINI VII KEYPAD Operator's Manual

S U C
ET P OMMANDS
Analysis Conditions on page 3 - 14
Report Options on page 3 - 20
Communications on page 3 - 34
System Options on page 3 - 38
Use the Set Up function to:
Edit a Set Up group
n
Copy the values of one Set Up group to another one, then modify the values
n
Reset the values of a Set Up group to a default set
n
A Set Up group is a user-defined set of conditions to perform analyses, report data, and transmit
data. It also contains system options such as instrument ID. Set Up groups contain the following
condition sets.
Set Up Function
Function
Analysis Conditions
Report Options
Communications
System Options
Up to 10 Set Up groups may be defined. Each group has a number, 0 to 9, associated with it.
When an analysis is performed, the keypad window displays a prompt to enter the number of the
Set Up group to be used for the analysis. The default Set Up groups 0 and 4 through 9 set to
factory default values.
Set Up group 0 has been predefined with a sample identification (predefined with factory
n
defaults).
Set Up groups 1 through 3 also have been predefined.
n
Set Up groups 4 through 9 are unused.
n
All values in the Set Up groups can be edited or reset back to factory defaults.
Gemini VII Keypad Operator Manual
239-42801-01 (Rev E) — July 2021
Description
Specify the evacuation rate, evacuation time, free-space
measurement, saturation pressure, target relative pressures, and
analysis mode.
Specify the report destination, the starting and ending points for
collecting data to calculate surface area, the surface area
calculations to report BET multipoint, Langmuir, BET single-point,
t-method report options, the area of the adsorbate gas molecule, and
the density conversion factor to use for calculating total pore volume.
Specify transmission parameters and internet criteria.
Specify criteria for the system (date, time, etc.) and for Set Up groups
(sample ID, sample mass, etc.).

Set Up Commands

3 - 3
