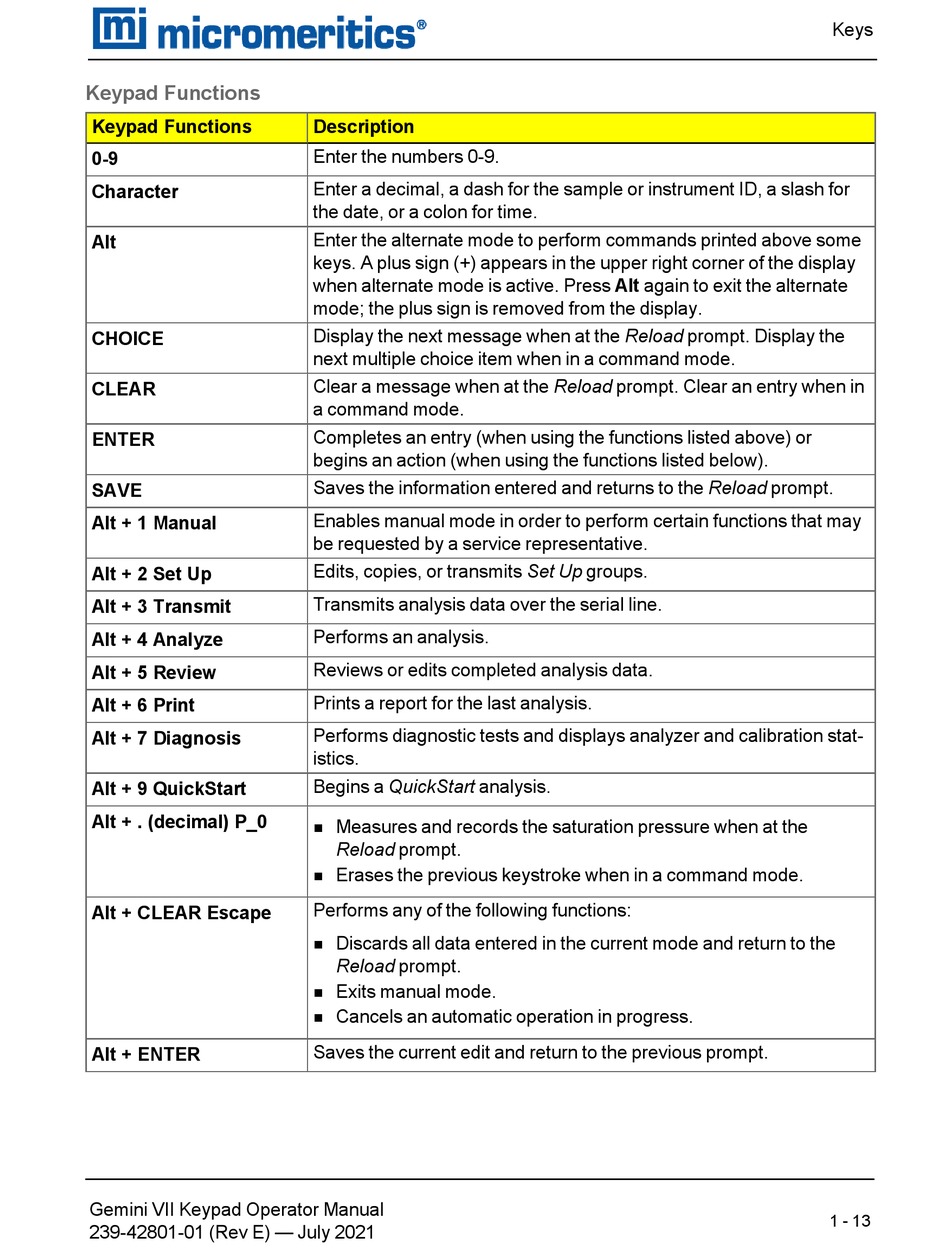

Keypad Functions
Keypad Functions
0-9
Character
Alt
CHOICE
CLEAR
ENTER
SAVE
Alt + 1 Manual
Alt + 2 Set Up
Alt + 3 Transmit
Alt + 4 Analyze
Alt + 5 Review
Alt + 6 Print
Alt + 7 Diagnosis
Alt + 9 QuickStart
Alt + . (decimal) P_0
Alt + CLEAR Escape
Alt + ENTER
Gemini VII Keypad Operator Manual
239-42801-01 (Rev E) — July 2021
Description
Enter the numbers 0-9.
Enter a decimal, a dash for the sample or instrument ID, a slash for
the date, or a colon for time.
Enter the alternate mode to perform commands printed above some
keys. A plus sign (+) appears in the upper right corner of the display
when alternate mode is active. Press Alt again to exit the alternate
mode; the plus sign is removed from the display.
Display the next message when at the Reload prompt. Display the
next multiple choice item when in a command mode.
Clear a message when at the Reload prompt. Clear an entry when in
a command mode.
Completes an entry (when using the functions listed above) or
begins an action (when using the functions listed below).
Saves the information entered and returns to the Reload prompt.
Enables manual mode in order to perform certain functions that may
be requested by a service representative.
Edits, copies, or transmits Set Up groups.
Transmits analysis data over the serial line.
Performs an analysis.
Reviews or edits completed analysis data.
Prints a report for the last analysis.
Performs diagnostic tests and displays analyzer and calibration stat-
istics.
Begins a QuickStart analysis.
Measures and records the saturation pressure when at the
n
Reload prompt.
Erases the previous keystroke when in a command mode.
n
Performs any of the following functions:
Discards all data entered in the current mode and return to the
n
Reload prompt.
Exits manual mode.
n
Cancels an automatic operation in progress.
n
Saves the current edit and return to the previous prompt.
Keys
1 - 13
