1 Analyzer Components
K W
EYPAD INDOW
K W
EYPAD INDOW

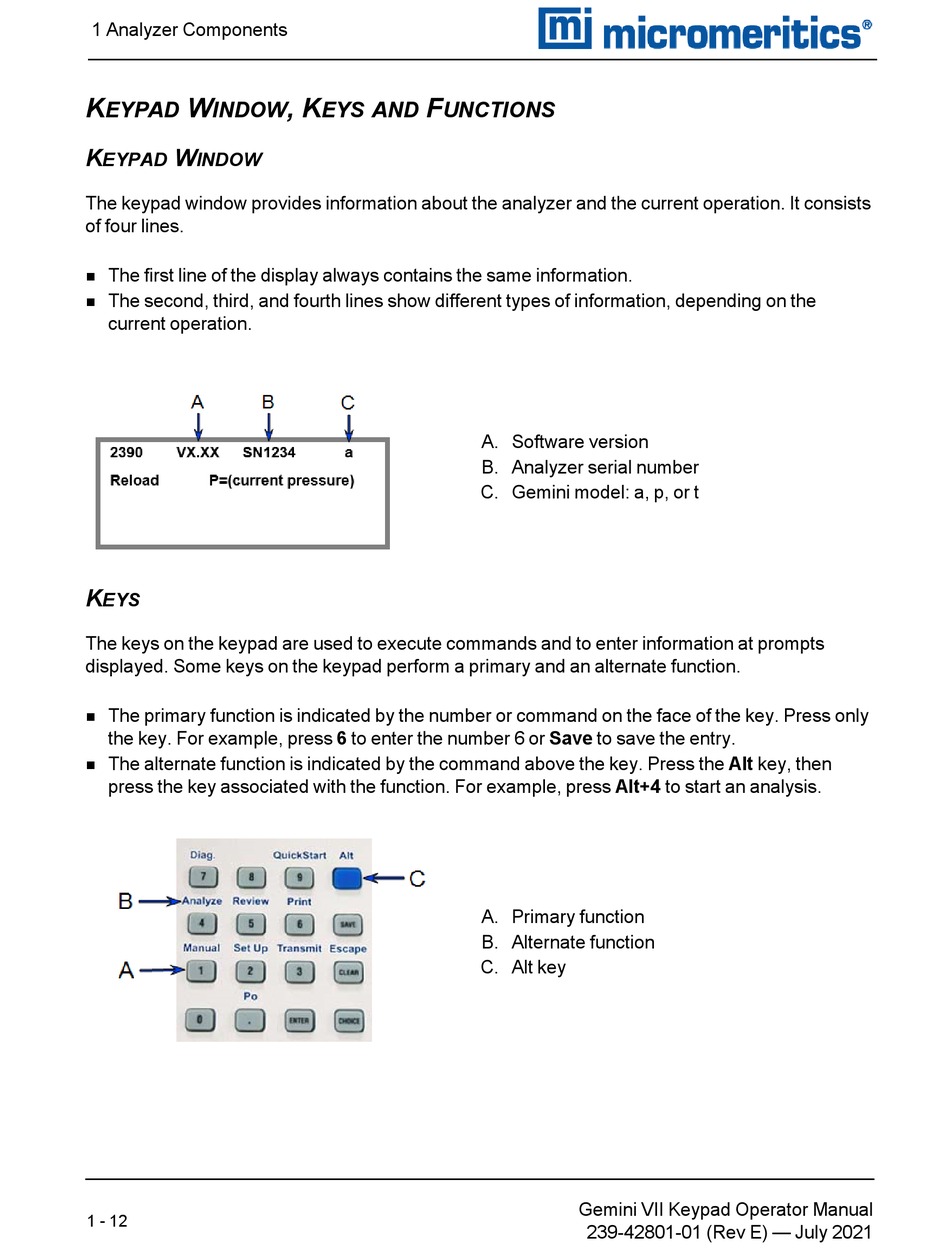

The keypad window provides information about the analyzer and the current operation. It consists
of four lines.
The first line of the display always contains the same information.
n
The second, third, and fourth lines show different types of information, depending on the
n
current operation.
K
EYS
The keys on the keypad are used to execute commands and to enter information at prompts
displayed. Some keys on the keypad perform a primary and an alternate function.
The primary function is indicated by the number or command on the face of the key. Press only
n
the key. For example, press 6 to enter the number 6 or Save to save the entry.
The alternate function is indicated by the command above the key. Press the Alt key, then
n
press the key associated with the function. For example, press Alt+4 to start an analysis.
1 - 12
, K F
EYS AND UNCTIONS
A. Software version
B. Analyzer serial number
C. Gemini model: a, p, or t
A. Primary function
B. Alternate function
C. Alt key
Gemini VII Keypad Operator Manual
239-42801-01 (Rev E) — July 2021
