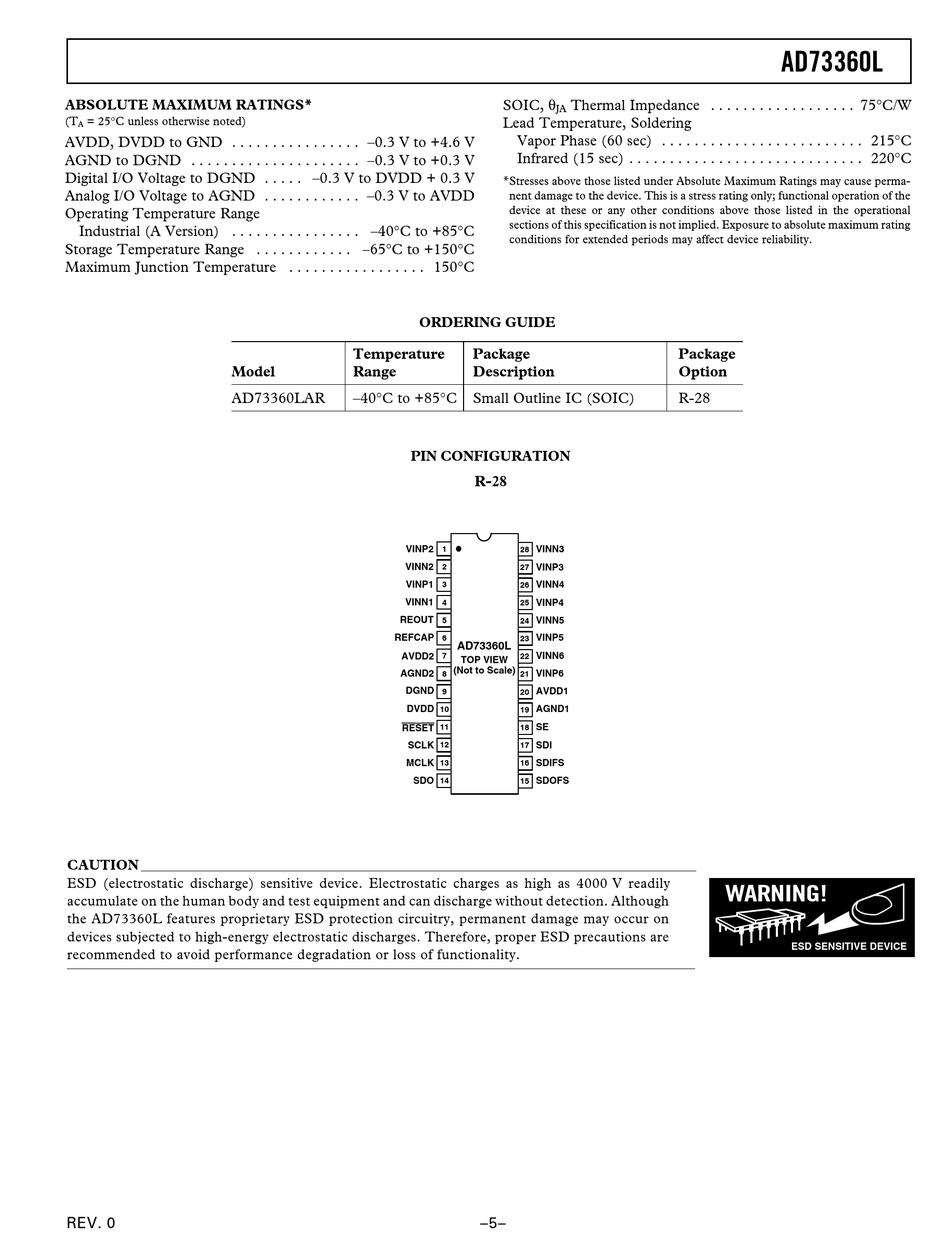

ABSOLUTE MAXIMUM RATINGS*

(T = 25°C unless otherwise noted)
A
AVDD, DVDD to GND . . . . . . . . . . . . . . . . –0.3 V to +4.6 V
AGND to DGND . . . . . . . . . . . . . . . . . . . . . –0.3 V to +0.3 V
Digital I/O Voltage to DGND . . . . . –0.3 V to DVDD + 0.3 V
Analog I/O Voltage to AGND . . . . . . . . . . . . –0.3 V to AVDD
Operating Temperature Range
Industrial (A Version) . . . . . . . . . . . . . . . . –40°C to +85°C
Storage Temperature Range . . . . . . . . . . . . –65°C to +150°C
Maximum Junction Temperature . . . . . . . . . . . . . . . . . 150°C
Model
AD73360LAR
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection. Although
the AD73360L features proprietary ESD protection circuitry, permanent damage may occur on
devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are
recommended to avoid performance degradation or loss of functionality.
REV. 0
SOIC, θ
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220°C
*Stresses above those listed under Absolute Maximum Ratings may cause perma-
nent damage to the device. This is a stress rating only; functional operation of the
device at these or any other conditions above those listed in the operational
sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect device reliability.

ORDERING GUIDE

Temperature Package
Range Description
–40°C to +85°C Small Outline IC (SOIC)

PIN CONFIGURATION

R-28
VINP2 1 28
VINN2
2 27
VINP1
3 26
VINN1 4
25
REOUT
5
24
REFCAP
6 23
AD73360L
AVDD2
7 22
TOP VIEW
(Not to Scale)
AGND2
8 21
DGND
9
20
DVDD
10
19
RESET
11 18
SCLK
12 17
MCLK
13 16
SDO 14
15
–5–
Thermal Impedance . . . . . . . . . . . . . . . . . . 75°C/W
JA
Package
Option
R-28
VINN3
VINP3
VINN4
VINP4
VINN5
VINP5
VINN6
VINP6
AVDD1
AGND1
SE
SDI
SDIFS
SDOFS
AD73360L
WARNING!
ESD SENSITIVE DEVICE
