the OTG device is attached: when USB_ID is kept open (high level by default), SC650T is in USB slave
mode; if USB_ID is connected to ground, it is in OTG mode and USB_VBUS is used to supply power for
peripherals with maximum output of 5V/1A.

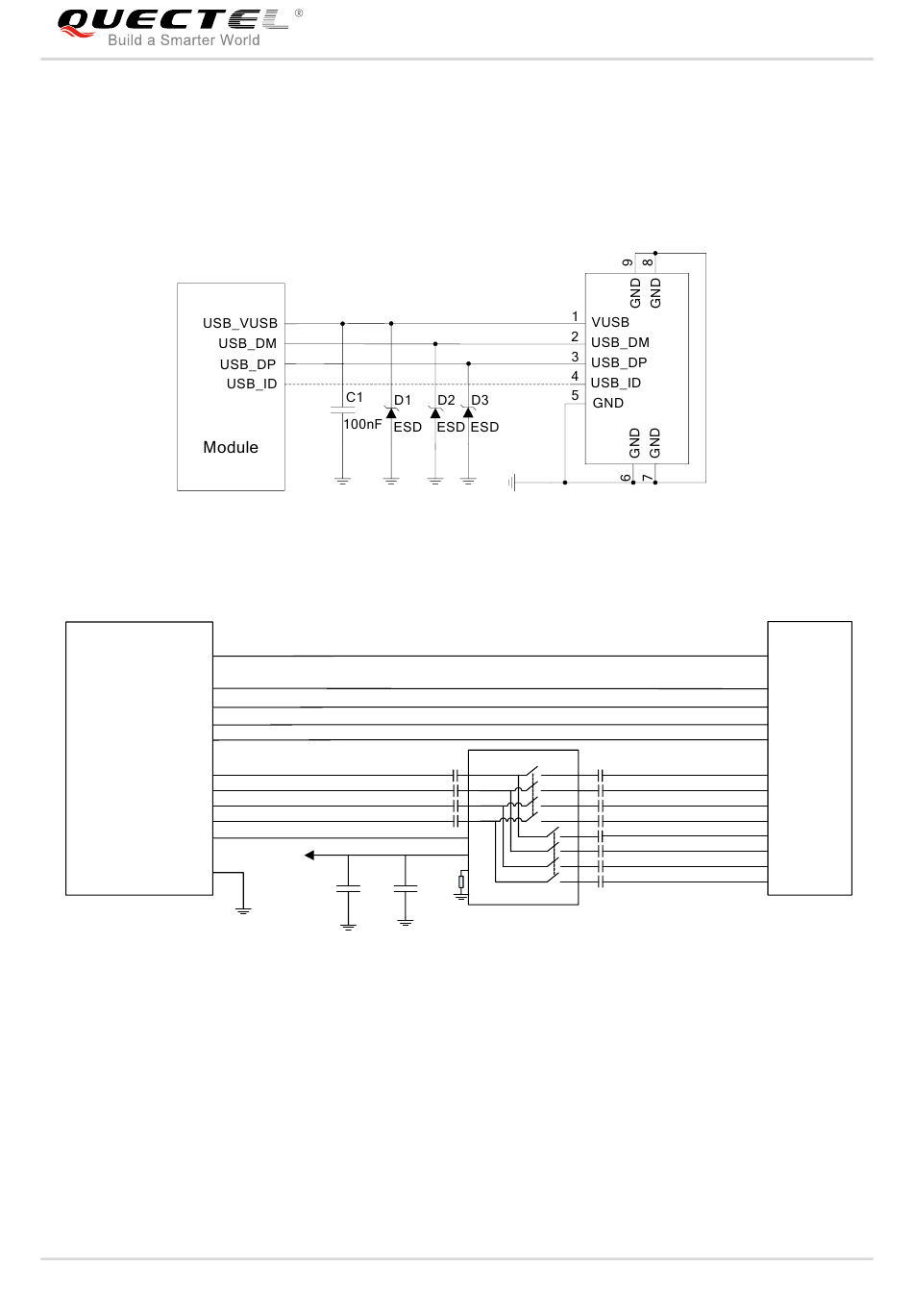

The following is a reference design for USB interface:
Module
USB_ VBUS
USB_DM
USB_DP
CC1
CC2
USB_SS_TX_P
USB_SS_TX_M
USB_SS_RX_P
USB_SS_RX_M
CC_OUT
In order to ensure USB performance, please follow the following principles while designing USB interface.

It is important to route the USB signal traces as differential pairs with total grounding. The impedance
of USB differential trace is 90Ω.

Pay attention to the influence of junction capacitance of ESD protection devices on USB data lines.
Typically, the capacitance value should be less than 2pF for USB 2.0 and less than 0.5pF for USB
3.0.

Do not route signal traces under crystals, oscillators, magnetic devices and RF signal traces. It is
