Dialog Sounds settings allows user to select the sound mode of program. Program
generates sounds after some activities, e.g. activities on device (programming,
verifying, reading, etc.). Program generates sound also when warning or error message
is displayed. User can now select sound from MS Windows system sound (requires
installed sound card), PC speaker or No sound.
The check box "Use beep sound on touch screen press" allows to switch beep sound on
or off. When the checkbox is checked, beep sound will be generated on each touch
screen press, that software detects. Otherwise no beep sound will be generated.

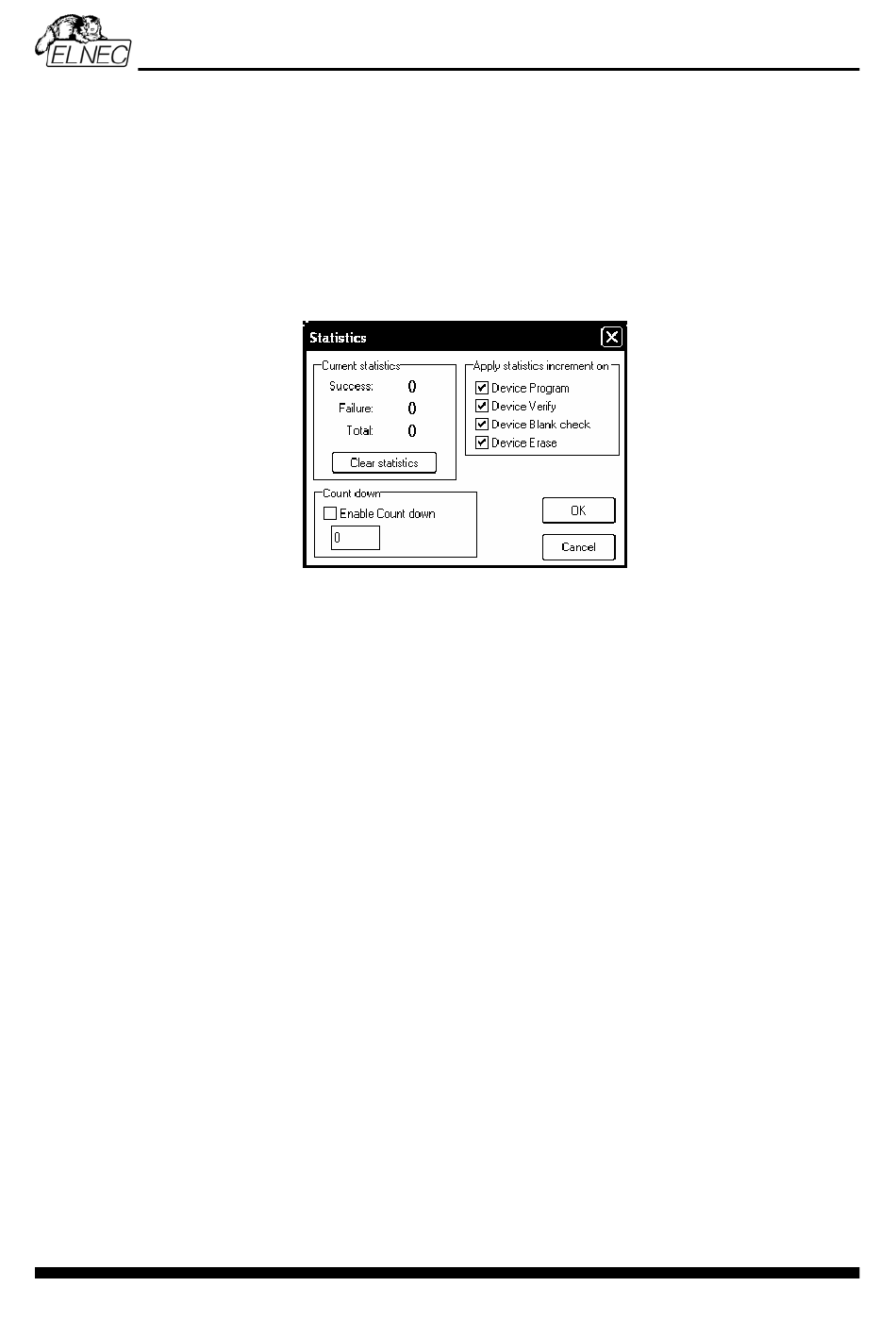

Options / Statistics...
Command displays dialog "Statistics". Statistics gives the information about actual
count of device operations, which were proceeded on selected type device. If one
device is corresponding to one device operation, e.g. programming, the number of
device operations will be equal to the number of programmed devices. Statistics dialog
contains following options:
Check boxes: Program, Verify, Blank and Erase which define operations, after which
statistics values increment.
A ny selected and performed device operation will increment the
of the Success or Failure counters depending on device operation result (success or
failure).
A combination of partial operations is counted as one operation only. For example, a
Read operation including Verify after Read is one operation. A Program operation
including Erase and/or Verify operations is counted as one operation.
The next function of statistics is Count down
n umber of device operations, and then the number of devices, on which device
operations have to be done. After each successful device operation the value of count
down counter is decremented. Count down has user defined start number for devices to
do. When count down value reach zero, it means, the specified number of devices is
complete and a user message about complete count down will be displayed.
Check box Enable Count down sets Count down activity (enable or disable). Edit box
following the Enable Count down check box defines initial number of count down
counter, from which count down starts.
Actual statistics values are displaying in main window of control program in Statistics
p anel.
. Count down allows checking of the
