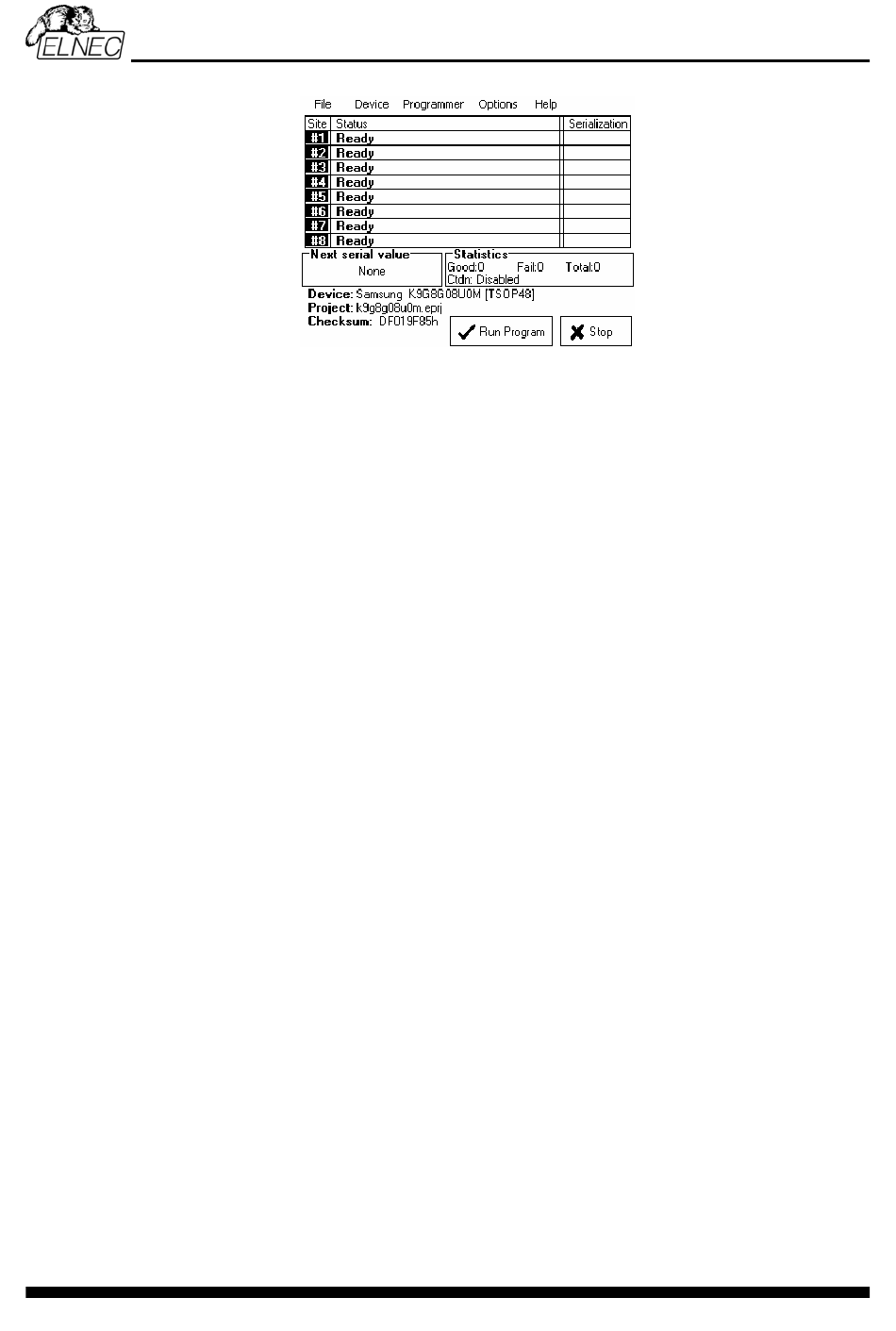

LCD main screen
Main screen consists of following parts:
• Menu / File Device Programmer Options Help |
• Table with information about programmer sites (site and serialization status)
• Panel Next serial value
• Panel Statistics
• Recently selected device name
• Recent project name
• Checksum of data stored in data buffer for currently selected device
• Run button... ( ... can be operation name, for example Program, Verify, Erase)
• Stop button
Menu / File Device Programmer Options Help |
Each menu item represents one menu command. For detailed information about menu
commands, refer to menu commands description chapter.
Table with information about programmer sites (site and serialization status)
Table contains key information about current
serialization information for each Site. If
c olumn remains empty. Sites that are not connected, have '–' displa
column. Connected Sites have their Status
• Ready
means the programmer site is connected and ready to start any
operation
• Present
special status of connected Site, means the site is connected but it is
also not selected (checked in dialog Select Sites). User selected device
or project operations will not run on (unselected) Sites. User can set
Site selection in dialog 'Select Sites' accessible by menu command
Programmer / Select Enabled Sites.
• No project file is loaded
project file is loaded. It also means that no device is selected. The
recommended action is "Load project".
• other text
describes current status of Site(s), for example:
means the Site is successfully connected but no
'Loading data from disk to buffer'
'Programming device... 85%
'Programming device... OK
'Please insert a new device into socket'
24
status of programmer sites and
serialization is not used, the Serialization
displayed. Following are typical values:
