Elnec BeeHive8S User Manual page 26

ELNEC s.r.o.

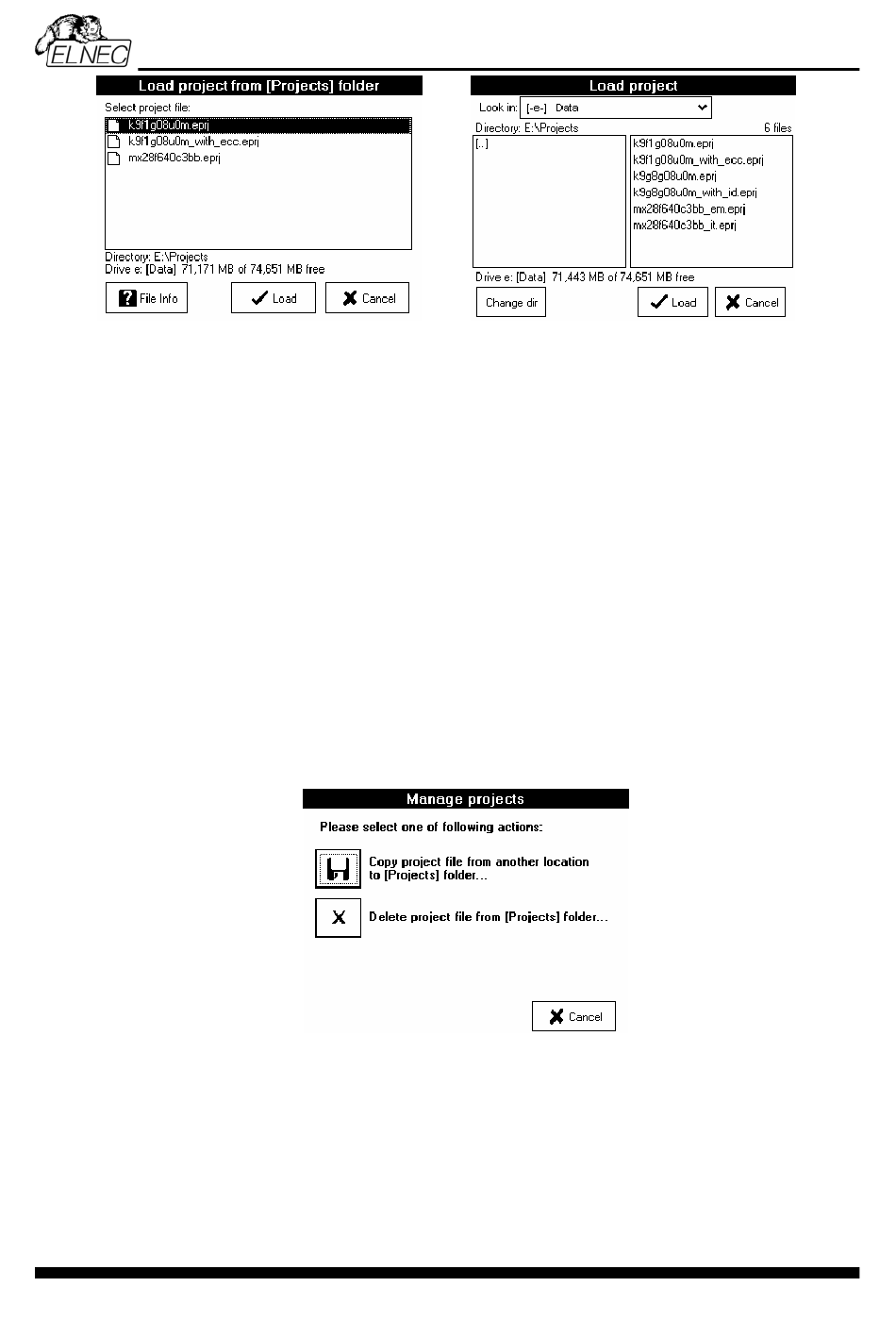

When option 1 is selected, dialog with list of project files present in [Projects] folder will
appear. User can sele ct desired project and load the project by clicking on 'Load'
button. Dialog can be closed by 'Ca ncel' button. Also basic information about selected
p roject file can be displayed by clicking 'File info' button.
W hen option 2 is selected, a dialog with list of project files at specified drive and folder
will appear. User can select desired drive, folder and project file and load the pro ject by
clicking on 'Load' button. 'Change dir' button is used to change current directory to
directory selected in 'Directory' list on the left side of dialog. When folder [..] is selected,
'Cha nge dir' button jump up from current directory one level (one folder) up.
Note: The drive combo box is automatically refreshed each time it is dropped down. It is
useful for loading project files f rom USB key which can be plugged temporarily into USB
port of stand alone programmer and consequently new drive letter assigned with USB
key will appear in list of available drives.
File / Manage projects
Manage pr oject dialog offers two options:
1. Copy project file from another location to [Projects] folder...
2. Delete project file from [Projects] folde r...
26
