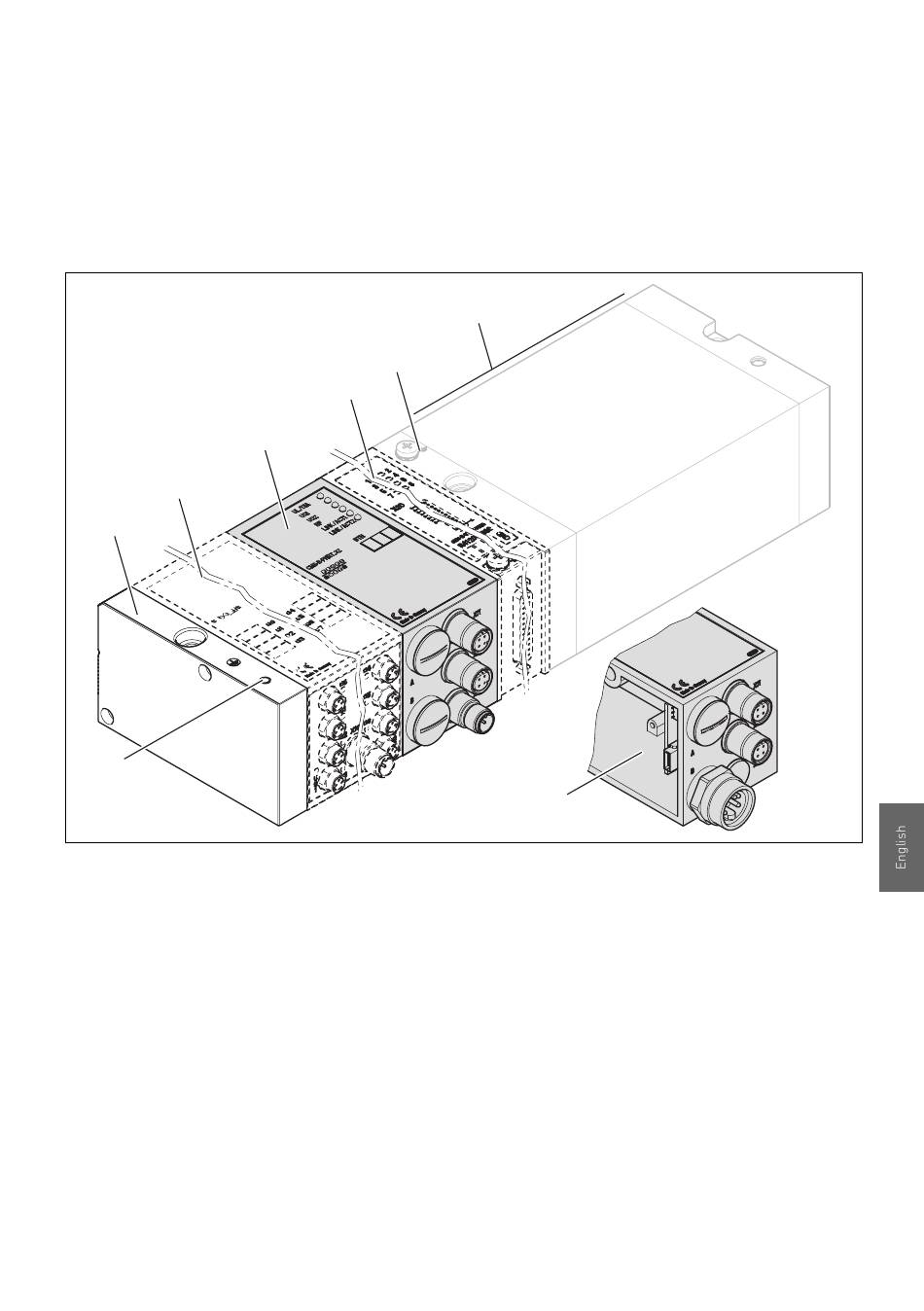

Fig. 1: Overview: bus coupler sample configuration with I/O modules and valve terminal
1 Left end plate
1)
2 Output module or input module
3 Bus coupler, B-Design with M12 plug
4 B-Design stand-alone module extension
5 FE connection
2)
6 Valve terminal
7 Alternative FE connection using the screw from (5)
8 Bus coupler, B-Design with 7/8" plug
1)
Up to 6 modules (input or output modules) can be connected in any combination (e.g. 3 input and 3 output modules).
2)
With separate operating instructions.
3)
Up to 3 modules (module extensions) can be integrated in any combination.
AVENTICS | PROFINET-IO | R412015162–BDL–001–AE
4.3

Overview of valve system and modules

The valve system consists of the following parts as illustrated
in Fig. 1 (depending on the order):
