Aventics PRA Series Repair Instructions

AVENTICS GmbH
Ulmer Straße 4
30880 Laatzen
Phone +49 (0) 5 11-21 36-949
Fax: +49 (0) 511-21 36-505
www.aventics.com
spareparts.aventics@emerson.com
Further addresses:
www.aventics.com/contact
The data specified above only serve to
describe the product. No statements
concerning a certain condition or suitability
for a certain application can be derived from
our information. The given information does
not release the user from the obligation of
own judgement and verification. It must be
remembered that our products are subject
to a natural process of wear and aging.
An example configuration is depicted on the
title page. The delivered product may thus
vary from that in the illustration.
Translation of the original operating
instructions. The original operating
instructions were created in the German
language.
R413001012–RAW–001–AA/12.2019
Subject to modifications. © All rights
reserved by AVENTICS GmbH, even and
especially in cases of proprietary rights
applications. It may not be reproduced or
given to third parties without its consent.

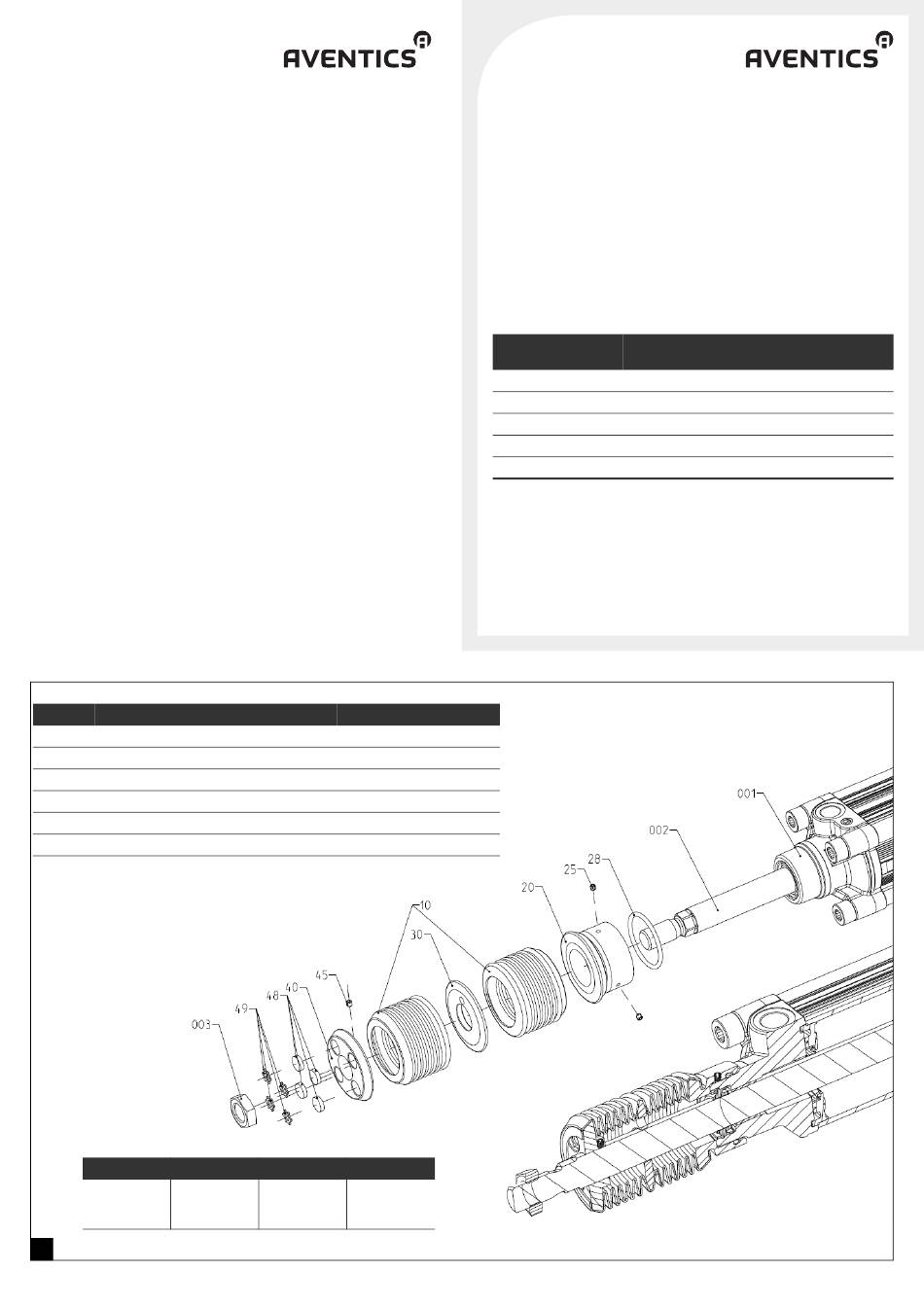

Tabelle 1 / Table 1
Pos. / No. Beschreibung / Description
10 FALTENBALG / BELLOWS
25 GEWINDESTIFT / SET SCREW M4X5-A2
28 O-RING / O-RING
45 GEWINDESTIFT / SET SCREW M4X5-A4
48** FILTER / FILTER D12
49** ZACKENRING / TOOTHED RING
*
Details finden Sie am Ende dieser Anleitung. / You will find details at the end of this description.
**
Ab Ø 50 verbaut / Installed from Ø 50
Tabelle 2 / Table 2 - Stückliste / Bill of Material
R474000398 R474000399
2x (45)
1x (28)
3x (25)
2x (10)
4x (48)(49)
**
im Kit je Ø enthalten /included in the kit for each Ø
1
Material / material
NBR
Metall / metal
NBR
Metall / metal
Sintermetall / sintered metal
Metall / metal
R474000400 R474000401
**
1x (28) 1x (28)
4x (10) 4x (10)
Reparaturanleitung | Repair instruction
FALTENBALG / ROD BELLOWS (RB)
ISO New Generation
Serie PRA/TRB
R413001012-RAW-001-AA/12.2019,
Replaces: 17.12.2019, DE/EN
Durchmesser /
Diameter
Ø 32-125
Ø 32-40
Ø 50-100
Ø 125
*
Ersatzteilsatz / Stückliste /
Spare Part Kit Bill of Material
R474000398 Tabelle 2/ Table 2
R474000399 Tabelle 2/ Table 2
R474000400 Tabelle 2/ Table 2
R474000401 Tabelle 2/ Table 2
AVENTICS | Serie PRA/TRB | 12.2019 1
