Transpector XPR 3+ Operating Manual
Signal Type
In the item list, click the signal type.

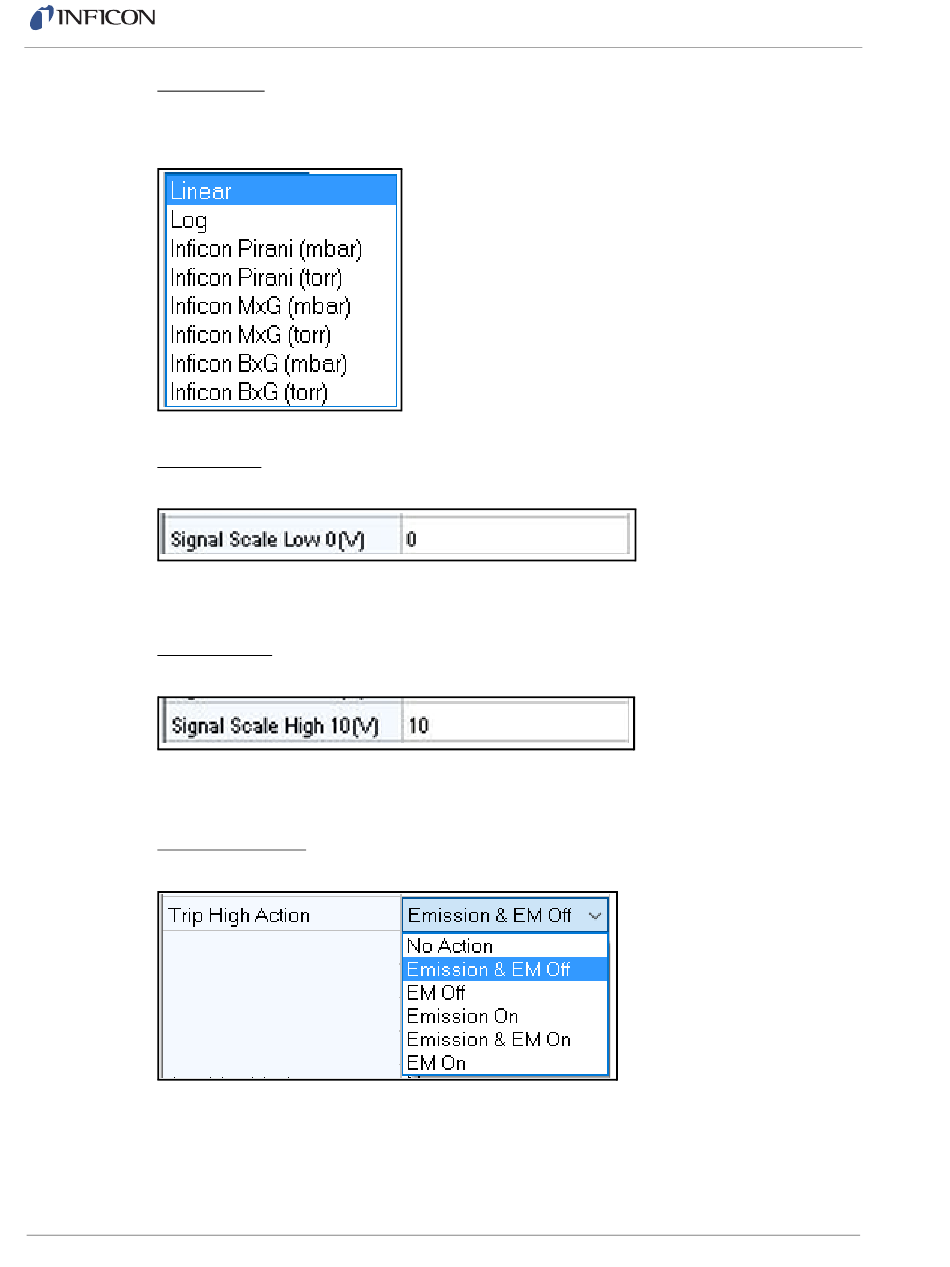

Figure 5-3 Signal type
0 Volt Input
Figure 5-4 0 volt input =
Defines what an input of 0 volts means in user units. If the Signal Type is
INFICON Pirani, MxG, or BxG, the 0 volt input = value cannot be changed.
10 Volt Input
Figure 5-5 10 volt input
Defines what an input of 10 volts means in user units. If the Signal Type is
INFICON Pirani, MxG, or BxG, the 10 volt input = value cannot be changed.
High Trip Action
Figure 5-6 High Trip Action
High Trip Action is typically used to stop emission from turning on at pressures
too high for safe operation.
NOTE: High Trip Action offers protection in addition to the Total Pressure
Interlock in Transpector firmware if Emission and EM Off are selected.
