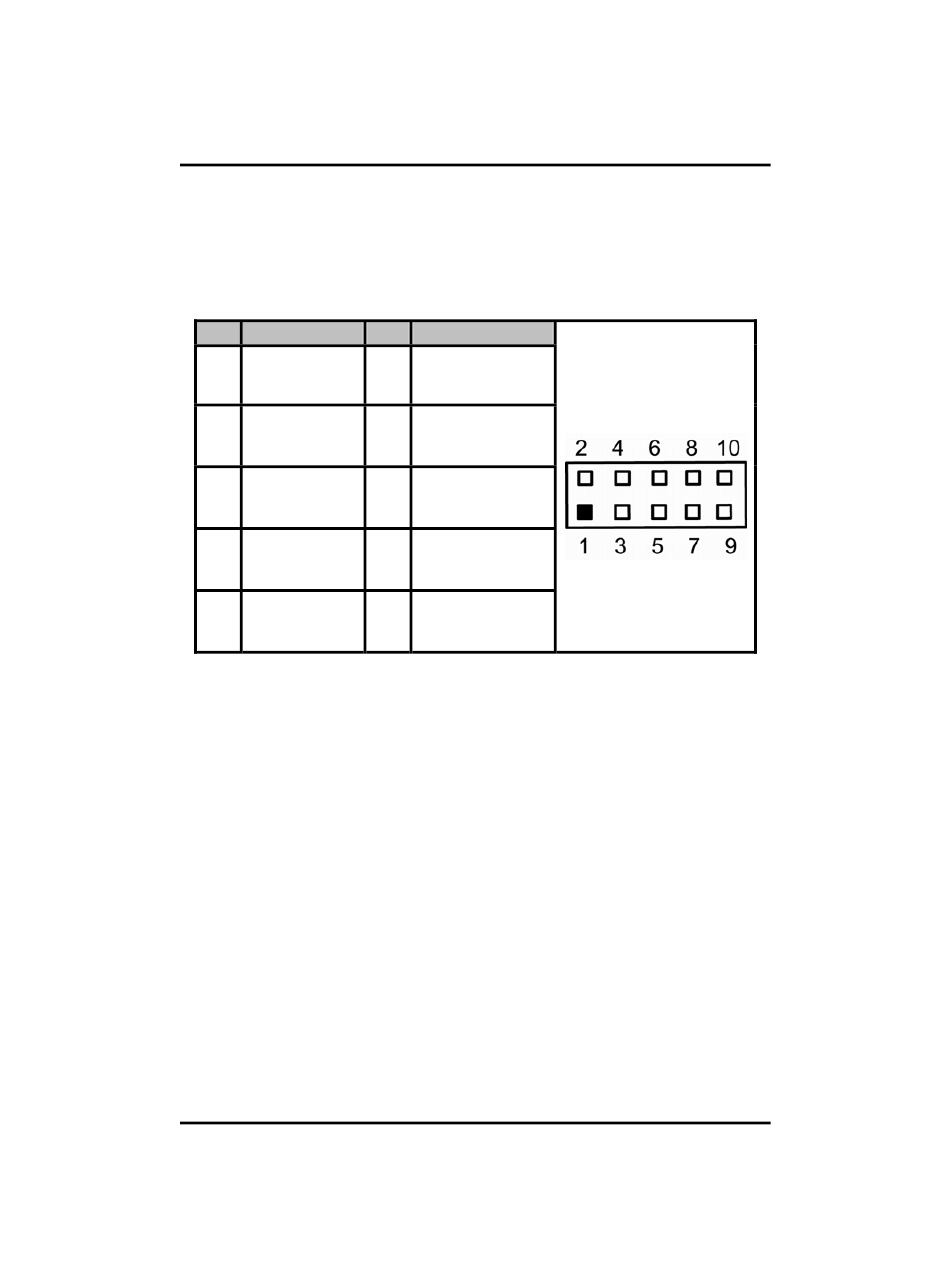

Appendix Bdigital I/O - AXIOMTEK SBC84831 Series User Manual

Pin Signal
Digital Input 0
1
(48D / Bit4)
Digital Input 1
3
(48D / Bit5)
Digital Input 2
5
(48D / Bit6)
7 Ground (GND)
9 Ground (GND)
Digital I/O
SBC84831 All-In-One Capa Board User's Manual
Pin Signal
Digital Output 0
2
(Value M / Bit0)
Digital Output 1
4
(Value M / Bit1)
Digital Output 2
6
(Value M / Bit2)
Digital Output 3
8
(Value M / Bit3)
Digital Output 4
10
(Value M / Bit4)
APPENDIX B
DIGITAL I/O
CN5
71
