SBC84831 All-In-One Capa Board User's Manual

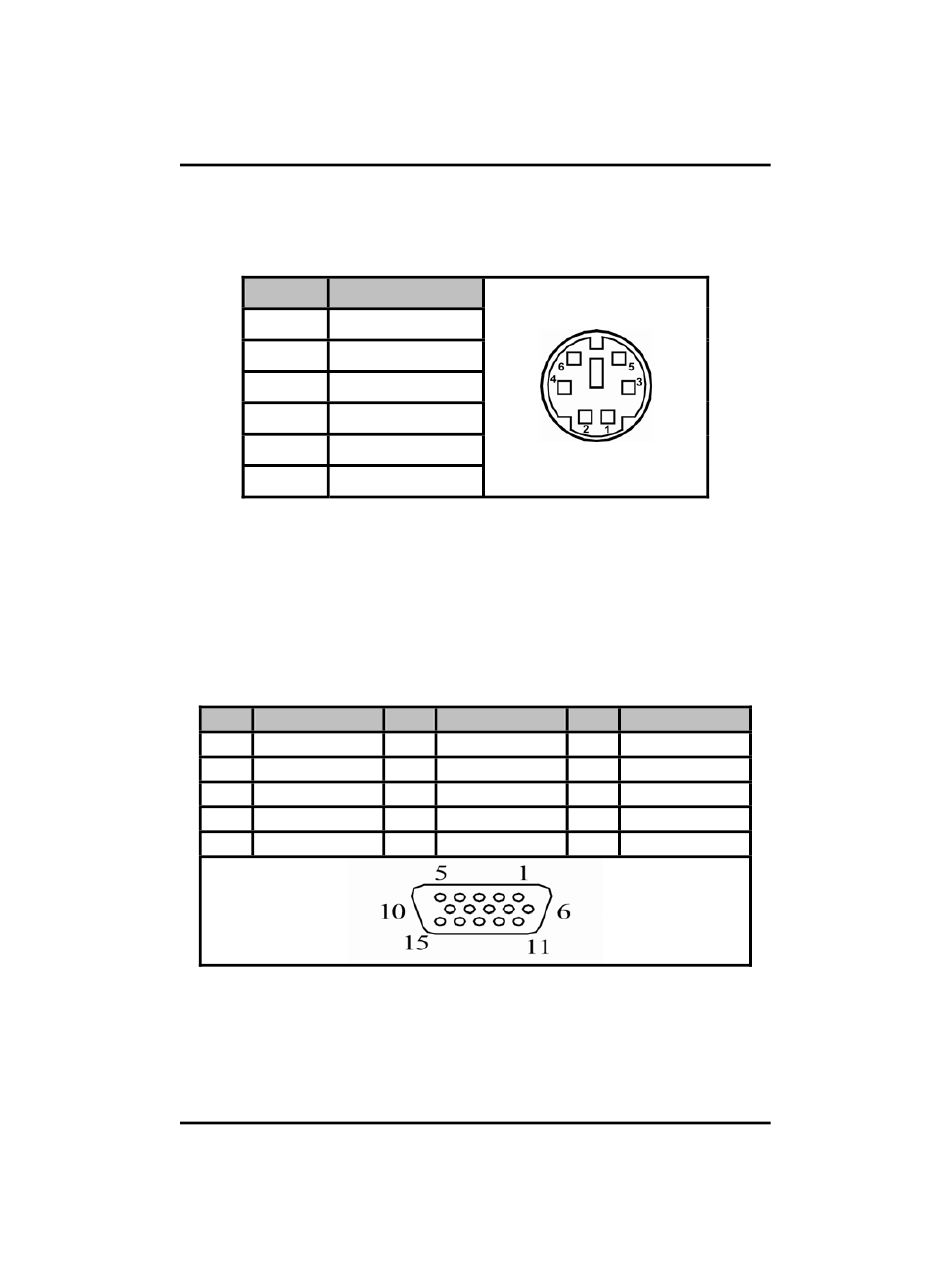

2.4.9 Keyboard and PS/2 Mouse Connector (CN8)

The board supports a keyboard and Mouse interface. Connector is a
DIN connector for PS/2 keyboard Connection VIA "Y" Cable.
Pin
1 Keyboard Data
2 Mouse Data
3 GND
4 VCC
5 Keyboard Clock
6 Mouse Clock

2.4.10 VGA Connector (CN9)

The board has three connectors to support CRT VGA and flat panel
displays, individually or simultaneously. Connector is a slim type 15-pin
D-Sub connector commonly for the CRT VGA display. The VGA
interface configuration is done via the software utility, and no jumper
setting is required.
Pin Signal
1 Red
4 N.C.
7 GND
10 GND
13 Horizontal Sync
24
Signal
Pin Signal
2 Green
5 GND
8 GND
11 N.C.
14 Vertical Sync
Pin Signal
3 Blue
6 DETECT
9 VCC
12 DDC DATA
15 DDC CLK
Jumpers and Connectors
