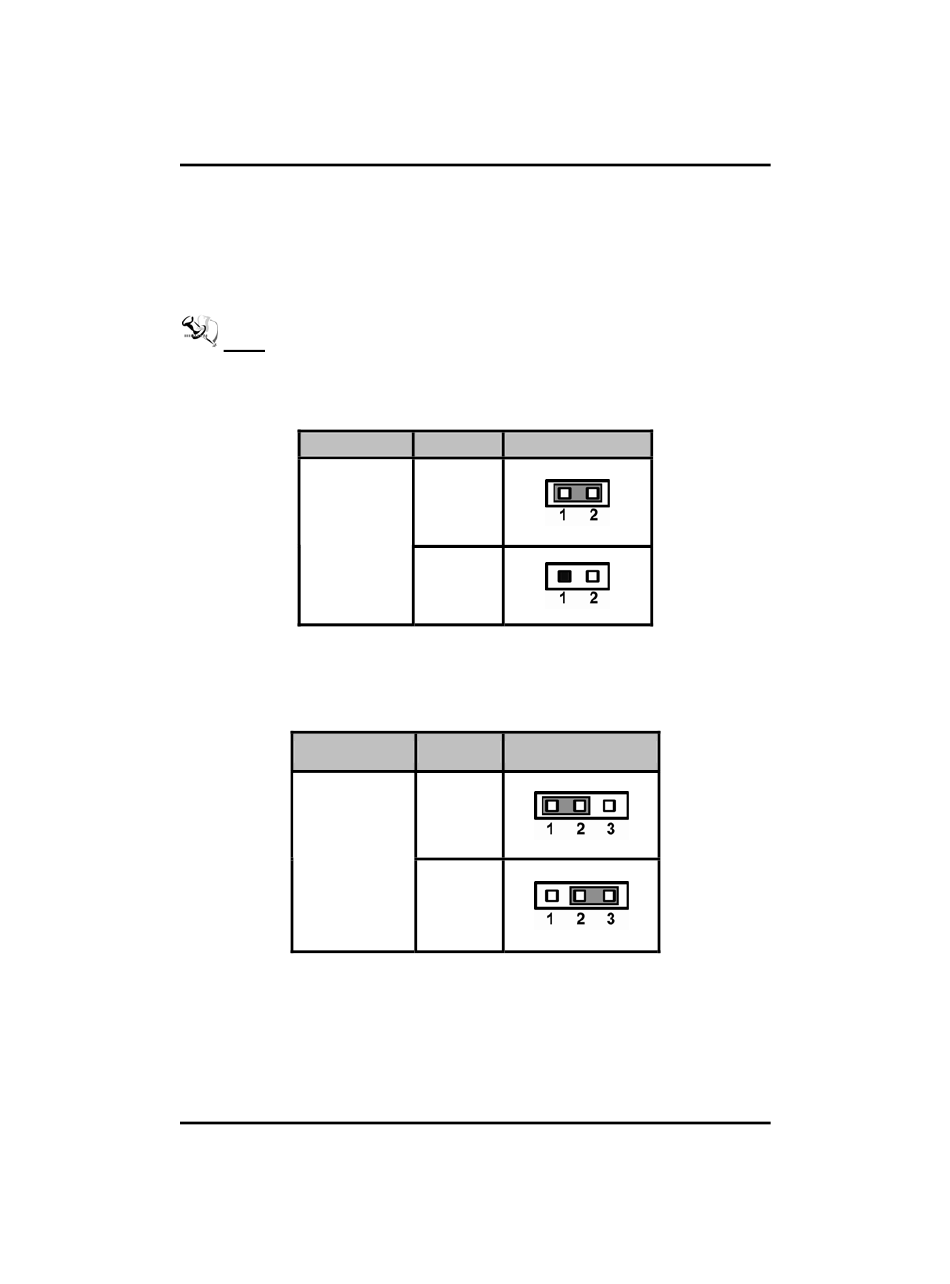

Auto Power On Jumper (JP3)

When Jumper JP3 is set OPEN for AC power input, the system will be
automatically power ON without pressing soft power button; when JP3
is SHORT for AC power input, it is necessary to manually press soft
power button to make the system power ON.
Note This function is similar to the feature of Power On after
Power Failed, which is controlled by hardware circuitry
instead of BIOS.
Description
Auto Power
On
2.3.4 CompactFlash
The jumper is to select the voltage for CompactFlash
Description
Compact Flash
Voltage
Selection
Jumpers and Connectors
SBC84831 All-In-One Capa Board User's Manual
Function Jumper Setting
Disable
(Default)
Enable
™
Voltage Jumper (JP4)
Function Jumper Setting
3.3V
(Default)
5V
™
interface.
