Installation
Camera module lenses
protective film
ACCESSORIES REQUIRED TO INSTALL THE CAMERA (SOLD SEPARATELY)
Wall mount bracket:
DWC-PV20WMW
Parapet bracket and tilting adapter (each sold separately):
Dome Cover
protective film
Ceiling mount bracket:
DWC-PV20CMW
DWC- PZPARAM, DWC-PV20ADPW
9

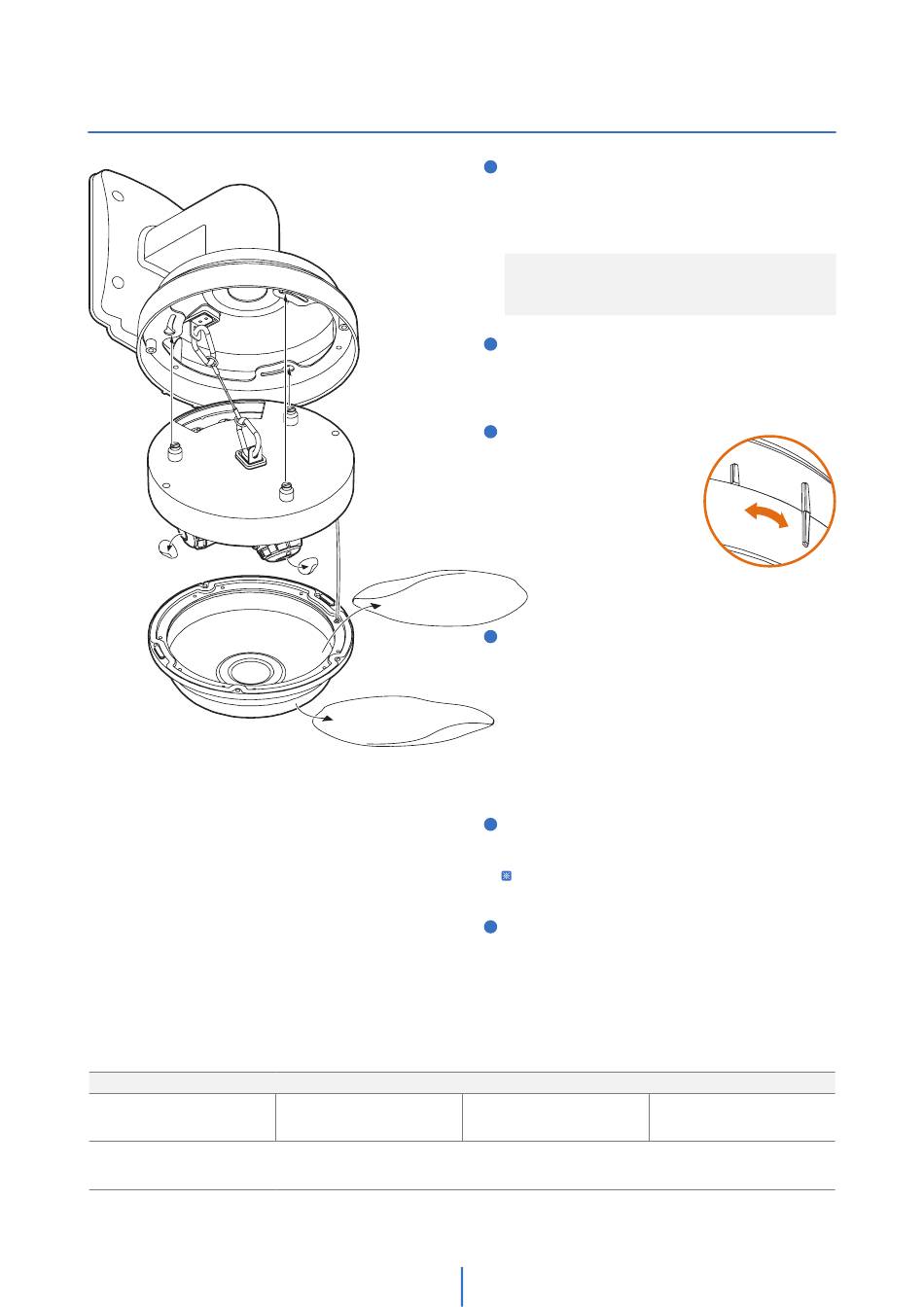

Using the mounting template sheet for the
1
mounting accessory, or the mounting accessory
itself, mark and drill the necessary holes in the
wall or ceiling. See the accessory's QSG for more
information.
NOTE: A wall mount, ceiling mount, junction
box, or in-ceiling flush mount are sold
separately and are required to complete
the camera's installation.
Pass the wires through the mounting accessory
2
and make all the necessary connections at the
base of the camera. See "Cabling" for more
information.
Once all cables are connected,
3
secure the camera base to the
mounting accessory. Align the
indented lines on the side of
the camera with the lines on
the mounting bracket as seen
in the image on the right.
rotate the camera and lock it
into position with the bracket.
Adjust the position of the camera modules on
4
the magnetic surface as needed. The camera
modules can be moved between 1~5 positions for
the ultimate coverage and view. Each camera is
labeled with numbers 1~4 for the module's order.
For maximum scene coverage, options include
moving the lens modules around the magnetic
surface and/or fitting one lens module into the
center position. See the next page for more
information.
Adjust the camera modules' angle and direction.
5
Each lens module can be rotated 350° and tilted
at a maximum angle of 80°.
Remove the protective film attached to the four
camera module lenses.
Remove the dome cover protective films from
6
both inside and outside of the dome cover. Secure
the dome cover to the camera's base using the
included star wrench to complete the installation.
Flush mount:
DWC-PV20FMW
UNLOCK
LOCK
Junction box:
DWC-PV20JUNCW
