2 Installation

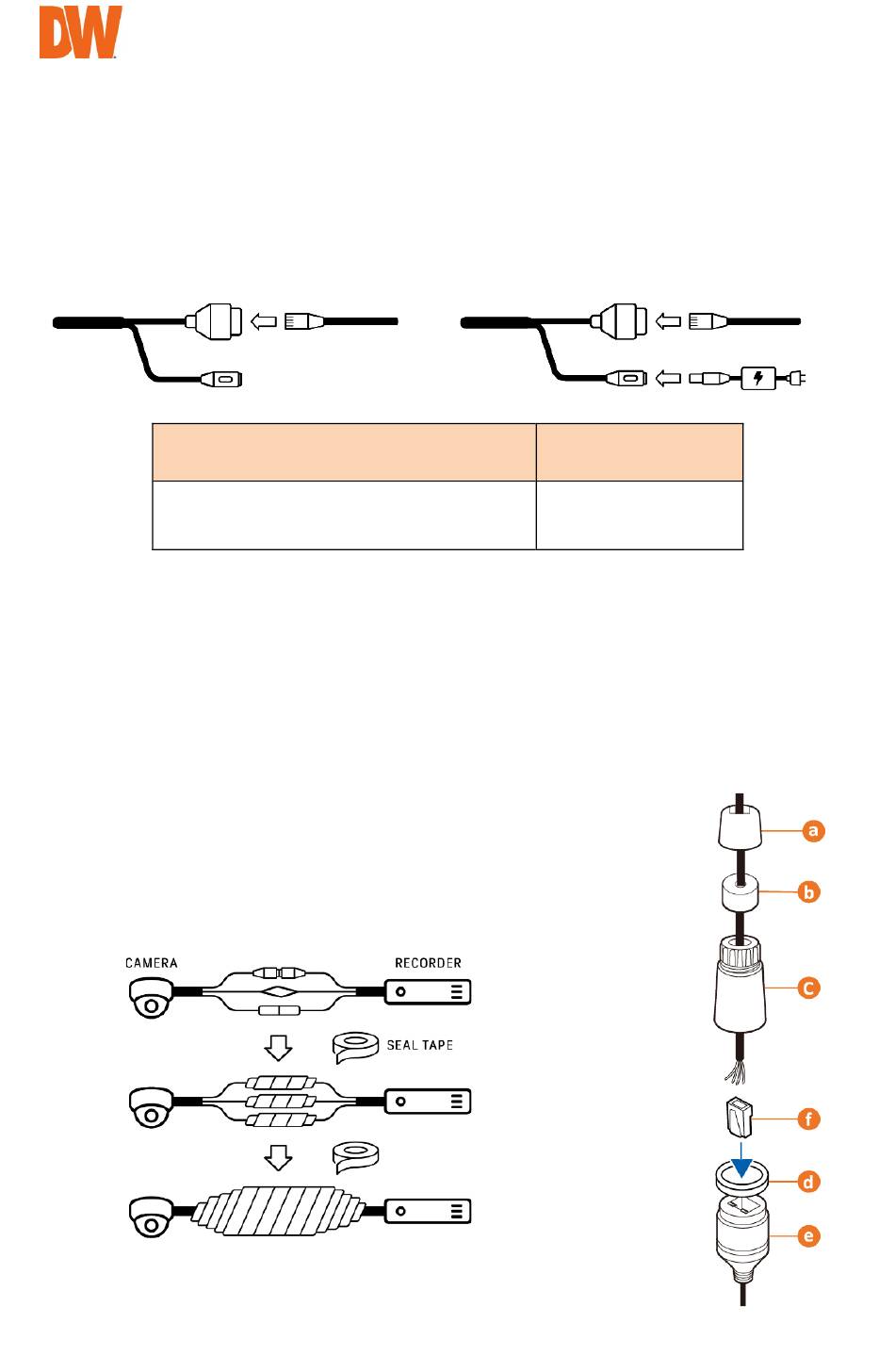

2.1 Powering the Camera

Pass the wires through and make all necessary connections.
Use a PoE Switch or PoE Injector to
connect data and power to the camera
using a single Ethernet cable.
DC12V, PoE (IEEE 802.3af class 3).
Adapter not Included.
2.2 Installation
1. The mounting surface must bear at least five times the weight of your camera.
2. For the installation process, remove the dome cover from the camera base using
the included wrench.
3. Using the mounting sheet or the camera itself, mark and drill the necessary holes
in the wall or ceiling.
4. Pass wires through and make all necessary connections. See 2.2
Cabling for more information.
5. To use the camera's waterproof wiring:
In extreme environments, use an outdoor-rated sealer.
Power requirements
Use a non-PoE Switch to connect data
using an Ethernet cable and use a
power adapter to power the camera.
consumption
<7.5W
2
Power
