2 Installation

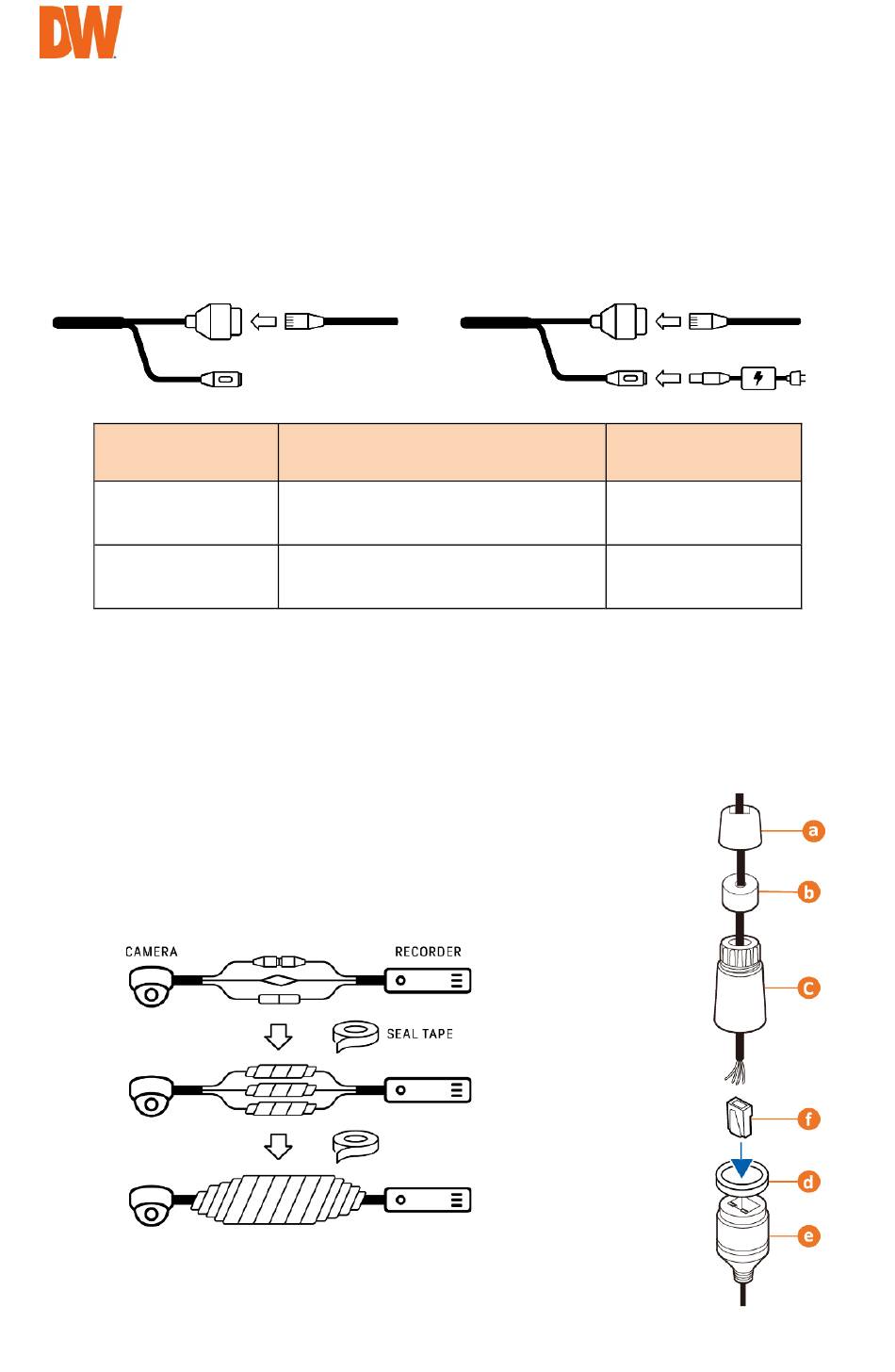

2.1 Powering the Camera

Pass the wires through and make all necessary connections.
Use a PoE Switch or PoE Injector to
connect data and power to the camera
using a single Ethernet cable.
Model
DWC-VSTB04Bi
DWC-VSTB04Mi
2.2 Installation
1. The mounting surface must bear at least five times the weight of your camera.
2. Using the mounting sheet or the camera itself, mark and drill the necessary holes
in the wall or ceiling.
3. Pass wires through and make all necessary connections. See 2.2
Cabling for more information.
4. To use the camera's waterproof wiring:
In extreme environments, use an outdoor-rated sealer.
Use a non-PoE Switch to connect data
using an Ethernet cable and use a
power adapter to power the camera.
Power requirements
DC12V, PoE (IEEE 802.3af class
2). Adapter not Included.
DC12V, PoE (IEEE 802.3af class
3). Adapter not Included.
2
Power
consumption
<5W
<8W
