Installation -

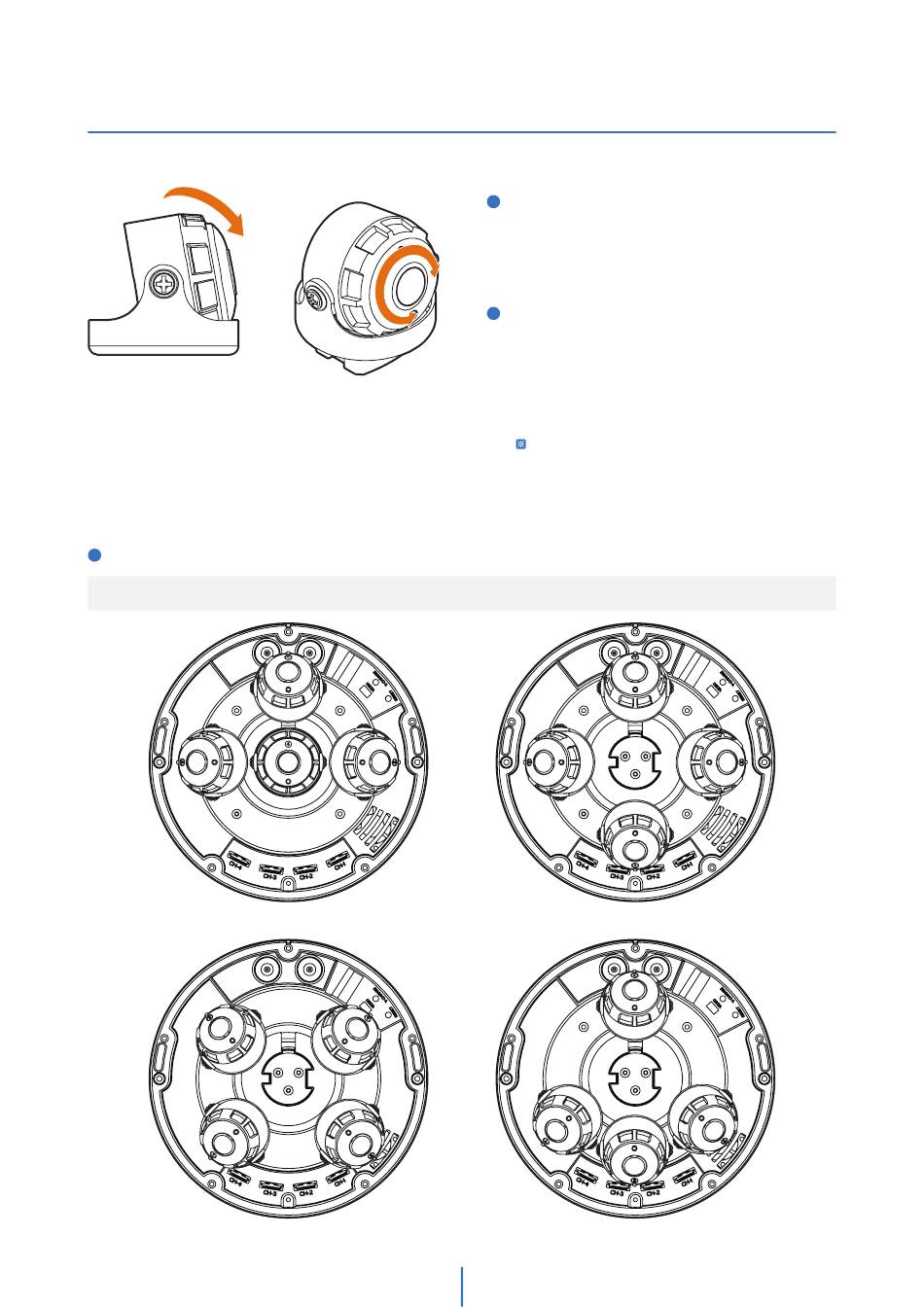

Adjusting the camera angle

Tilting 80˚

Common lens module arrangements:

NOTE:

Only lens modules #3 and #4 can be seated in the center (5th) position. Trying to place lens modules #1 or

#2 in the center may result in risk of pulling out or damaging the wire connection for the lens module.

Rotation 350˚

Adjusting the lens modules:

Adjust the direction of each lens module while the

camera is fixed on the ceiling.

- Rotation angle is 350° total.

- Tilt angle is 80° total.

Adjusting the monitoring field of view:

- Once the lens modules are attached to the

magnetic board, adjust the pan and tilting angles

based on the direction you need to monitor.

- Adjust the rotation and horizontal angle of each

lens module so that the image does not appear

inverted.

Avoid allowing the lens module cables to

become tangled. The lens module is magnetic

and may damage the cable.
