Cabling - Digital Watchdog MEGApix Flex DWC-PVX20WATW User Manual

Installation -

Cabling

Bending the cable can cause water leakage.
Use a cable with a diameter of ø0.19" ~ ø0.31" (ø5.0 ~ ø8.0mm).

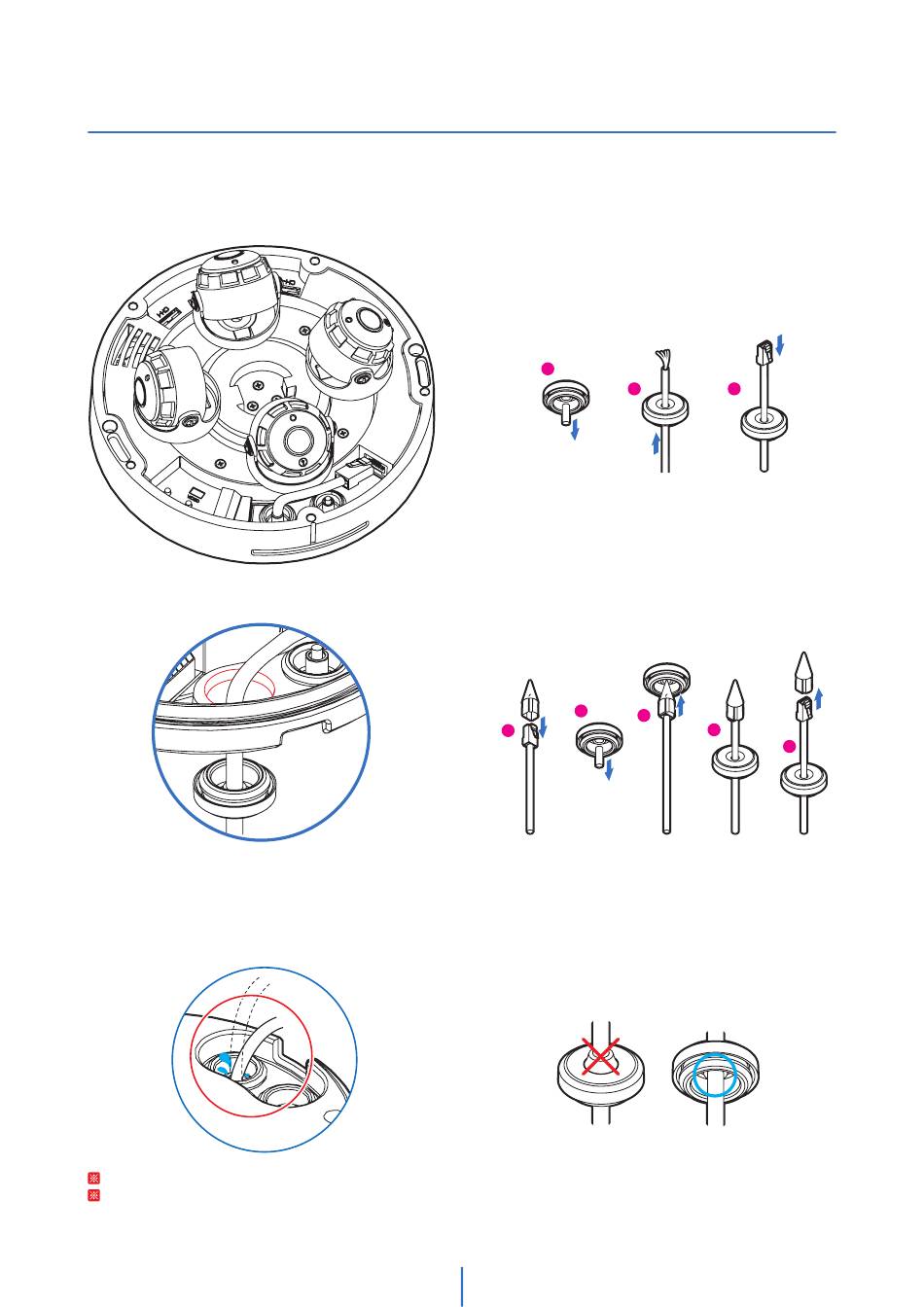

1. Network cable - to connect an RJ45 cable to
the camera:
Option A (recommended):
a. Remove the grommet plug.
b. Pass the network cable through the grommet at
the base of the camera.
c. Once the cables are through, add the RJ45
connector.
a
b
Option B:
a. Attach the included RJ45 installation tool to the
network cable.
b. Remove the grommet plug.
c. Pass the network cable's connector through
the grommet. Pay attention to the direction of
the grommet connection when connecting
the cables.
d. Once the cable's connector is through, remove
the installation tool.
b
a
Once the network cable is passed through the
grommet:
a. Insert the grommet into the bottom case of the
camera.
NOTE: Bending the cable may cause water
leakage.
b. Connect the RJ45 to the camera's network input
at the base of the camera.
11
c
c
d
e
