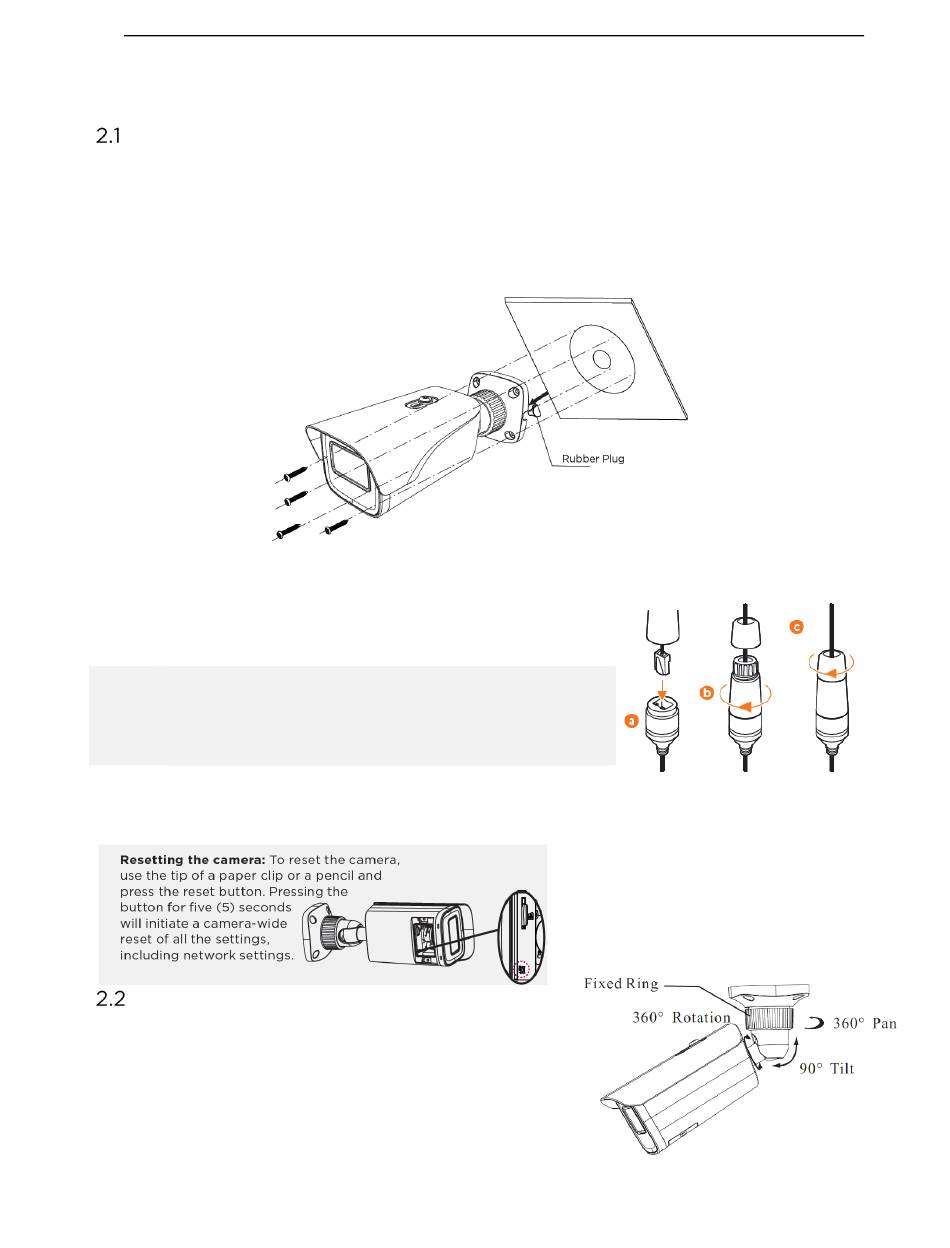

2 Installation
Installing the camera
1.
The mounting surface must bear five times the weight of your camera.
2.
Do not let the cables get caught in improper places or the electric line cover to be damaged. This may
cause a breakdown or fire.
3.
Using the mounting template sheet or the camera itself, mark and drill the necessary holes in the wall or
ceiling.
4.
Pass wires through and make all connections. See "Cabling" for more information.
5.
Attach the main body to the mount bracket by tightening the lock screw.
6.
To use the camera's waterproof wiring:
Install the LAN cable into 'a'.
a.
'b' will be assembled to 'a' with a 1/4 turn.
b.
Thread 'c' tightly to 'b'.
c.
NOTE:
To ensure moisture seal, make sure the o-ring is in place
between (a) and (b). In extreme environments use of an
outdoor rated sealer is recommended.
NOTE:
When using the waterproof cap, crimp the RJ45 connector
after passing the cable through the waterproof cap.
7.
Once all cables are connected to the camera, secure the camera to the mounting surface using the four (4)
included screws.
Adjusting the Camera's Angle
Adjust the camera's tilt and angle using its bracket.
•
Pan: 360°
•
Tilt: 90°
•
Rotation: 360°
