Operational Modes CAN@net NT
CAN@net NT
(Master)
1
2
CAN

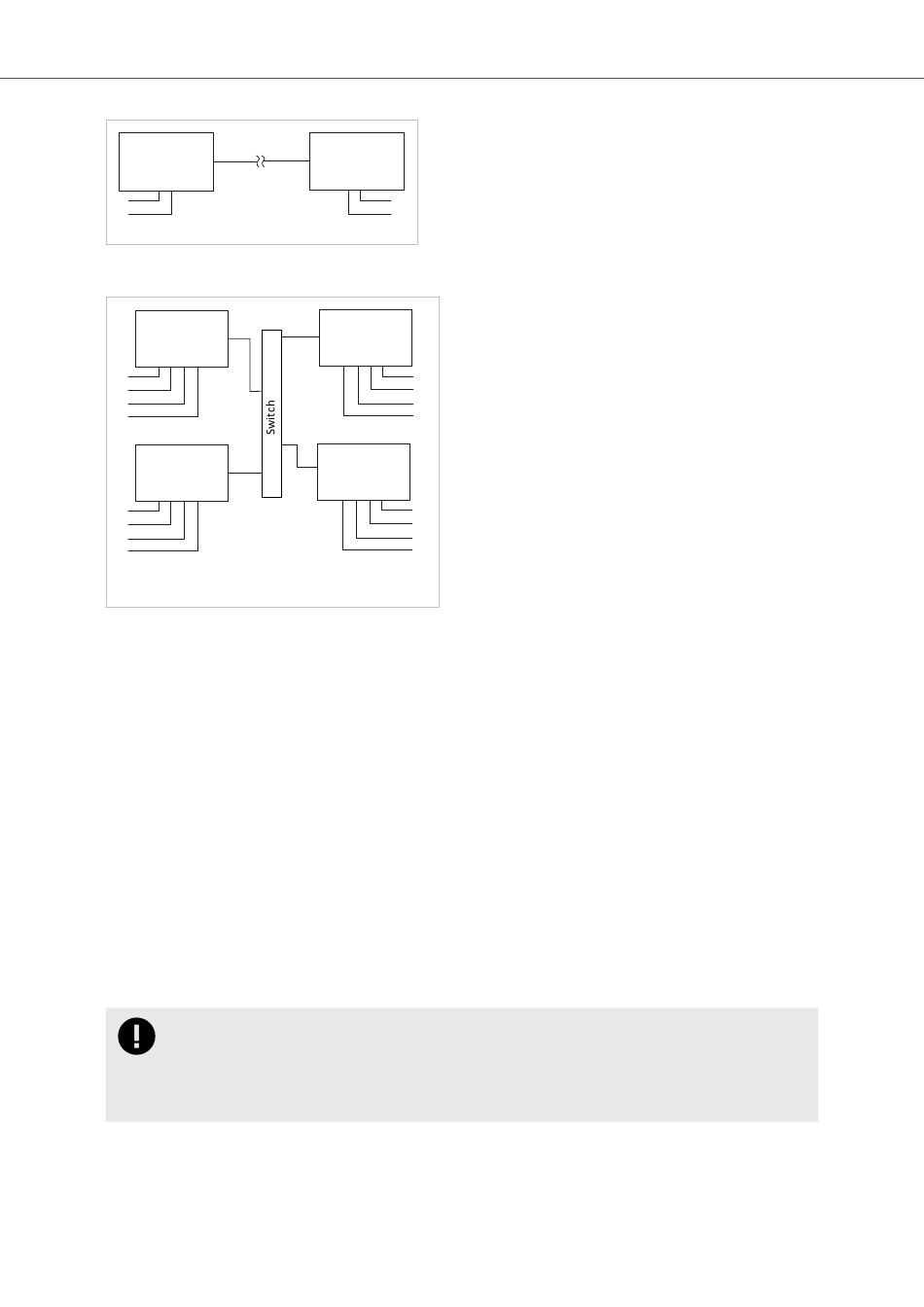

Figure 2. CAN-Ethernet-CAN Bridge with 2 devices (NT 200)
CAN@net NT
(Master)
1
2
3
4
CAN@net NT
(Slave)
1
2
3
4
1+2: CAN
3+4: CAN or CAN-FD
Figure 3. CAN-Ethernet-CAN Bridge with 4 devices (NT 420)
The following settings and features are possible:
• Use of Lua ADK
• Syslog
• MQTT
• Remote access
• Expert mode
• Communication Error Severity
• Action Rules
• Mapping table
• J1939 Mapping
In the CAN-Ethernet-CAN Bridge mode each device can be configured differently. But to build a Bridge
configuration all devices must be configured in one configuration file. The configuration has to be set completely
for all devices (Master, Slave 1 to 3) and then the complete configuration has to be downloaded to each device.
In the Local CAN Bridge mode only one device is connected and has to be configured.
IMPORTANT
Configuration fails, if the individual devices of a CAN-Ethernet-CAN Bridge are configured from
different configuration files! Observe that for the configuration of a CAN-Ethernet-CAN Bridge each
device must be configured with the same configuration file. If the configuration is changed, the new
configuration file has to be downloaded again to all devices.
