Action Rules
1. To load an existing csv file with actions rules, click button Import in Action Rules.
• Window Select a File is opened.
NOTE
If a csv file is imported, already entered action rules are deleted.
2. To save configured Action Rules as template, click button Export.
Defining a Rule
To define a new action rule configure the columns of the table.
IMPORTANT
If hexadecimal values are used, they must begin with 0x.
Example: 0x55
1. Define an IF event:
a. Click in column IF Event.
• Window to define an event is opened.
b. In drop-down list Select Event Type select the desired event (see
• Depending on the selected type, further configuration options are shown.
c. Set all necessary configurations and click button OK.
• IF event is entered in the table.
2. Define a THEN action equally to the IF event (for possible action types see
• THEN action is entered in the table.
3. Define how often the rule is executed in the column How often.
• When the defined event occurs, the action is executed and the counter is decreased by one.
4. For endless repetition enter value 0 in column How often.
5. If column How often is 1, enter 0 in column Blocking time.
6. In column Blocking time define the minimum time between two executed actions in milliseconds.
or
In column Delay time define the delay time between the reception of an event and the execution of the
action in milliseconds (for more information see
7. To add or delete a row, right-click on the left number column and select Insert new cells or Delete cells.
Delay Time/Blocking Time
blocking time
evt evt evt
blocking time
blocking time
act act

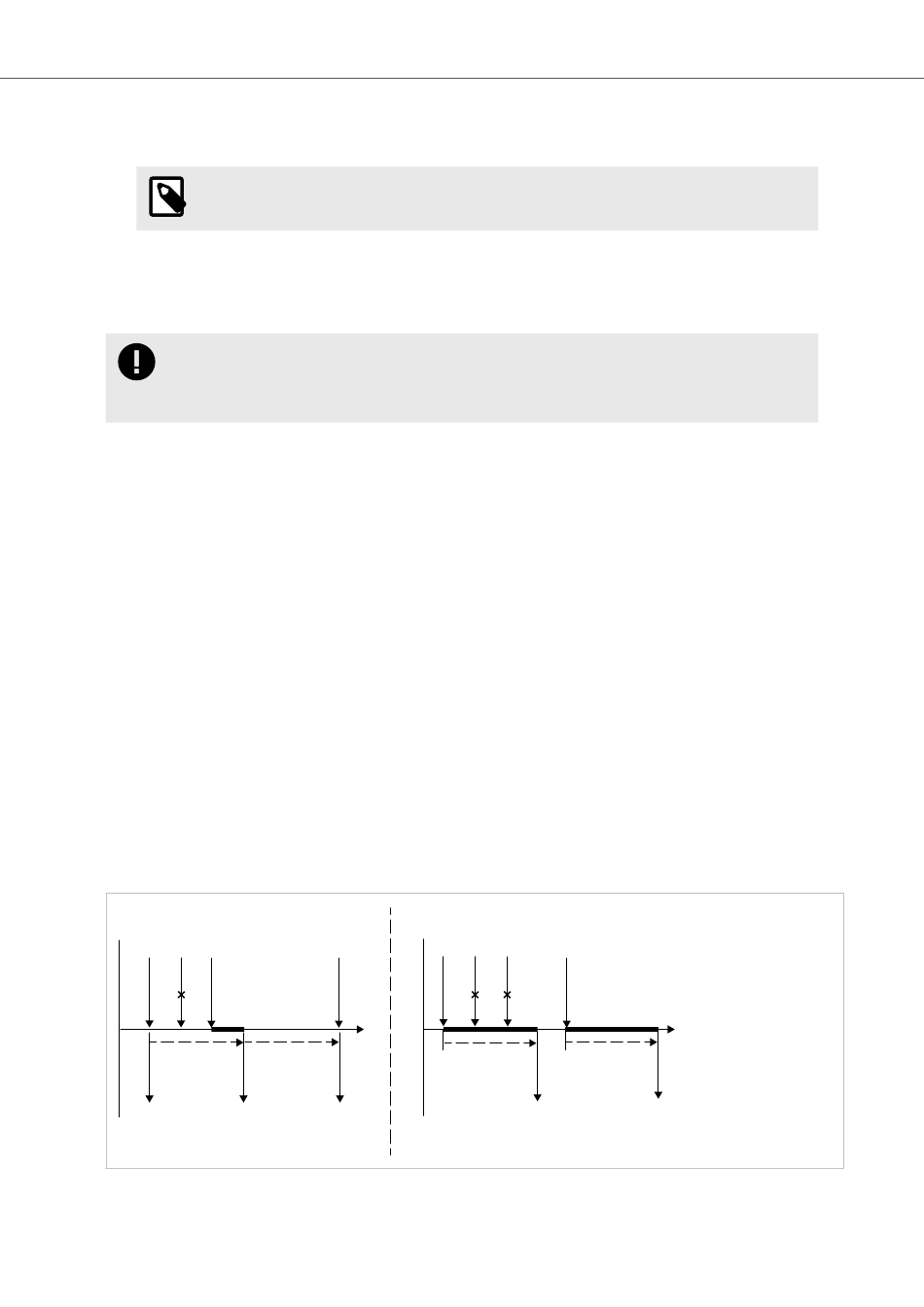

Figure 14. Blocking time and delay time
4.02.0332.20001 Version 1.7
Delay Time/Blocking Time, p.
delay time
evt evt evt
evt
t
delay time
act
CAN-Gateway Configurator V6 for CAN@net NT and CANbridge NT
Possible Events, p.
Possible Actions, p.
27).
evt
t
delay time
act
act
29).
31).
Page 27 of 56
