6. Dashboard
With the dashboard that is integrated in the CAN-Gateway Configurator it is possible to keep track of transmitted
messages in the software, and, for example, to monitor in the receive counters and transmit counters of the
various modules.
1.
To open the dashboard, click button Dashboard
• Rx counter counts all messages that are received by the respective module.
• Tx counter counts all messages that are transmitted by the respective module.
• Module memory displays the size of each memory pool and the available free entries.
• Modules Master 1, Master 2, and Master 3 display the connection from the Master to the respective
Slave 1, 2, and 3.
2.
For more information about each module, see the mouseover help text in each module.
Dashboard interfaces depending on the operating mode:

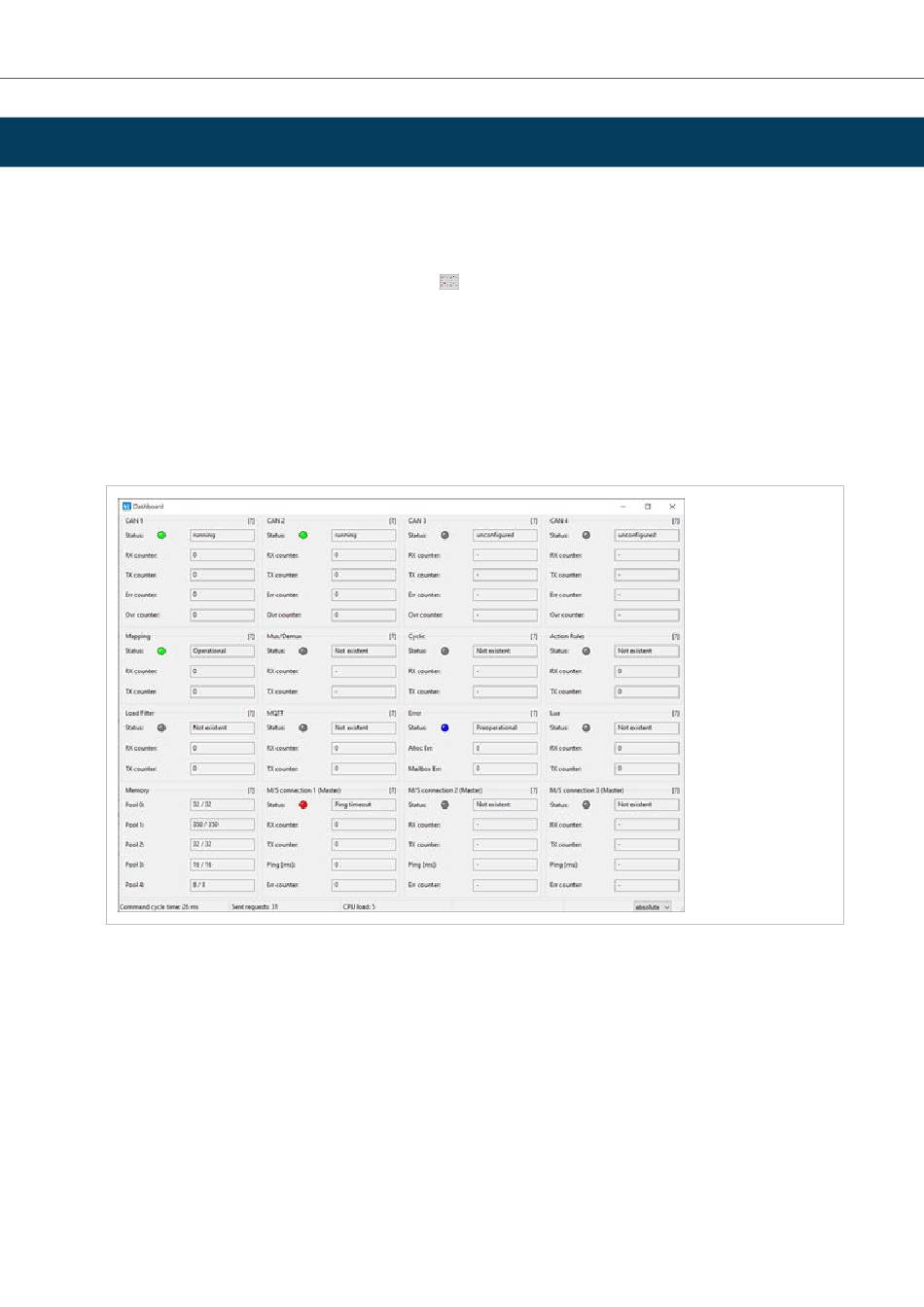

Figure 22. Master
4.02.0332.20001 Version 1.7
CAN-Gateway Configurator V6 for CAN@net NT and CANbridge NT
in the toolbar.
Page 45 of 56
