  • Page 5: User Guide

    User Guide USB-to-CAN V2 Starter Kit 1. User Guide Please read the manual carefully. Make sure you fully understand the manual before using the product. 1.1. Target Audience This manual addresses trained personnel who are familiar with CAN, LIN, and the applicable national standards. Only ESD trained staff is authorized to install the interface.
  • Page 6 USB-to-CAN V2 Starter Kit Conventions External link (URL): www.ixxat.com Safety Symbols DANGER Instructions that must be followed to avoid an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING Instructions that must be followed to avoid a potential hazardous situation that, if not avoided, could result in death or serious injury.
  • Page 7: Safety Instructions

    Safety Instructions USB-to-CAN V2 Starter Kit 2. Safety Instructions IMPORTANT Risk of interference to radio and television if used in office or home environment! Use exclusively included accessories. Use exclusively shielded cables. Make sure, that the shield of the interface is connected with the device plug and the plug on the other side.
  • Page 8: Scope Of Delivery

    USB-to-CAN V2 Starter Kit Scope of Delivery 3. Scope of Delivery The scope of delivery includes: • 1 x USB-to-CAN V2 professional (2 x SUB-D9M) (1.01.0283.22002) • 2 x termination resistors (1.04.0075.03000) • 1 x female gender changer • 1 x cable with four stamped plugs (2 x male, 2 x female) •...
  • Page 9: Product Description

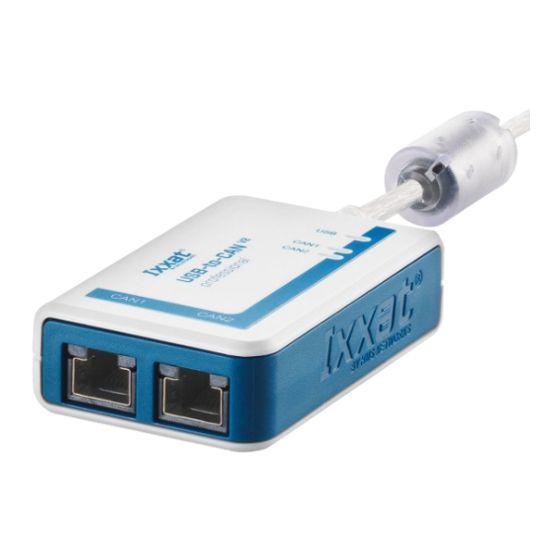

    Product Description USB-to-CAN V2 Starter Kit 4. Product Description The USB-to-CAN V2 starter kit makes it possible to easily set up and commission a CAN network and add additional components to it later on. The USB-to-CAN V2 professional features two CAN channels which can be connected to one another using the included cable.
  • Page 10: Installation

    USB-to-CAN V2 Starter Kit Installation 5. Installation The USB-to-CAN V2 professional can be plugged into any USB connection of a computer. The required cables and termination resistors can be plugged in before or after connecting the USB-to-CAN to a computer. The corresponding drivers must be downloaded online and installed accordingly.
  • Page 11: Use

    USB-to-CAN V2 Starter Kit 6. Use A reliably functioning CAN network can be set up using the starter kit. The following steps explain the basic process: Download and install the corresponding VCI drivers at www.ixxat.com/support. The individual installation steps are described in the video entitled How to set up the Ixxat VCI driver package for USB-to-CAN Administrator rights on the computer are required for installation.
  • Page 12 USB-to-CAN V2 Starter Kit Commission canAnalyser3 Mini. The process is described in the video entitled How to get started with Ixxat's canAnalyser mini. Comprehensive help instructions are also installed alongside canAnalyser3 Mini. The following usage scenarios can also be implemented with canAnalyser3 Mini: 1.
  • Page 13 USB-to-CAN V2 Starter Kit 2. Connecting a device or system to the available SUB-D9 of the included cable, with gender changer if required. Both interfaces of the USB-to-CAN V2 professional are connected to one another. • One channel of the USB-to-CAN V2 professional can now be given a fixed assignment to an application on the computer.
  • Page 14 USB-to-CAN V2 Starter Kit Page 10 of 20 4.03.0283.30002...
  • Page 15 USB-to-CAN V2 Starter Kit Generating VCI sample programs. Various different programming examples are included for the APIs of the VCI driver. They can be found in C:\Users\Public\Documents\HMS\Ixxat VCI 4.0\Samples. Directory Contents dotnet CANConNet Programming example for classic CAN (C#) CanfdConNet Programming example for CAN FD (C#) CANVBNet Programming example for classic CAN (VB.NET)
  • Page 16 USB-to-CAN V2 Starter Kit Run the sample program. A window displaying all connected VCI devices, like the USB-to-CAN V2 professional, will open. Select device and, for BUS Line, select the channel of the USB-to-CAN V2 professional which is to be assigned to the application program.
  • Page 17 USB-to-CAN V2 Starter Kit Confirm with OK. The CAN is automatically initialized with 125 kBaud. For the selection CAN - A, the first channel of the USB-to-CAN V2 professional is assigned to the application program. Assign the second channel of the USB-to-CAN V2 professional to canAnalyser3 Mini. 4.03.0283.30002 Page 13 of 20...
  • Page 18 USB-to-CAN V2 Starter Kit Configure the baud rate to 125 kBaud accordingly. (See video entitled How to get started with Ixxat's canAnalyser mini for a detailed introduction to commissioning). Telegrams can now be sent and then viewed in the console. The sample program also makes it possible to send a CAN message with the ID 100 (hex) by pressing the "T"...
  • Page 19: Technical Data

    Technical Data USB-to-CAN V2 Starter Kit 7. Technical Data Table 1. USB-to-CAN V2 professional USB interface USB 2.0, Hi-Speed (480 Mbit/s) Microcontroller/RAM/Flash 32-bit/192 KB/512 KB Dimensions 80 x 50 x 22 mm Weight Approx. 100g Power supply Via USB, 5 V DC/300 mA Galvanic isolation 1,000 V DC for 1 sec 500 V AC for 1 min...
  • Page 20 USB-to-CAN V2 Starter Kit Technical Data Table 4. Gender changer Weight 9.5 g Number of contacts Ferrule resistance (max.) 10 mΩ Insulating resistance (min.) 500 MΩ Operating/storage temperature –55°C to +105°C Page 16 of 20 4.03.0283.30002...
  • Page 21: Additional Information

    Additional Information USB-to-CAN V2 Starter Kit 8. Additional Information Ixxat provides various different drivers for all CAN/CAN FD interfaces: • VCI for Windows • ECI and SocketCAN for Linux The drivers offer various APIs for integration into the application programs: SocketCAN C/C++/C# C/C++...
  • Page 22: Cleaning

    USB-to-CAN V2 Starter Kit Cleaning 9. Cleaning Disconnect the device from the power supply. Remove dirt with a soft, chemical untreated, dry cloth. Page 18 of 20 4.03.0283.30002...
  • Page 23: Support/Return Hardware

    Support/Return Hardware USB-to-CAN V2 Starter Kit 10. Support/Return Hardware Support To contact support, go to www.ixxat.com/technical-support/contact-technical-support. Scroll down and click button mysupport.hms.se to register a support case. Return Hardware www.ixxat.com/support/product-returns click button Portal to access the support portal. In the support portal select Submit Product Return (RMA). Read the information and click Create RMA Case.
  • Page 24: Disposal And Recycling

    USB-to-CAN V2 Starter Kit Disposal and Recycling 11. Disposal and Recycling You must dispose of this product properly according to local laws and regulations. Because this product contains electronic components, it must be disposed of separately from household waste. When this product reaches its end of life, contact local authorities to learn about disposal and recycling options, or simply drop it off at your local HMS office or return it to HMS.
