Email Settings page

The Email Settings page has fields for setting up the SMX's e-mail notification
capabilities.
For the e-mail settings and for each row of the e-mail notification settings, click
the Edit button at the right of the field to make the field available for editing. The
button changes to Save. After editing the settings associated with the Edit/Save
button, click the Save button.

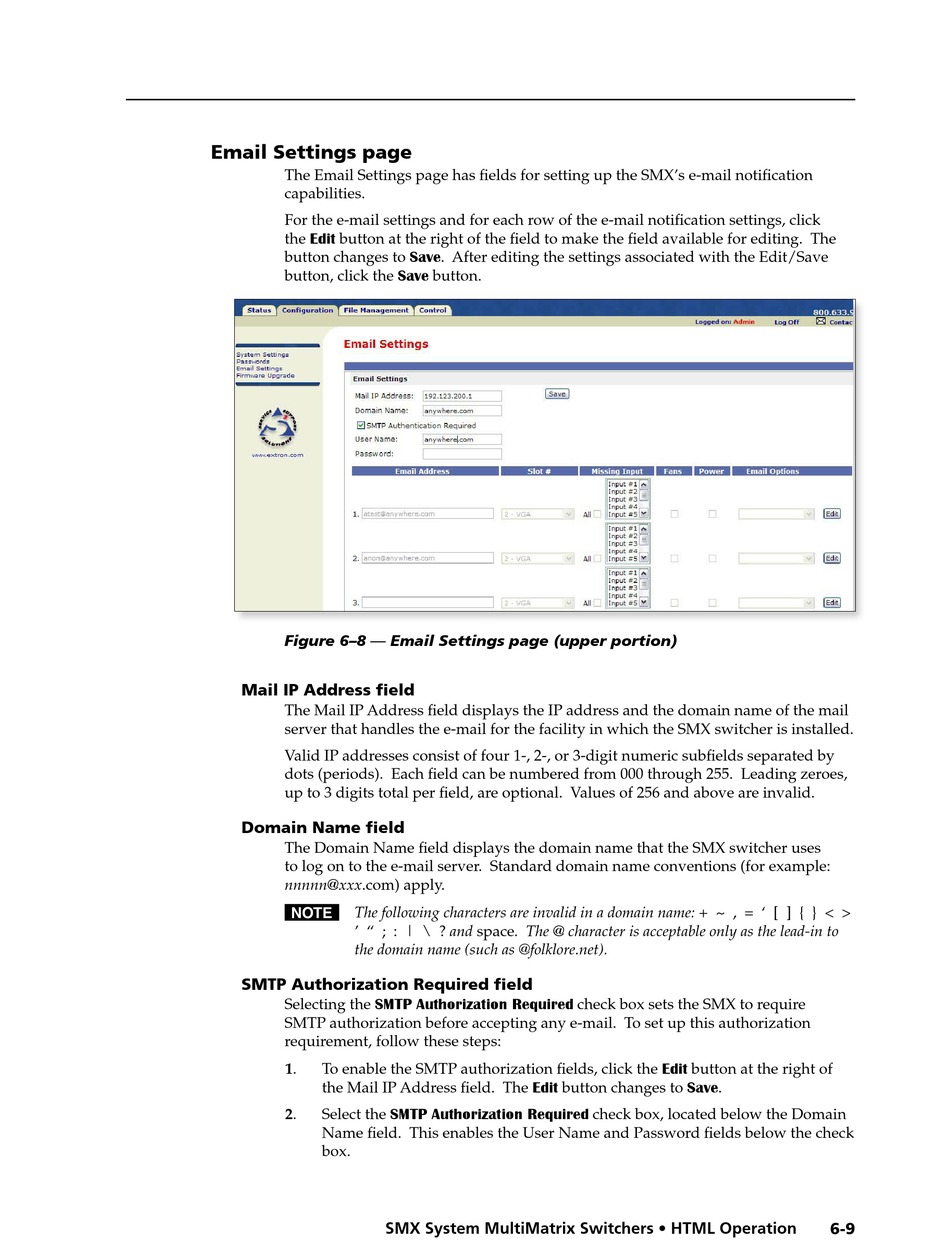

Figure 6–8 — Email Settings page (upper portion)

Mail IP Address field

The Mail IP Address field displays the IP address and the domain name of the mail
server that handles the e-mail for the facility in which the SMX switcher is installed.
Valid IP addresses consist of four 1-, 2-, or 3-digit numeric subfields separated by
dots (periods). Each field can be numbered from 000 through 255. Leading zeroes,
up to 3 digits total per field, are optional. Values of 256 and above are invalid.

Domain Name field

The Domain Name field displays the domain name that the SMX switcher uses
to log on to the e-mail server. Standard domain name conventions (for example:
nnnnn@xxx.com) apply.
N The following characters are invalid in a domain name: + ~ , = ' [ ] { } < >
' " ; : | \ ? and space. The @ character is acceptable only as the lead-in to
the domain name (such as @folklore.net).

SMTP Authorization Required field

Selecting the SMTP Authorization Required check box sets the SMX to require
SMTP authorization before accepting any e-mail. To set up this authorization
requirement, follow these steps:
1. To enable the SMTP authorization fields, click the Edit button at the right of
the Mail IP Address field. The Edit button changes to Save.
2. Select the SMTP Authorization Required check box, located below the Domain
Name field. This enables the User Name and Password fields below the check
box.
SMX System MultiMatrix Switchers • HTML Operation 6-9
