HTML Operation, cont'd

To set output volume levels

1.

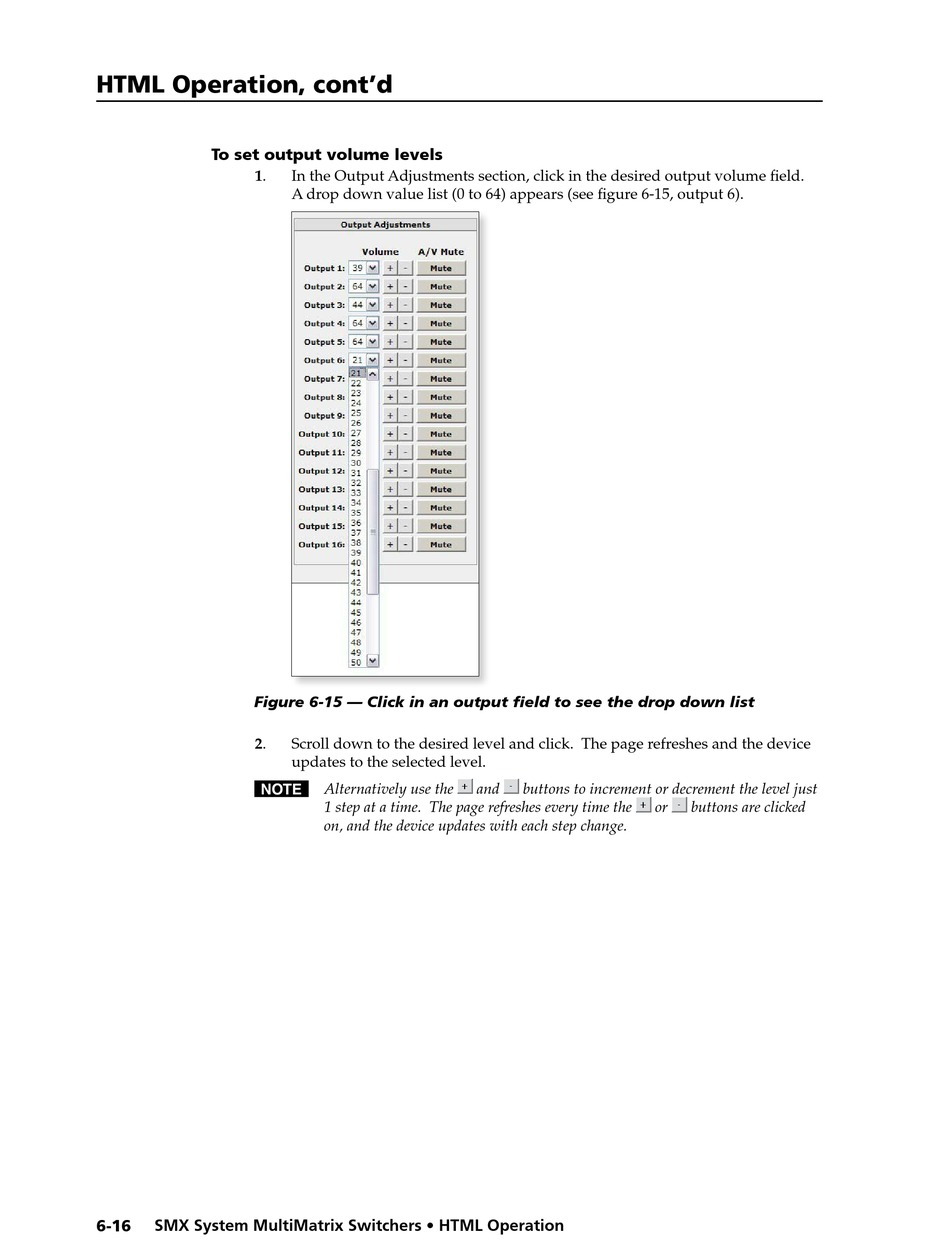

Figure 6-15 — Click in an output field to see the drop down list
2.
N Alternatively use the and buttons to increment or decrement the level just
6-16 SMX System MultiMatrix Switchers • HTML Operation
In the Output Adjustments section, click in the desired output volume field.
A drop down value list (0 to 64) appears (see figure 6-15, output 6).
Scroll down to the desired level and click. The page refreshes and the device
updates to the selected level.
1 step at a time. The page refreshes every time the or buttons are clicked
on, and the device updates with each step change.
