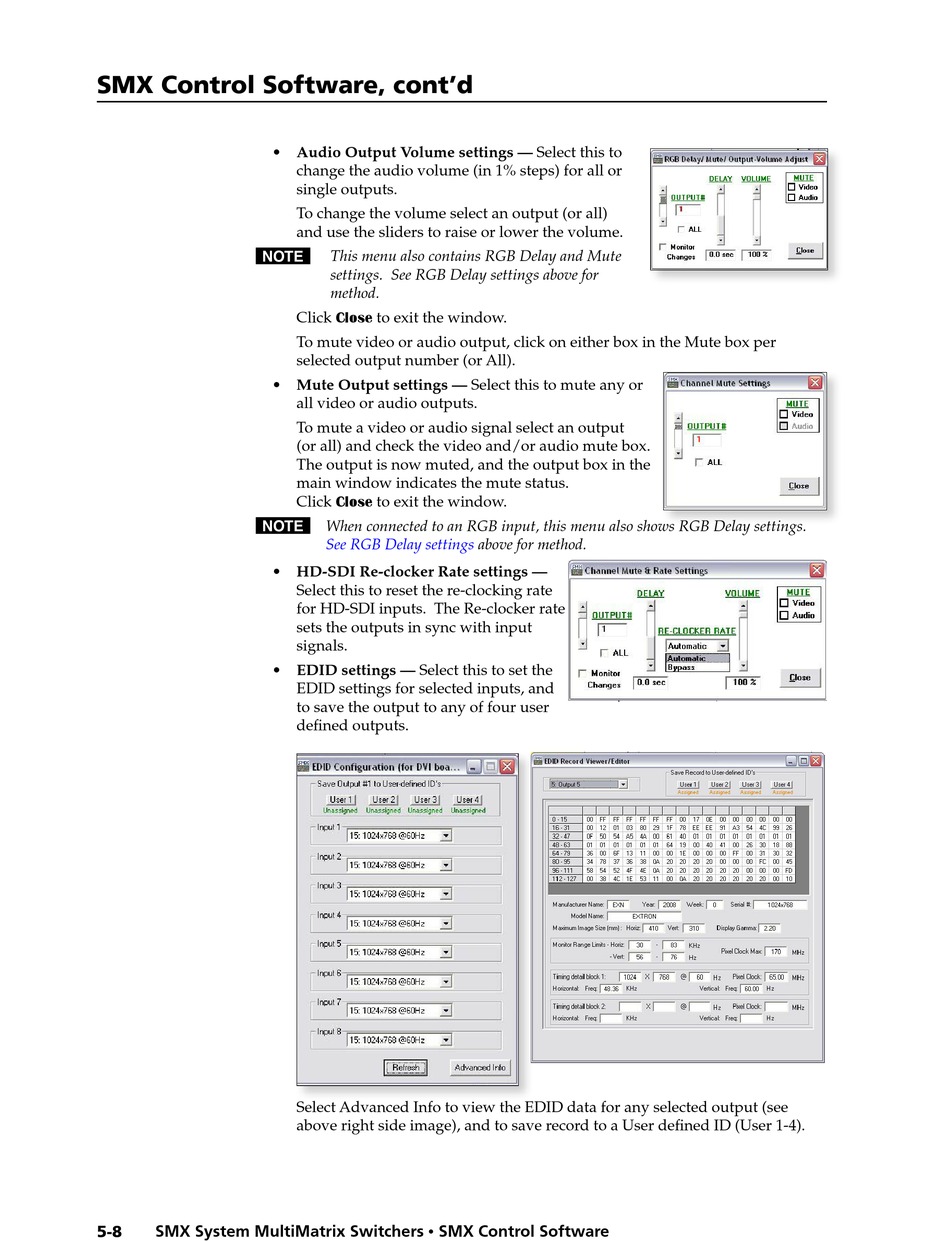

SMX Control Software, cont'd
• Audio Output Volume settings — Select this to
N
• Mute Output settings — Select this to mute any or
N When connected to an RGB input, this menu also shows RGB Delay settings.
• HD-SDI Re-clocker Rate settings —
• EDID settings — Select this to set the
SMX System MultiMatrix Switchers • SMX Control Software
5-8
change the audio volume (in 1% steps) for all or
single outputs.
To change the volume select an output (or all)
and use the sliders to raise or lower the volume.
This menu also contains RGB Delay and Mute
settings. See RGB Delay settings above for
method.
Click Close to exit the window.
To mute video or audio output, click on either box in the Mute box per
selected output number (or All).
all video or audio outputs.
To mute a video or audio signal select an output
(or all) and check the video and/or audio mute box.
The output is now muted, and the output box in the
main window indicates the mute status.
Click Close to exit the window.
See RGB Delay settings above for method.
Select this to reset the re-clocking rate
for HD-SDI inputs. The Re-clocker rate
sets the outputs in sync with input
signals.
EDID settings for selected inputs, and
to save the output to any of four user
defined outputs.
Select Advanced Info to view the EDID data for any selected output (see
above right side image), and to save record to a User defined ID (User 1-4).
