To remove ties

1. Select the desired plane from the drop down box.
2. In the signal type field, click Video only, Audio only, or Video & Audio
depending on the signal type to be removed.
3. Click the input/output button of the tie to be removed. The button changes
color and indicates a provisional tie with a letter "P" (see figure 6-13).
N If a video is removed from an video/audio tie, the button turns red (from amber).
If an audio tie is removed from an video/audio tie, the button turns green (from
amber).
If a single signal tie (video or audio) is removed, or a combined signal (when
the video & audio signal type button is highlighted), the button turns gray (see
figure 6-13, input #6, output #7, for example, video and audio tie provisionally
removed).
4. Click Take to make the tie. The screen refreshes, the letter "P" disappears
from the button and the SMX is updated, removing the selected tie.

To set input audio levels

1. In the Input Adjustments section, click in the desired input audio level field.
A drop down value list (+24 to -18 dB) appears (see figure 6-14, input 4).

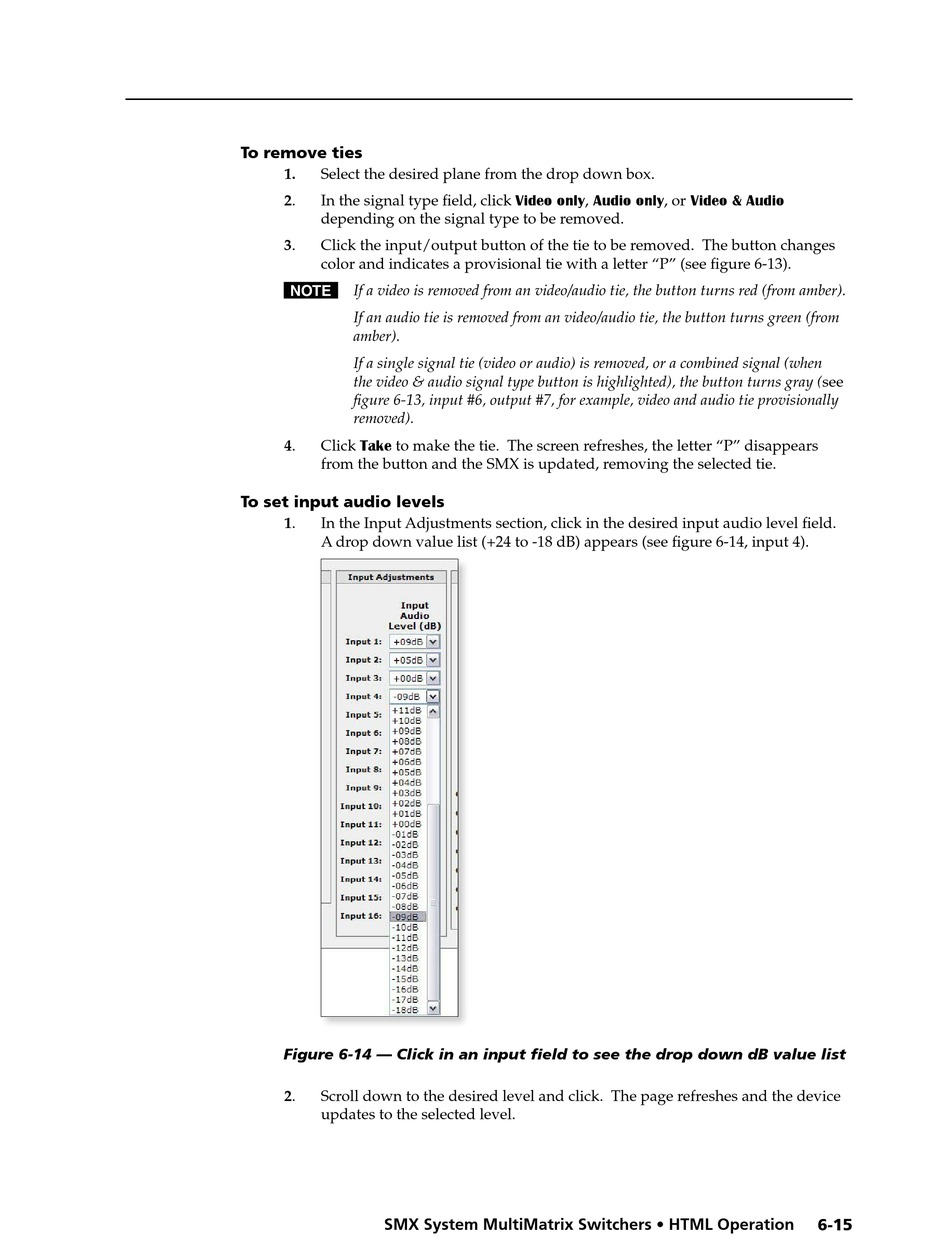

Figure 6-14 — Click in an input field to see the drop down dB value list
2. Scroll down to the desired level and click. The page refreshes and the device
updates to the selected level.
SMX System MultiMatrix Switchers • HTML Operation 6-15
